Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > 1.8m Eco Solvent Printer ,printing Machine for Banner ,vinyl, Sticker,poster

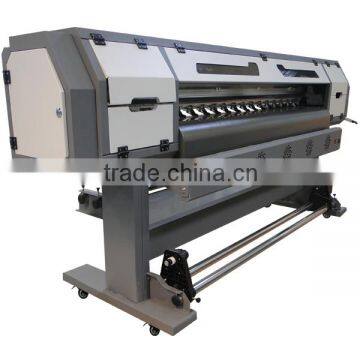

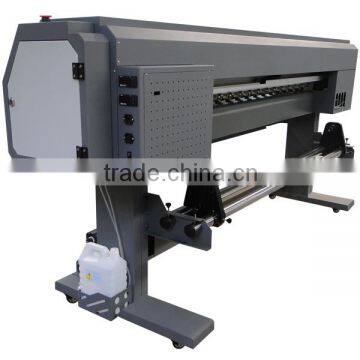

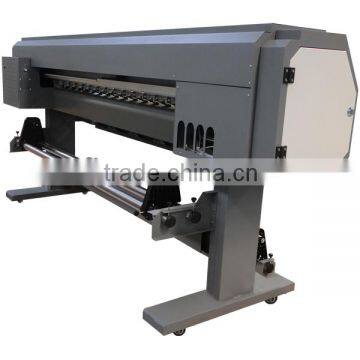

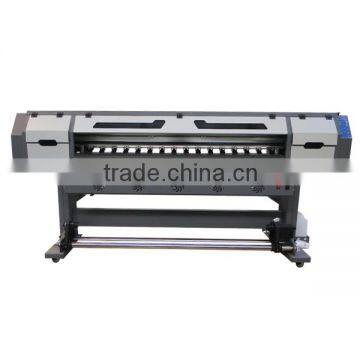

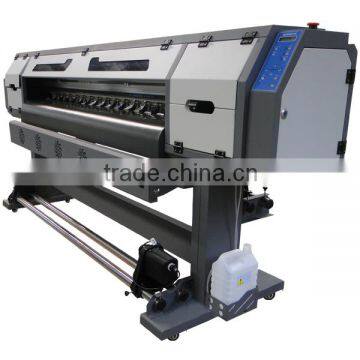

1.8m Eco Solvent Printer ,printing Machine for Banner ,vinyl, Sticker,poster

US$ 5,200 - 5,600 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Other, Eco solvent Inkjet printer

Place of Origin:

Shanghai, China

Shanghai WER-China Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, Eco solvent Inkjet printer

Place of Origin Shanghai, China

Brand Name WER

Model Number WER-ES1802

Usage Other, indoor and outdoor advertising printer

Automatic Grade Automatic

Voltage 110V/220V

Gross Power 1800 W

Dimensions(L*W*H) 3000 * 900 * 1550 mm

Weight 350 KG

Certification CE, BV, SGS, ISO9001-2000

After-sales Service Provided Engineers available to service machinery overseas

1.8m eco solvent printer ,printing machine for banner ,vinyl, sticker,poster

Specificaion

Model		WER-ES1802
Print Technology		Drop-On-Demand Piezo electric Technology
Number of print-heads		2 pcs DX5
Nozzles		4 * 4 color ( CM Y K )
Ink type		Piezo Eco solvent ink
Ink supplying system		Auto sense ink supplying system
Intelligent monitoring system		auto detecting system while lacking ink
Heating & drying	Heating system	For option
	Heating temperature	available: Normal temperature ~ 25°C suggest temperature: 30°C ~ 40°C
	Drying system	For option
Media accetpable		Flex Banner, mesh, PVC vinyl, eco solvent based photo paper, PP paper, backlit film, wall-paper, etc.
Print width max		1800 mm
Speed	Mass production mode	32 m2/h
	Quality mode	20 m2/h
	Ultra quality mode	15 m2/h
Print-head cleaning system		Automatic cleaning & auto capping system
Interface		USB
RIP Software		Ultra, Photoprint & Maintop
Power supply		Ac 220V 50/60 Hz
Environment		Temperature: 20°C~32°C; Humidity: 40%~60%
N.W.		300KGS
G.W.		350KGS
Machine dimension		2700 mm * 800 mm * 1250 mm
Packing dimension		3000 mm * 900 mm * 1550 mm

Products Details

	DX5 Printhead
	Instruction: DX5 Resolution: 1440DPI
	Color: 4 colors
	Print mode: 4, 6, 8, 12 Pass
	Notes:
	A: Operators need to make antistatic treatment, please wear the Anti-static devices if permission, to prevent the high static load from burning the circuit board inside print head.
	B: During installation, try not to directly touch the surface of print head.

Eco solvent printer main board
Introduction: DX5 and DX7 eco solvent printer main board.
Usage: Send printing data signal, control the operations of main parts.
Notes:
A: Resist dirt and moisture for the main board.
B: Turn off the power when check the main board. Mark the plug signal line and supply line to avoid connection mistake which can burnout the main board.
C: Please do not break or weld the spare parts on the main board personally.

	Eco solvent printer print head board
	Introduction:
	DX5 and DX7 eco solvent printer print head board.
	Usage: Receive printing data signal and control inkjet and voltage of the print head.
	Notes:
	A:Resist dirt and moisture for the print head board.
	B: The print head cable must be inserted into the right place; otherwise it may burnout the print head.
	C: Please do not weld or dismount any spare part on the print head board personally.

Sheet feeder
Introduction: Auto-feed, keep the material tension balance, make the material pass through the print platform smoothly and do nice printing work.
Notes:
A:. When printing materials, rigidly fix the material and sheet feeder shelf.
B: Try to put the material in middle of the platform, make the material get equal force by the roller, so it can pass through the print platform smoothly.
C:Keep a clean and tidy environment surrounding the sheet feeder; do not interfere with the feeding process.

	Ink cartridge
	Introduction: 2 Liter ink cartridge, provide the ink continuously which is very convenient. Ink color is clear, so it is not easy to add the wrong color ink.
	Notes:
	A: Make sure each color ink to the corresponding ink cartridge.
	B: It is enough when the ink reaches 3/4 of the cartridge.
	C: Be careful not to dirty machine and ground when add ink; seal the lid on time after add ink.

Suction and heating device
Introduction: Automatic suction when printing which can make the print materials adsorb to the platform better, so the heater can heat and dry the printed material more evenly.
Notes:
A: Keep the suction plate clean and tidy.
B: Adjust the suction strength before printing, as well as proper heating temperature.
C: Do not touch the heating plate when printing.
