2016 hot selling WER FR3210UV large format uv printer for glass printing
- 30 Set / Sets per Month
- Shanghai
- T/T Credit Card
- 2500A cardboard box printing machinery equipment Corrugated cardboard honeycomb cardboard kraft cardboard color inkjet printer
- Top Selling KINGT 1016 Small Flatbed UV Printer For Acrylic KT-board Advertisement sign board printing machine
- Super Discounts KINGT 2513G5 250*130 cm Large Format UV Flatbed Printer Machine Manufacturer Supplier
- OMAJIC digital uv 6090 inkjet printing machine for pen bottle phone case A1 small flatbed inkjet printers
- L1800 DTF Printer Machine
- Wholesale China Printer Black and white multi-function machine N510
Product Details
Condition: | New | Plate Type: | Flatbed Printer | Place of Origin: | Shanghai, China |
Brand Name: | WER | Model Number: | WER FR3210UV | Usage: | Other, hybrid uv printer |
Automatic Grade: | Automatic | Voltage: | 220V(10%)>20A | Gross Power: | 3000W |
Dimensions(L*W*H): | 5.7 m * 2.9 m * 1.8 m | Weight: | 3950 KG | Certification: | CE, EMC, LVD |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

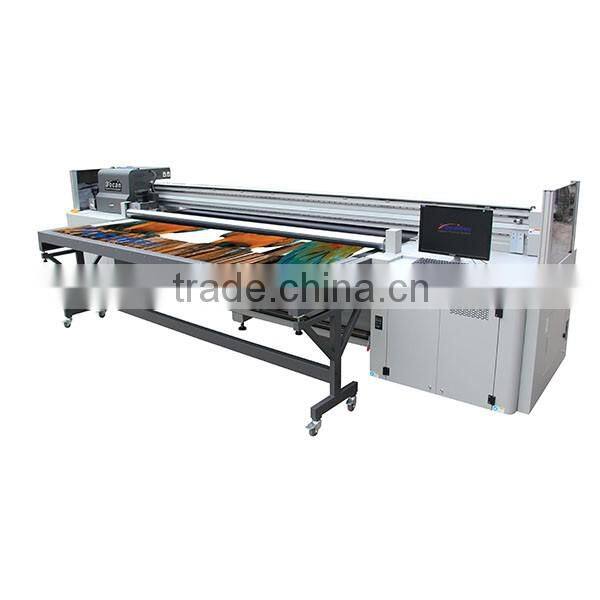

2016 hot selling WER FR3210UV large format uv printer for glass printing
2.5m hybrid uv printer large format uv led flatbed printer

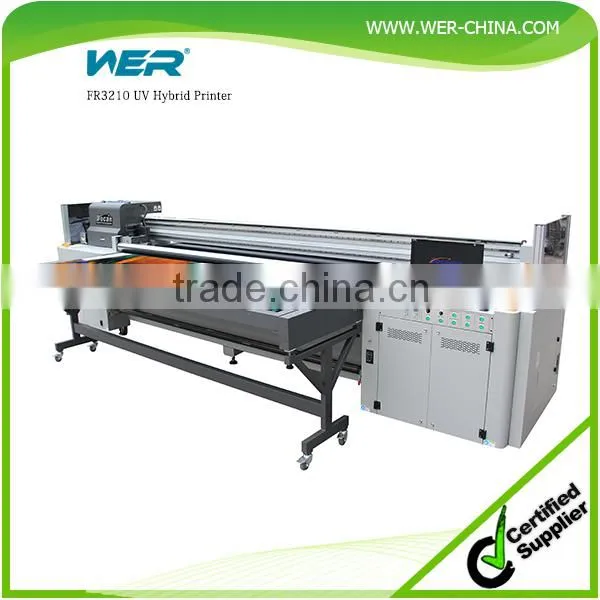

UV Hybrid Printer Model No. FR3210
This machine is our UV Hybrid Printer. Its printing width is 3.2m. With the extension tables at the back and front, it can print unlimited length for the Rigid materials. Using the UV ink it can print excellent images on various rigid medias, such as glass, acrylic, wood, PVC foam board, KT board, MDF, alunimum, cellphone case, ceramic tiles, and flexbile materials like banners, vinyl, mesh, and so on. . Also, it offers various ways of printing the white color. It can print the three-layer spot colors which means it can print color-white-color at one time!
The printheads can be KM-512MH-14PL, KM-1024MHB-14PL, KM-1024iMEH-13PL or Ricoh Gen5 7PL. The printing colors can be Lc Lm Y M C K, and White is optional!
features
High resolution and high-quality piezo electric printhead can achieve excellent production performance and vivid bright colors
4 color printing: YMCK
5 color printing: YMCK+W or YMCK WW
6 color printing: Lc Lm Y M C K
7 color printing: Lc Lm Y M C K W or Lc Lm Y M C K W W
8 color printing: Lc Lm Y M CK W V
Excluding the use of VOC (Volatile Organic Compounds) in the UV curable ink. The ink is environmental friendly and no smell
Combines sheet-to-sheet with roll-to-roll printing function
Max media width is 3.2m
Vacuum belt table for accurate feeding and convey of rigid and flex material
Retractable linear alignment bar for rigid media
Automatic rotary motor can achieve optimal tension distributing
Drawer-type UV lamp cassette makes it easy to replace the UV lamp
With advanced Automatic Height Detector which can detect the material thickness and find a good height position for best quality printing
Carriage is with a crash sensor with high sensitivity to ensure that the printhead will not be accidentally damaged
The white ink catridge is with the automatic stiring and circulation system, which avoids the clog of the White printhead.
Easy operation menu. User-friendly
General Information | |||
Model | WER FR3210 | ||
Catagory | UV Hybrid Printer | ||
Printing Size | 3.2m x unlimited | ||
Printing | |||
Print Technology | drop-on-demand piezo electric inkjet | ||
Printhead | KM-512MH-14PL/KM-1024MHB-14PL/Ricoh Gen5 7PL | ||
Printhead Control | Printhead temperature and voltage are adjustable in software | ||
Ink Type | UV curable Ink | ||
Ink Reservoir | Refillable on the fly while printing/2000ml | ||
Rip Software | Photo Print/ONYX/Caldera | ||
Color Management | ICC based color, curves adjustment, density adjustment | ||
File Format | Tiff, Jpeg, Pstscript, eps, pdf | ||
Media Thickness | 1-60mm | ||
Printhead QTY | KM-512MH-14PL | KM-1024MHB-14PL | Ricoh Gen5 |
4-8pcs | 4-16pcs | 4pcs/8pcs | |
Resolution | KM-512MH-14PL/KM-1024MHB-14PL | Ricoh Gen5 | |
720 x 720 dpi | 600 x 600 dpi | ||
720 x 1080 dpi | 600 x 900 dpi | ||
720 x 1440 dpi | |||
Printing Speed | KM-1024MHB-14PL | Ricoh Gen5 | |
4 pass 28 sqm per hour | 4 pass 40 sqm per hour | ||
6 pass 19 sqm per hour | 6 pass 28 sqm per hour | ||
8 pass 15 sqm per hour | |||
Print Colors | 4 colors (CMYK), 6 colors (Lc Lm CMYK), White/Varnish optional | ||
Drying System | UV Lamp with three power levels | ||
Medias | |||
Rigid materials: glass, acrylic, PVC foam board, KT board, Wood, WPC, Metal panels,ceramic tiles, MDF, etc. | |||
Outdoor Life of finished printing | |||
3 years (use WER ink) | |||
Dimensions and Weight | |||
Dimensions | 5.65 x 2.89 x 1.81m | ||
Weight | 3950kg | ||
Operation | |||
Power Supply | 50/60Hz 220V(10%)>30A | ||
Operation Environment | 20°C to 28°C | ||
Humidity | 40% to 60% | ||
Warranty | |||
one year |
