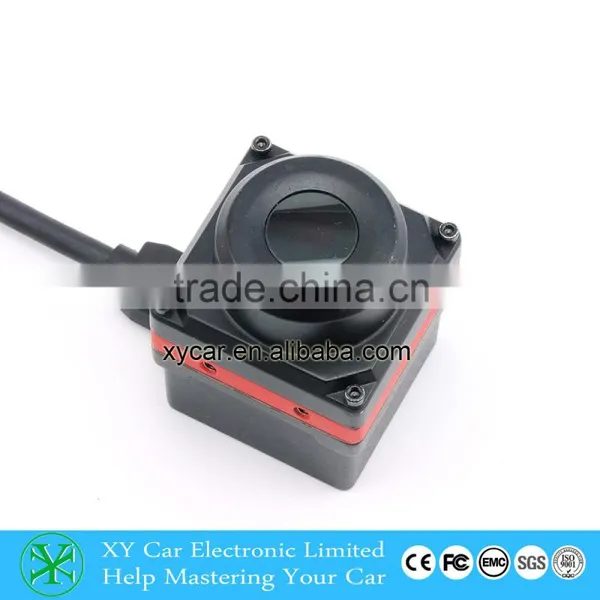

Universal thermal ir camera ,thermal imaging camera XY-IR312

Ture infrared thermal image car camera night vision XY-IR312

FOV: 36° X 27°    size of camera: 82.8mm X 62mm X 100.5mm   Lens 14.8mm   7V~36V DC

Features:

The car IR aid camera's visual range is up to 5 times of the range of standard headlights.
Enables the driver to recognize pedestrians, animals and objects ahead in darkness, smoke, fog, rain and snow
Allows more time to react to any potential dangers

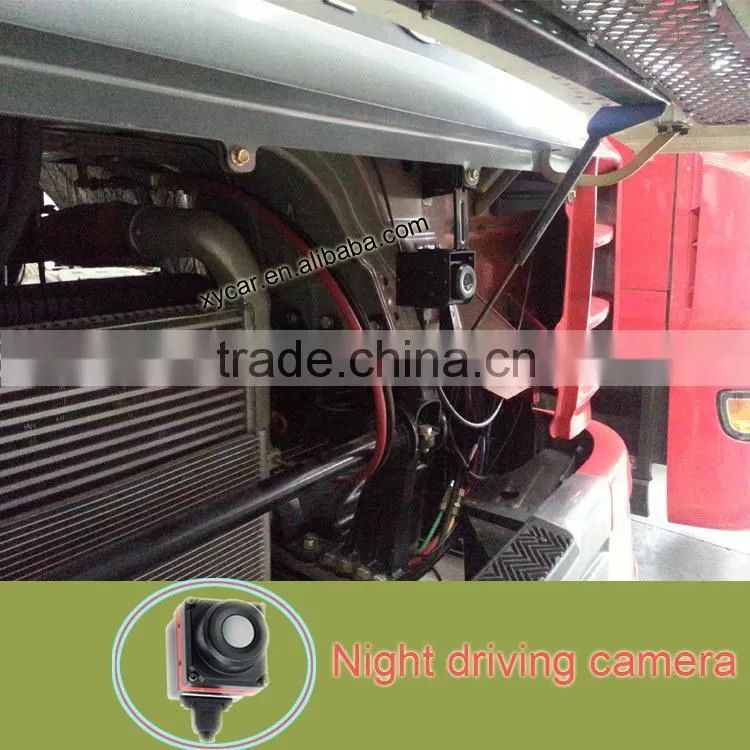

Convenient installation

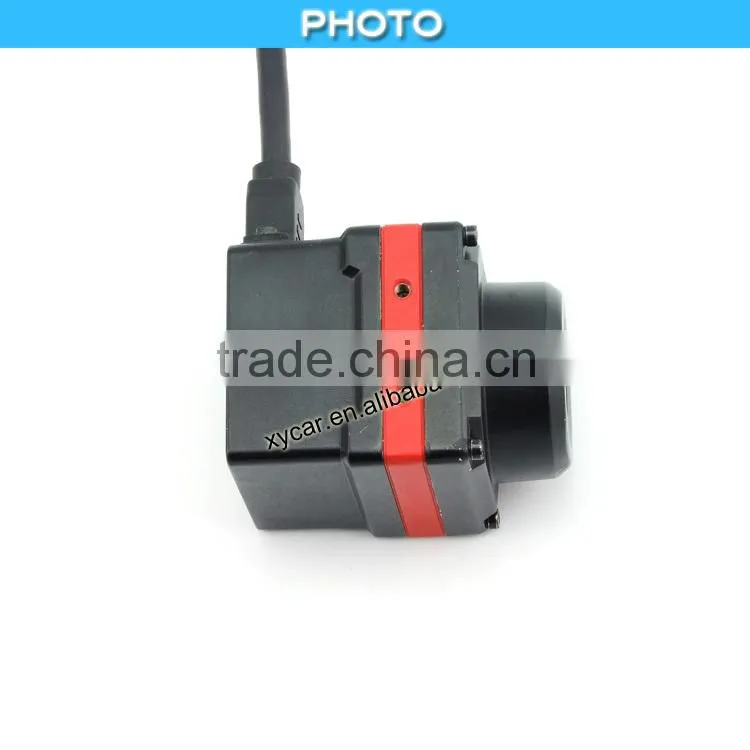

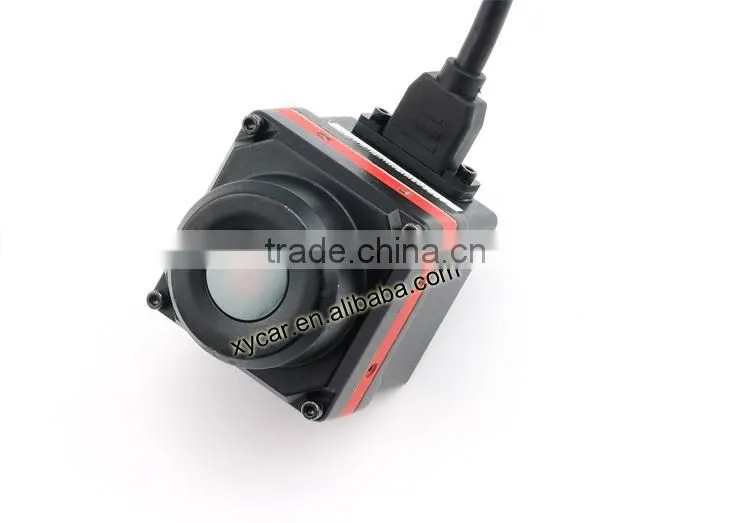

Compact profile

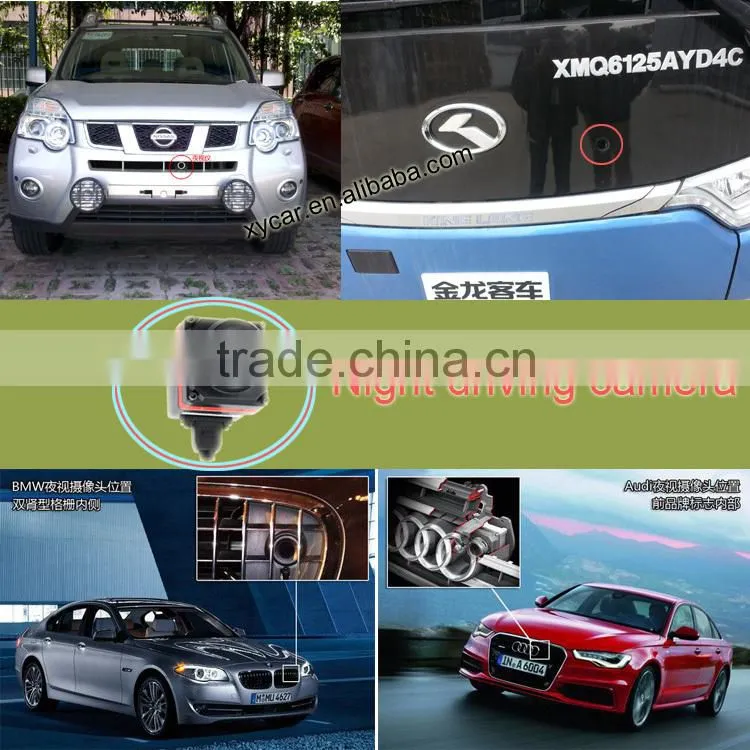

Multiple application: Security and vehicle, including military vehicles and aftermarket commercial vehicles

Camera specification
Detector Type :384X288 Asi Microbolometer
Spectral :Range 8~14um
Optical Lens :14.8 mm /F#0.96
FOV :36° X27°
IFOV :1.7 mrad
NETD :100mk@25℃
MRTD :500mk@25℃

Image presentation
Video Output :40HZ PAL or 30HZ NTSC
Adjust :Auto brightness and contrast adjustment
Image calibration: Auto calibration without shutter
Image recognition :auto pedestrian recognition
Alarm :auto

System performance
start up time :8-s
Defroster
    ≤2℃ :activate defroster automatically
    @-30℃ :deice 1mm ice within 15m
    ≥7℃ :close defroster automatically
Power
    External DC adapter :7V~36V DC
Power dissipation
    ≤3.5W
    ≤1.4W :without alarm function

Interfaces
Command and Control :RS232

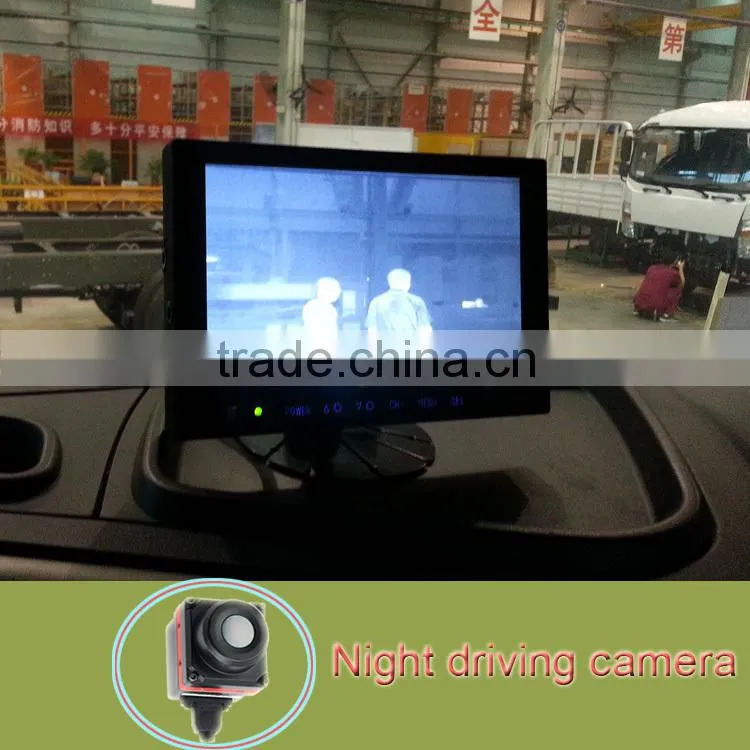

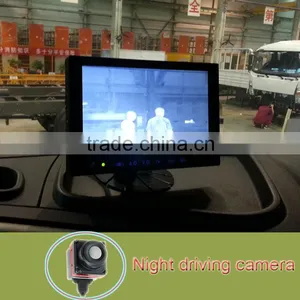

Image display :Real time on PC or indicated monitor

Environmental
Operating Temperature :-40 deg to 70deg
Storage temperature :-45 deg to 80deg
Dust protection: MIL-std810
Rating :IP67

Physical
Weight (including lens) :≤1kg
Size :84mm X 63mm X 101mm

We are the professional car camera system supplier with 9 years car camera system experience, and offered excellent OEM ODM service to world wide well know famous brands.

Please send your details request for cameras (image sensor model,lens angle,mirror/normal image,with moving parking guide lines,with 180/360 degree bird view recording,with/without parking line,connector type,wire length,with DVR, with dynamic moving parking line,with distance sensor,Front/Rear Speically OEM stype camera...) and we could offer the best solutions.

With strict material and producing quality control,we offer 1 year warranty

and less than 0.3% faulty rate production to our customers.
