4 channels HD 360 view car camera video splitter Preview and Recording cctv dvr XY-6029MDVR
First of all, thank you very much for using our parking system!
Quad intelligent parking system for your car blind spot image perspective, for your safe driving escort. Enjoy driving, driving without a blind spot to experience the feeling of no dead ends.
This high-end car parking system combined with the owners driving habits developed a cost-effective automotive safety products more suited to the owners use.
This parking system is based on road conditions the driver's operating habits, manual and automatic control of the video analysis is displayed.
<Safety Tips>
1. This product is only driving assistance system, you concentrate on safe driving.
2. Before using this product, please read the detailed instructions.
3. car in the fast driving, the proposed closure of this product, concentrating observe road conditions.
4. Please consciously abide by traffic laws and regulations relevant to the country.
<The role and function of parking system>
Quad intelligent parking system installation does not destroy the original car circuit, will not affect the safety car circuit, does not affect the vehicle warranty 4S shop situation.
This product has a front, left side, as the right side, rear four functions, the driver can according to the required driving environment, monitoring the situation around the car; two with automatic and manual control mode, when the factory default automatic mod
Description
(1) Power Led, Power, the lights lit, when the voltage is lower than 9v, the power light flashes; when the system enters standby mode, the power light flashes. This product is the normal input voltage of 12 / 24V.
(2) trigger line and manual keys can select the image in any way 4-way camera
(3)In Trigger state, hand the keys effectively. When you press the manual key "Quad" of or button, the trigger is invalid, Undo "QUAD" trigger to be effective
(4) After triggering undo, image delay three seconds, and enters the standby state.
(5) the trigger condition, no priority, when the trigger line when more than two trigger, then the trigger line corresponding channel full-screen image, only three seconds, and then jumps automatically split image screen.
(6) can connect up to four cameras, and automatically split video screen
(7) car camera powered by the device for easy wiring
(8) DVD display device triggered by a switch, wiring and display convenience
(9) Each image can be set to forward / mirroring respectively, RCA connectors can be configured to connect DVR / VCD
Ⅱ.the screen mode

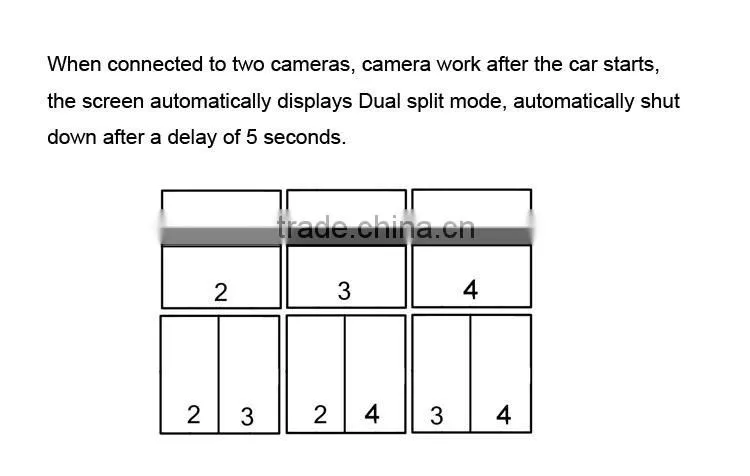

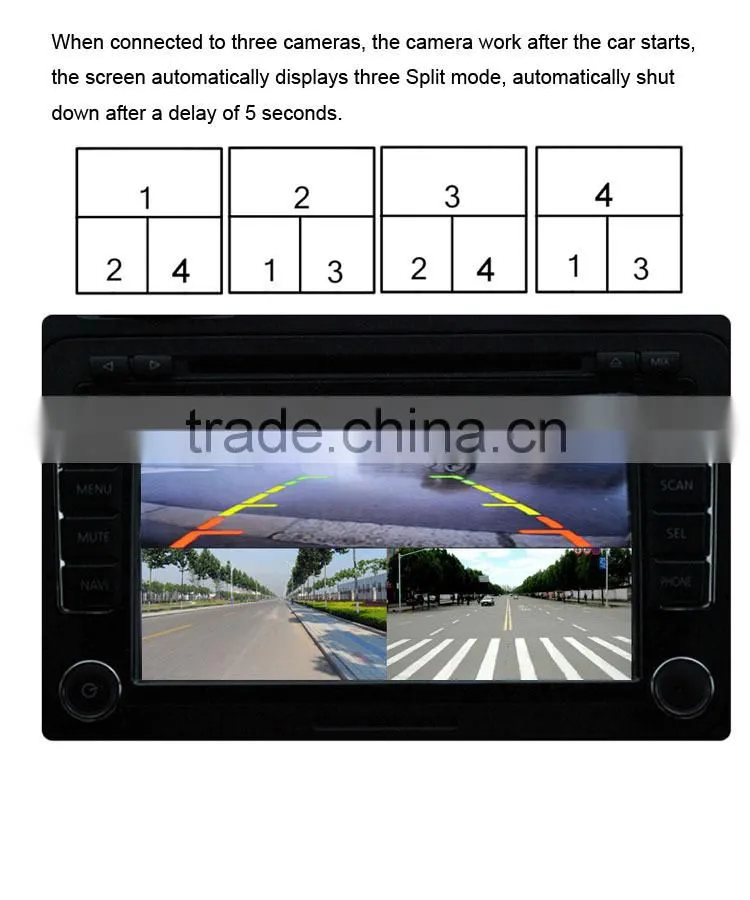

Auto Mode introduces :( numbers represent the corresponding camera channel number, the channel number is not shown)

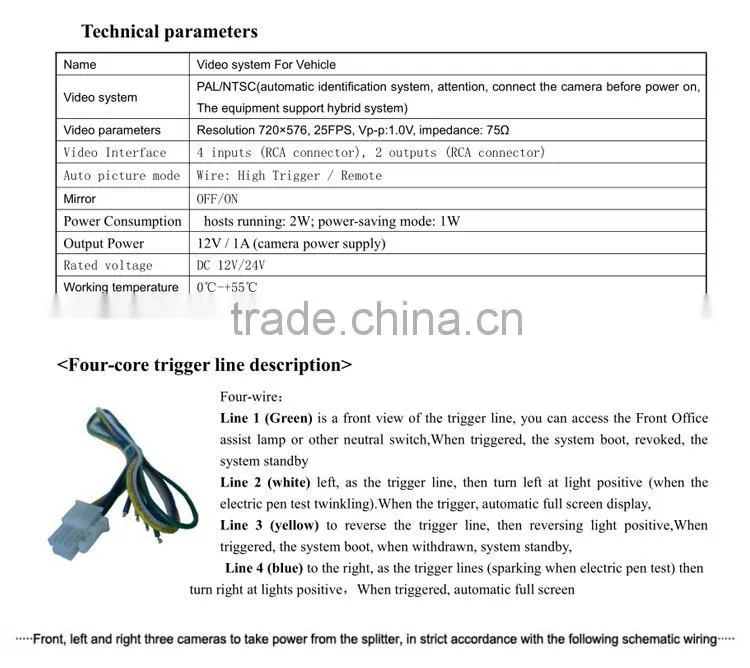

Specific
Name |
Video system For Vehicle |
Video system |
PAL/NTSC(automatic identification system, attention, connect the camera before power on, The equipment support hybrid system) |
Video parameters |
Resolution 720×576, 25FPS, Vp-p:1.0V, impedance: 75Ω |
Video Interface |
4 inputs (RCA connector), 2 outputs (RCA connector) |
Auto picture mode |
Wire: High Trigger / Remote |
Mirror |
OFF/ON |
Power Consumption |
hosts running: 2W; power-saving mode: 1W |
Output Power |
12V / 1A (camera power supply) |
Rated voltage |
DC 12V/24V |
Working temperature |
0℃-+55℃ |
N.W. |
150g |
Size |
91*53*23mm (L * W * H) |
Please send your details request such as (number of cameras,with split image,with manual switch,with 360 bird view,with moving guide lines,with dvr recording...)
And then we could offer you the best solutions.
With strict material and producing quality control,we offer 1 year warranty and less than 0.3% faulty rate production to our customers.
Welcomes All Customers Vistor Our Factory and Happy to do Business with all overseas
Note:We have strict producing process, aging test and QC to make sure high quality production.
We have established systematic production standard in waterproof,shockproof,temperature resistance,
humidity resistance,high definition.
competitive advantage
1.Stable quality (CE FCC ROHS)
2.Most competitive price
3.On time delivery
4.Good aftersales service
5.All products must test one by one wartproof resistance and high/low temperature resistance
6.Warranty:16months
7.OEM,ODM welcome
Guangzhou X&Y Electronics Co., Ltd. was established in Guangzhou in 2005. We are a hi-tech enterprise engaged in the R&D, production, and sale of car camera system,car DVR camera.We guarantee punctual delivery, competitive price and prompt response. We welcome your inquiries and look forward to establishing long-term business relationships with you in the near future.
