NSF Certified Biosafey Cabinet (4')

NSF Certified Biosafey Cabinet (4') thumbnail-1
NSF Certified Biosafey Cabinet (4') photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BIOBASE
Model Number:
11228BBC86
Contact Supplier Request Quote Chat Now
Zhangqiu Meihua International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name BIOBASE
Model Number 11228BBC86

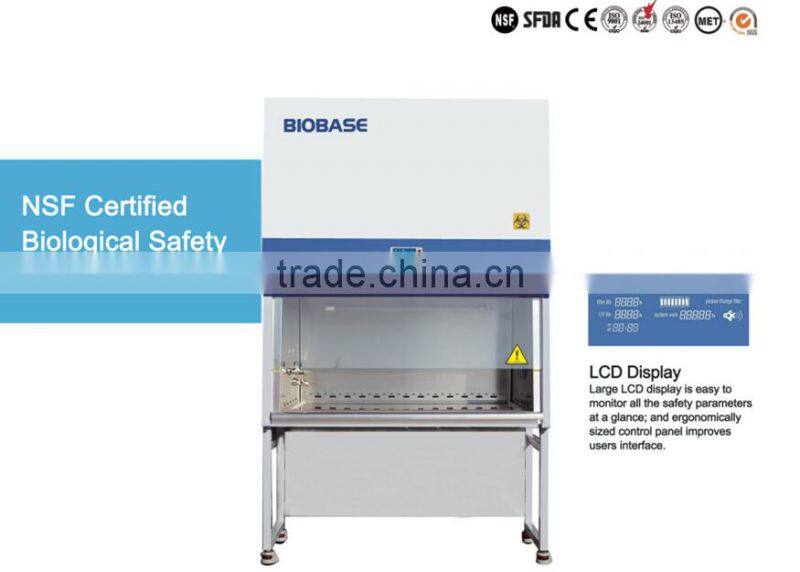

                            NSF Certified Biosafety Cabinet

Technical parameters



 NSF Certified Biosafey Cabinet (4')

NSF Certified Biosafey Cabinet (4')

Models

11235BBC86 ( 3')

11228BBC86 ( 4')

11236BBC86 ( 6')

External Size(Upper Body)
(W x D x H)

1100x740x2380mm

43.3''x29.1''x93.7''

1421x850x2180mm

55.9''x33.4''x85.8''

1886×750×2335

74.3''x29.5''x91.9''

 Internal Size
(W x D x H)

914x600x610mm

36''x23.6''x24''

1220x665x650mm

48''x26.1''x25.6''

1700x600x610mm

66.9''x23.6''x24''

Base stand

adjustable height, range:630mm-845mm

Max Opening

 450mm

Tested Opening

Safety height≤200mm ( 8'')

Average Airflow
Velocity

inflow:  0.53±0.025 m/s (105 fpm)
downflow:0.35±0.025 m/s (70 fpm)

Airflow Volume

inflow

     349 m3 / h (205 cfm)
61%:550 m3 / h (323 cfm)
39% :349 m3 / h (205 cfm)

465 m3 / h (275 cfm)

67%:956 m3 / h (571 cfm)
33% :465 m3 / h (275 cfm)

649 m3 / h (382 cfm)

61%:1006 m3 / h (592 cfm)
39% :649 m3 / h (382 cfm)

downflow

exhaust

HEPA Filter

Efficiency >99.999% for particle size at 0.3 microns

Noise

NSF 49≤61 dB/EN 12469≤58 dB

Fluorescent Lamp Intensity

≥850Lux

Material

working area: 304stainless steel and outside Decorative plate

Frame :cold-rolled steel with anti-bacteria powder coating

Motor

one ECM motor

speed adjustable, high efficiency and low consumption, 110V & 220V acceptable

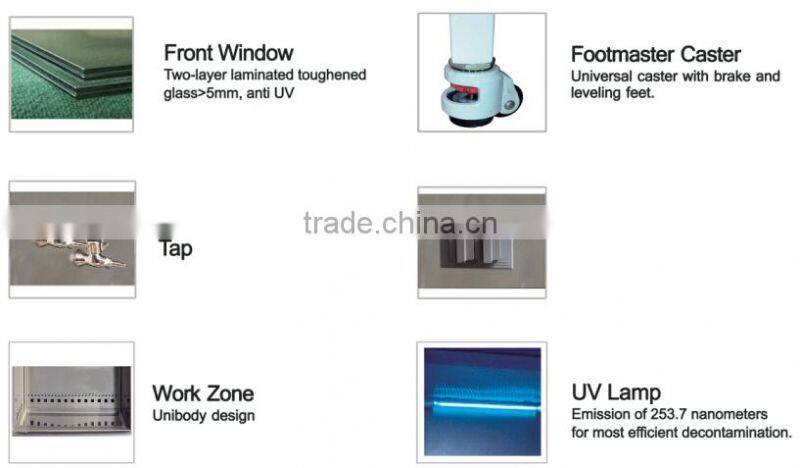

Glass Window

manual

motor control

manual

Display

LCD

VFD

LCD

UV

30W germicidal UV lamp

emission of 253.7 nanometers for most efficient decontamination

waterproof  Socket

2 , total consumption 500W(Max)

Tap

Air tap*1; Water tap*1

Filter Guard Type

Aluminium Alloy

Ground resistance

< 0.10 Ω

Consumption

 260w

 400w

 300w

Electrical

AC220V/110V,50Hz/60HZ,

Full load Amps:9A, BTU/Hr. 1689

AC110V,60HZ,

Full load Amps:9A,

BTU/Hr. 1689

AC220V-110V,50Hz/60HZ,

Full load Amps:9A, BTU/Hr. 1689

Standard Accessory

one spare UV lamp, 5m Power cord, fuse tube(six),power key

package size (W*D*H )

1250x915x1890(mm)

1600x1050x1870mm

2040x915x1920(mm)

Gross weight(kg)

280

330

380



Company Information



BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.



The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer. BIOBASE group invests in science and technology research, aim to keep impoving products performance and quality as well as develop new products to meet customers wide requirement. We satisfy our customers by offering comprehensive support, purchase convenience and we are ready to serves more and more BIOBASE users.

BIOBASE group, serving global distributors and its loyal end users, is becoming one of the most important scientific services supplier







NSF Certified Biosafey Cabinet (4')

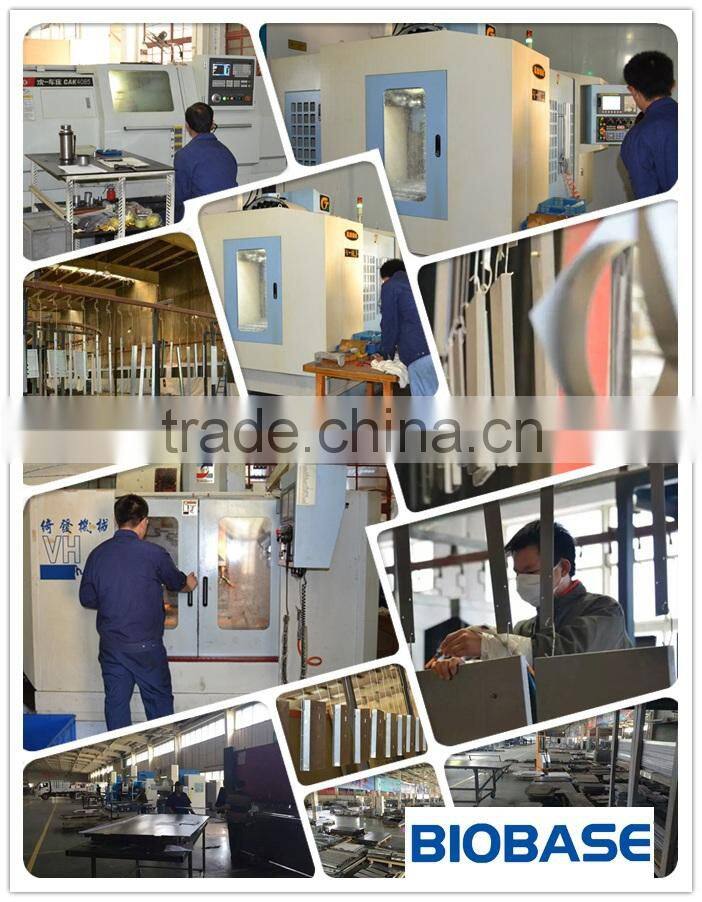

Production Line

 NSF Certified Biosafey Cabinet (4')NSF Certified Biosafey Cabinet (4')



Exhibitions

 NSF Certified Biosafey Cabinet (4')NSF Certified Biosafey Cabinet (4')
