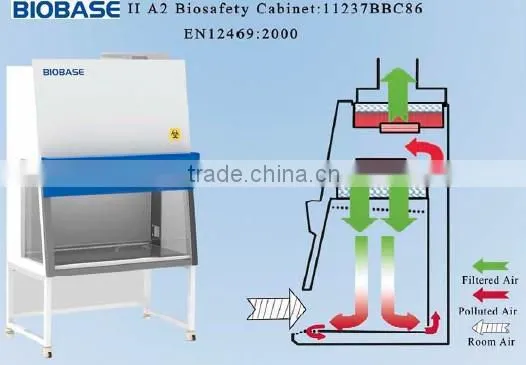

EN Certificated biosafety cabinet
Class II biological safety cabinets deliver maximum safety, comfort and convenience. Featuring an advanced design for easy operation and maximum safety, cabinets could be used wherever protection is of paramount importance in safety levels 1 to 3, including research, pharmaceutical quality control labs, pharmacies, clinics and hospitals.
The hinged front window can be fully opened for easy and thorough cleaning of the unobstructed rear wall and all interior surfaces.
The transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.
Air exhaust collar enables the safety cabinet to be connected either to a simple exhaust air outlet into the op¬ En or to an on-site exhaust air system.
Powerful UV-irradiation at the back side of the work area illuminates the entire working area without causing shadows. This ensures thorough disinfection of the complete chamber for maximum sample protection.
Remote control for convenient operation and it is also good for preventing cross contamination.
Easy to read digital LCD display allows convenient "at a glance" monitoring of safety parameters and ergonomically sized control panel improve user interface.
When fully loweredthe sash seals automatically against a closed-cell peripheral gasket to isolatethe interior and prevent escape of contaminants during decontamination.
The front sash ismotorized for convenient, one-hand operation. The sash control is mounted onthe front control panel.
EN Certified Biological Safety Cabinet--Biobase Meihua, the most professional laboratory and medical products supplier.
Model |
BSC-3FA2 (3') |
BSC-4FA2(4') |
|
External Size(W*D*H) |
1087*775*2265mm |
1383×775×2295mm |
|
Internal Size(W*D*H) |
910*600*660mm |
1210×660×660mm |
|
Work Surface Height |
750mm |
||
Max Opening |
550mm (22’’) |
||
Tested Opening |
Safety height 200mm (8’’) |
||
Airflow Volume |
Inflow |
349m3/h(205cfm) |
465m3/h(275cfm) |
Down flow |
64%:638m3/h(375cfm) |
64%:868m3/h(498cfm) |
|
Exhaust |
36%:359m3/h(211cfm) |
36%:488m3/h(287cfm) |
|
Front Window |
Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
||
HEPA Filter |
Two, 99.999% efficiency at 0.3um, filter life indicator |
||
Filter Guard Type |
Aluminum alloy frame |
||
Noise |
EN 12469≤60 dB |
||
Illumination |
≥1000Lux |
||
Display |
LCD Display |
||
Waterproof Socket |
2, Total consumption:≤500W |
||
Tap |
Water tap*1, Gas tap *1 |
||
Ground Resistance |
≤ 0.10Ω |
||
Power Supply |
AC230V, 50Hz , |
||
Consumption |
≤500W |
≤600W |
|
Alarm |
Abnormal airflow velocity; Filter change; Front Window over height |
||
Motor |
One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption |
||
Material |
Working area: 304stainless steel Frame and Decorative Plate: cold-rolled steelwith anti-bacteria power coating |
||
UV Lamp |
18W |
30W |
|
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | |||
Standard Accessory |
Fluorescent lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks,Remote control |
||
Optional Accessory |
Armrest, Airflow tester, Formalin fumigation sterilizer,Infrared sterilizer, Adjustable base stand, Remote control |
||
Package Size (W*D*H) |
1250*1080*1840mm |
1540*1080*1900mm |
|
Gross Weight |
270kg |
334kg |
|
