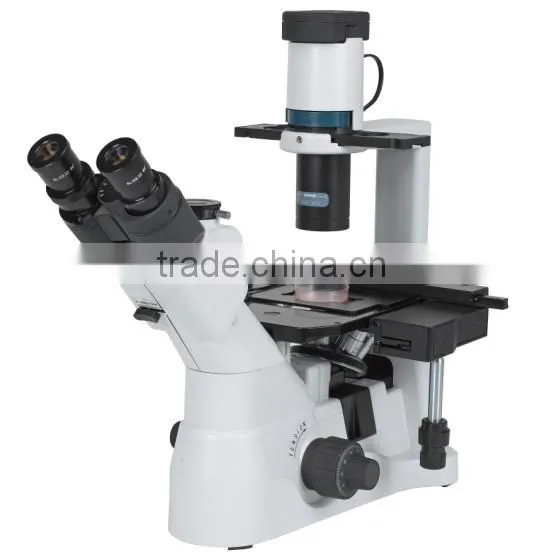

Trinocular Head InclinedInverted Microscope/High Point Extra Wide Field Eyepiece EW10X/22

Name: Trinocular Head InclinedInverted Microscope/High Point Extra Wide Field Eyepiece EW10X/22
Brand: Biobase
SKU: 134152415

Negotiable MOQ: 1 Carton (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Biobase

Theory:

Biological Microscope

Zhangqiu Meihua International Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Biobase

Theory Biological Microscope

Drawtube Trinocular

Parameters

Viewing Head	Trinocular Head Inclined at 30°,Interpupillary distance 48-75mm
Eyepiece	High point extra wide field eyepiece EW10X/22
Objective	Infinite plan objective 4X/0.1,WD18mm 10X/0.25,WD10mm 20X/0.4,WD5.1mm 40X/0.6,WD2.6mm Infinite plan phase objective PH10X/0.25,WD10mm PH20X/0.4,WD10mm PH40X/0.65,WD0.35mm
Nosepiece	Quintuple Nosepiece
Condenser	ELWD Condenser NA0.3,LWD72mm(150mm without condenser)
Centering	Centering Telescope (?30mm)
Phase Annulus	10X-20X,40X Pre-adjustable phase annulus plate 10X-20X,40X Adjustable phase annulus plate
Stage	Plain stage 160250mm Glass insert Attachable mechanical stage,X-Y coaxial control moving range 12078mm Auxiliary stage 70*180mm ?38mm Petri dish holder ?54mm Slide glass holder
Focusing	Coaxial coarse and fine adjustment,vertical objective movement Coarse stocke 37.7mm pet rotation,fine strok 0.2mm per rotation
Illumination	Halogen lamp 6V/30W
Filter	Diameter 45mm,Blue,Green,and frosted glass
Accessories	Inverted Fluorescent Attachment Video Adapter with C mount
Power Supply	110/220V,50/60Hz
Package Size	350250508mm(XSD-403),468397665mm(NIB-100)
Gross Weight	15Kg(XSD-403)(NIB-100)
