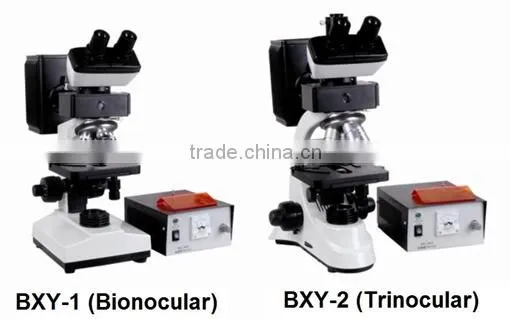

Fluorescence Microscope
BXY laboratory fluorescence microscope, designed for biomedicine cell detection, immunofluorescence analysis, cell culture observation, fluorescence in-situ hybridization (fish).
Specification
Model |
BXY-1 |
BXY-2 |
||
Viewing Head |
Compensation Binocular head 45° inclined |
Compensation Trinocular head 45° inclined |
** |
|
Interpupillary Distance 55-75mm |
° |
|||
Eyepiece |
Wide Field WF10X/18 eyepiece |
** |
||
P16X eyepiece |
** |
|||
Nosepiece |
Backward Quadruple Nosepiece |
** |
||
Backward Quintuple Nosepiece |
° |
|||
Objectives |
Achromatic Objective 10X, 20X, 40X(S), 100X (S, oil) |
** |
||
Semi- Plan Achromatic Objective 10X, 20X, 40X(S), 100X (S, oil) |
° |
|||
Plan Achromatic Objective 10X, 20X, 40X(S), 100X (S, oil) |
° |
|||
Infinite Plan Achromatic Objective 10X, 20X, 40X(S), 100X (S, oil) |
° |
|||
Stage |
Double Layers Mechanical Stage:140X140, Moving range:75X50mm |
** |
||
Condenser |
Abbe Condenser N.A.=1.25 With Iris Diaphragm and Filters |
** |
||
|
Focusing System |
Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving range:24mm |
** |
||
Collector |
High Brightness Collector |
** |
||
Kohler Illumination with Iris Diaphragm |
° |
|||
Illumination |
AC220V/110V, 6V20W, Halogen Lamp, Brightness Adjustable. |
** |
||
AC220V/110V, Super Light LED Lamp, Brightness Adjustable. |
° |
|||
Filters |
Green and Blue Filters |
° |
||
Fluorescent Attachment: | ||||
|
Fluorescent Illumination |
B(Blue), G(Green) Exciting Light Filter System, O ordinary Light System |
** |
||
U(Ultraviolet), V(Violet) Exciting Light Filter System, O ordinary Light System |
° |
|||
Illumination |
100W Ultra Hi-Voltage Spherical Mercury Lamp |
** |
||
Protect Barrier |
Barrier to Resist the Ultra Violet Light |
** |
||
Power Supplier |
Power Supplier AC110/220V, Digital Display and Timer |
** |
||
|
Fluorescent Free Objective |
10X 20X 40X 100X |
** |
||
Optional Parts |
High resolution COMS Digital Camera 5.0MP, 9.0MP with software |
° |
||
Note: ** Standard; ο Optional
