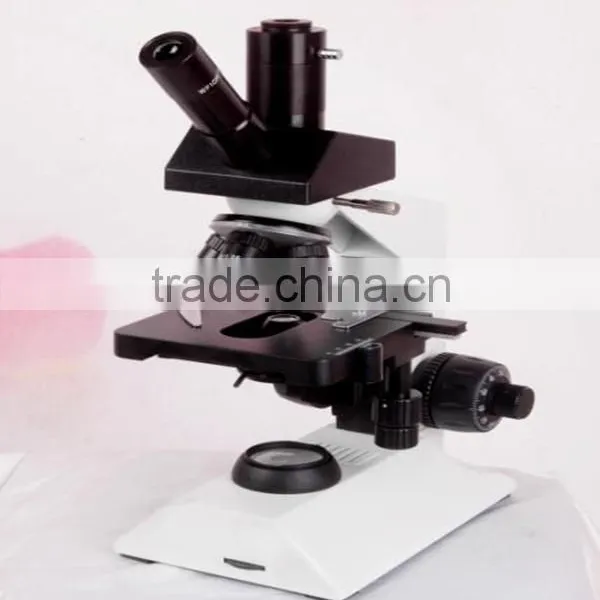

Digital Microscope--Biobase Meihua, the most professional laboratory and medical products supplier.
Specification |
Model |
||||||
BXTV-1 |
BXTV-1A |
BXTV-1B |
BXTV-1C |
BXTV-1D |
BXTV-1E |
||
Viewing Head |
Sliding Trinocular Head Inclined at 45° |
√ |
√ |
|
|
|
|
Compensation Free Trinocular Head inclined at 30° |
|
|
√ |
|
|
|
|
10’’LCD |
|
|
|
√ |
√ |
√ |
|
Nosepiece |
Ball Beating Quadruple Nosepiece |
√ |
√ |
√ |
√ |
√ |
√ |
Eyepiece |
WF10X/18mm |
√ |
√ |
√ |
√ |
√ |
√ |
Objective |
Achromatic 4X,10X,40X(S)100X(S,O) |
√ |
√ |
|
√ |
√ |
√ |
Plan Achromatic 4X,10X,40X(S)100X(S,O) |
|
|
√ |
Optional |
|||
Stage |
Double Layer Mechanical Stage 135*140mm |
√ |
√ |
√ |
√ |
√ |
√ |
Condenser |
ABBE NA1.25 condenser with Iris Diaphragm &filter,rack&pinion adjustable |
√ |
√ |
√ |
√ |
√ |
√ |
Illumination |
Build-in Illumination,Halogen lamp6V/20W,Power supply 90-230V |
√ |
√ |
√ |
√ |
√ |
√ |
Power supply |
110,220V/50,60Hz |
√ |
√ |
√ |
√ |
√ |
√ |
Package |
Cartoon with foam |
√ |
√ |
√ |
√ |
√ |
√ |
Package size |
250*360*460mm |
√ |
√ |
√ |
√ |
√ |
√ |
Gross weight |
8kg |
√ |
√ |
√ |
√ |
√ |
√ |
Optional Accessory |
Camera, Monitor |
√ |
√ |
√ |
√ |
√ |
√ |
Image Sensor |
1/3 SONY CCD |
Video Output |
BNC 1.0VP-P.75 |
Signal System |
PAL/NTSC |
Backlight Compensation |
OFF/ON |
Scanning frequency |
Horizontal:15.62KHz Vertical:50Hz |
Electronic Shuttle |
AUTO IRIS EE |
Horizontal Resolution |
480TV/520TV |
Camera Interface |
CS |
Min Illumination |
F1.2 0.5LUX 0.01 LUX |
Balance |
Auto |
Gain control |
Auto |
Power |
DC 12V |
48S/N Ratio |
50dB AGC |
|
|
