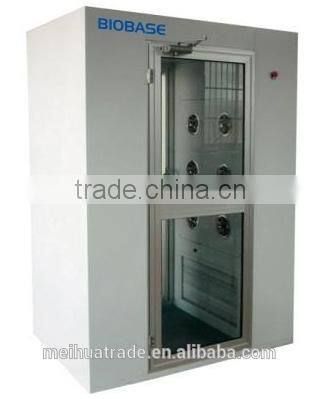

Biobase high quality stainless steel cleanroom air shower AS-2P2S

Specifications

Photoelectric sensor, automatic blowing;
HEPA Filter, Class 100 cleanness.

Biobase high quality stainless steel cleanroom air shower AS-2P2S





Air shower is a necessary passage for person entering clean room in order to minimized the amount of

particulate contaminant, achieve workplace strict clean purificationstandards. Personnel move through

the air shower while particulate contaminants are blew off by the clean high speed air.

So the duct cannot be brought into clean area.



Features:

1. Photoelectric sensor, automatic blowing.
2. Designed with circulation wind to ensure the cleanness of shower area under non-shower status.
3. Double doors with electric interlock.
4. LED display with adjustable blowing time (0-99 min).
5. HEPA Filter, Class 100 cleanness.

Model	AS-1P1S	AS-1P2S	AS-2P2S
External Size(W*D*H)	1300*1000*2050mm	1500*1000*2050mm	1500*2000*2050mm
Shower Area Size(W*D*H)	800*890*1930mm	800*890*1930mm	800*1890*1930mm
HEPA Filter	99.999% efficiency at 0.3 um
Spraying Wind Speed	25m/s
Air Shower Time	0-99 min (adjustable)
No.of SS Nozzles	12	16	18
Fluorescent Lamp	20W*1	20W*1	20W*2
Consumption	1000W	1500W	20000W
Cabinet Material (Optional)	Full cold-rolled steel with powder coating. Internal stainless stell,external with cold-rolled steel Full Stainless Steel.
Door Material (Optional)	Cold-rolled steel with powder coating. Stainless Steel
Chassis	Stainless Steel
Power Supply	110/220V,50/60Hz



Every year, we attend lots of exhibitions all over the world.

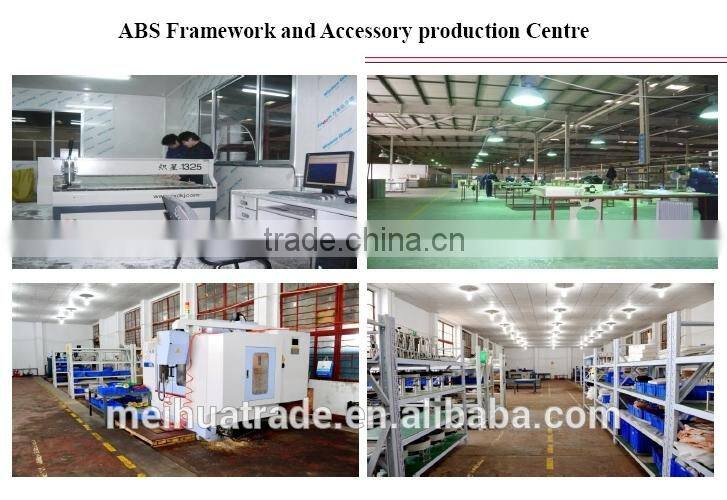

Our Industry park. Visiting are welcomed at any time.
