Corrugated Roll Forming Machine/Corrugated Roofing Sheet / Barrel Type Iron Sheet Making Machine
- TIANJIN
- T/T
You May Like
-
The Colored Glazed Steel 1100 Tile Roll Forming Machine For Steel Construction
-
Glazed Tile Steel Metal Beautiful Roof Tile Roll Forming Machine
-
Durable Look Beautifu The Colored Glazed Steel Tile Roll Forming Machine
-
Panel Glazed Tile Roof Cold Roll Forming Machine for Russia Steel Profile Making Machine Full Automatic
-
Corrugated Sheet Stone Coating Roof Tile Machine , Stone Coated Roof Tile , Stone Coating Line
-
CE Standard Round Downspout Roll Forming Machine Professional Rain Gutter Downspout Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | JBL | Model Number | roll forming machine | |
| Power(W) | 4+4KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 1660*700*2170MM | Weight | 3.2T | |
| Certification | CE/ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

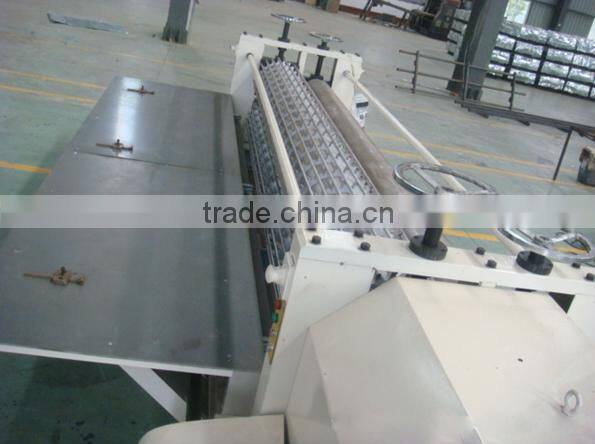

barrel type iron sheet making machine Corrugated Roll Forming Machine
Specifications
1.BARREL/DRUM TYPE/METAL SHEET CORRUGATION MACHINE
2.Max.Length 3660mm
3.Thickness 0.12-0.45mm
4.Max.width 1000mm
Length Of The Sheet : 2500mm/3000mm/3660mm. Max
Width Of The Sheet : 762/914 /1000mm
Thickness Range Of Sheet : 0.14mm To 0.45 mm
Material To Be Corrugated : Full Hard, Semi-Hard, Soft Galvanized Sheets, Alu-Zinc Alloy & Ppgi Sheet
Drive : 15kw, AC, For Type A 3 Phase
O.D. Of Corrugation Rolls : 380 mm (25 Rods, diameter 16mm)
O.D. Of Pinch Rolls : 317 Mm.
Corrugation Parameters : As Per 3316 To JIS-SGCH –1987.
Wt. Of The Machine : 8.5 Ton Approx .
Production Capacity : 1.5-18 Meter Per Minute.(One Sheet Once Time)
(A) AC. motor of power 15 kw.
(b) Corrugation machine is driven by an AC Motor
through a gear reduction drive train.
(C) Pinch roll assembly is driven by a chain & sprocket drive arrangement through both the corrugating rolls.
(D) A tension meter arrangement is fixed on the housing to tighten the chains. This arrangement is provided to avoid the slag in the chain due to screw down operation.
(E) A feed table is provided with gauge blocks to adjust the width of the sheets. This table is mounted on two brackets attached to the housing at both the sides. This table slides on an entry table.
(F) The movement of the feed table is achieved by the crank & levers. The crank is mounted on the bottom corrugating roll.
(G) An entry guide pipe is placed in between the entry table and the housing, for providing the entry of sheet into the corrugating rolls along the pass- line.
(H) An auxiliary table is placed between the corrugating roll assy. And the pinch toll assy. For the proper entry of the corrugated sheets into the pinch roll assy.
(I) An exit table is provided for removing the finished corrugated sheets.
(J) Screw down is for increasing/decreasing the number of crests formed on the sheets.
(K) A screw down is for adjusting the gap between the pinch roll assy.,for maintaining the proper flatness on the crests of the corrugated sheets &to obtain required width.
(L) Gears are provided at both the ends of top & bottom corrugation rolls to adjust & keep the crests in centre.
(M) Grouting of the machine is done by 9 foundation bolts of 22 mm dia & 1000 mm. Length.
| Name | Brand | |
| 1 | Motor | SIEMENS (Joint Venture in China) | |
| 2 | Speed reducer | Jiangsu Guomao | |
| 3 | PLC, Inverter | Danfoss MITSUBISHI | |
| 4 | Low voltage electrical appliances | Schneider |
For manufacturing of barrel type corrugation machine
Final product 18-76 corrugated roof produced with the machine should have the following parameters
Thickness of base Metal (mm) | Breadth (width after corrugation) | Length | Corrugation depth | Corrugation Pitch | ||||
| Nominal (mm) | Tolerance (mm) | Nominal (mm) | Tolerance (mm) | Nominal (mm) | Tolerance (mm) | Nominal (mm) | Tolerance (mm) | |
| 0.12-0.45 | 762/914/1000 | +25 -10 | Max. 3660 | + 20 -0 | 18 | ± 1.5 | 76 | ± 2 |
