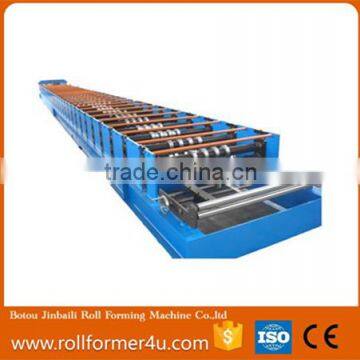

steel metal floor deck roll forming machine

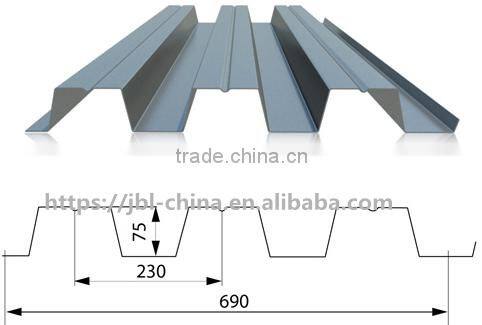

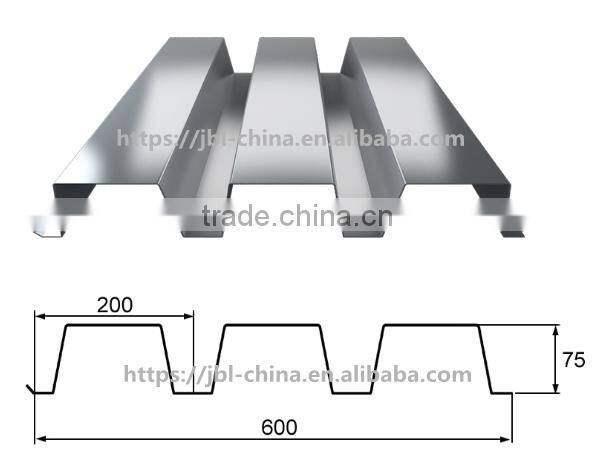

Prodile drawing
We can also design Floor Deck Roll Forming Machine according to your specific profile drawing.
Machine flow chart
Main Specifications of Floor Deck Roll Forming Machine
Material Spec: Galvanized steel sheet
Thickness of Coil Sheet: 0.8 --1.2 mm
Main Motor Power of Floor decking roll forming machine: 22kw
Forming Speed: 10--12m/min
Hydraulic Station Power: 4kw
Quantity of Stands: About 24 groups
Hydraulic Pressure: 10~12Mpa
Controlling System: PLC
Index Error of Length: 10m±1.5mm
Total Weight: About 1800kg
Voltage: 380V 3 phase 50Hz or at buyers requirement
Main Components
| Decoiler | 1 unit |
| Feeding | 1 unit |
| Main roll forming machine | 1 unit |
| Hydraulic station | 1 unit |
| PLC computer control | 1 unit |
| Output table | 1 Unit |
Working life | 10 years | Voltage | 380 V or according to customer |
size | 10m*1.2m*1.2m | Application | steel structure |
Lumen/Kit | 1000LM | Certification | CE |
Power | 22kw | Warranty | 1 years |
Item Name | Floor deck machine | Function | making steel floor deck |
roller | 45# | MOQ | 1 set |
Model Number | 688 /750 / 915 | Price | 30000USD |
PLC | Dleta | Port | Tianjin |
Our Company is major trapezoidal roof roll forming machine manufacture based in China. Our mainly products include double level roll forming machines, trapezoidal roof forming machines, steel pipe forming mill, slitting lines and cut to length lines, etc. They are widely used in process sheet metal and form roof panels, shingle nails, glazed tiles, purlins, deck, downpipe and more, or for metal roll forming in steel shelving systems and highway guardrail systems, and so on.
For more information on our metal forming machines, or other products, we welcome you to contact us.
Verified Information By Onsite Checked
Verification Type: third-party verification service provider
Business license:
Registration No.:130981000025769
Date of Issue:2013-03-11
Date of Expiry:2033-03-10
Registered Capital:RMB 500,000
Company Name:Botou Jinbaili Roll Forming Machine Co., Ltd.
Country/Territory:China (Mainland)
Registered address:Nancang Street, Botou, Cangzhou, Hebei, China (Mainland)
Year Established:1999
Legal Representative/CEO:Jianping Huang
Legal Form:Limited Liability Company (Invested Or Controlled By Natural Persons)
Issuing Authority:Botou City Administration for Industry and Commerce
Business Type: Manufacturer, Trading Company
Operational Address: Nancang Street, Botou, Hebei, China (Mainland)
Web:
1.Installing and training machine manufacturer:
1) If buyers visit our factory and check the machine will teach you how to install and use the roll forming machine for sale, and also train your face workers / technician face.
2) Without visiting, we will send user manual and video to teach you how to install and operate.
3) If the buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After the service roll forming machine for sale:
1) One year warranty for all roll forming machine sale.
2) 24-hour technical support by email or by calling
3) If there is any problem
We are wholeheartedly committed to quality and customer service, primarily since we want to be ranked as the "best" in our business. Quality is not just another goal; it is our basic strategy for survival and future growth.
1. Are you manufacturer?
Yes, we are manufacturer and trading company.
2. What information you need before quote me?
We need profile drawin gof the panel you want to produce, material information and your special requirements
3. What payment terms you accept?
Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4. Can you make machine according to my design?
Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
5. What is the warranty for our machine?
We have one year guarantee, and provide whole life's technical support
6. Is there any spare part send for free?
Yes, pls contact us we can talk it
7.Is the machine automatic?
Yes, it can be manual and automatic
