Help CenterHebei Jinbaili Double Layer Roof Sheet Roll Forming Machine for Sale
Related Products
-
Top Quality Double Layer Glazed Corrugated and Trapezoidal Roll Forming MachineUS$ 18,000 - 20,000MOQ: 1 Set -
Hebei Botou City Double Layer Roll Forming Machine Building Material MachineryUS$ 9,500 - 12,500MOQ: 1 Set
-
Double Layer Roll Forming Machine Roof Tile Makinbg Machine Metal Roofing Machine for SaleUS$ 9,500 - 12,500MOQ: 1 Set
-
Metal Roofing Sheet Colored Steel Double Layer Roll Forming MachineUS$ 12,000 - 20,000MOQ: 1 Set
-
North America Popular Hot Sale Galvanized Steel Double Layer Roof Sheet Cold Roll Forming MachineUS$ 10,000 - 25,000MOQ: 1 Set
double layer roll forming machine
- Main technical parameter
- 1.manual decoile:rmanual expanding,passive uncoil
- Inner Diameter. Φ460-520mm
- Outer Diameter. Φ1400mm
- 2.weight capacity of decoiler:6-9 T
- 3.machine stand: welded shape steel
- 4.type of forming machine:wallboard type with chain transmissionfloor deck
- 5.diameter of shaft: 85mm
- 6.material of shaft: high-grade 45 steel
- 7.chain:20A
- 8.motor power of forming machine:11KW*2
- 9.forming speed:10-12m/min
- 10. roll station:30 stations(according profile)
- 11. material of roller :high-grade 45 steel
- 12. surface of roller coated with chrome 0.05mm thickness
- 13. motor of hydraulic station:4KW
- 14. hydraulic oil pump:bear pump CB-E314
- 15. type of cutting:hydraulic cutting
- 16. material of cutting blade:Cr12
- 17. heat treatment of cutting blade:HRC58°-60°
- 18. thickness of steel coil:0.6-1.5mm
- 19. tolerance of length:10±2mm
- 20. transducer: Panasonic
- 21. computer adopts Panasonic PLC
- 22. computer operating board adopts Touch screen
- 23. Voltage: 380V 3 phase 50HZ or at buyer’s requirement
- Technical process
- Manual decoiler→ feed with guide→ roll forming→ cutting with fixed length→ output with table
- Equipment
- Manual decoiler,main forming machine,hydraulic cutting device,hydraulic station,PLC computer control,output table
- The time of producing:30days after deposit
- Payment : T/T
- First deposit T/T 30% when sign the contract, then 70% T/T before delivery
- Warranty: 1 year and life-long maintainance
- *Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee.
- * Installation Days: about 5-7 days

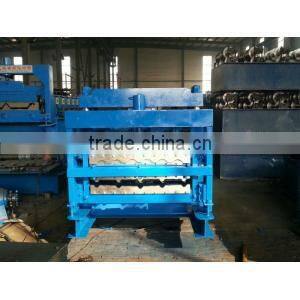

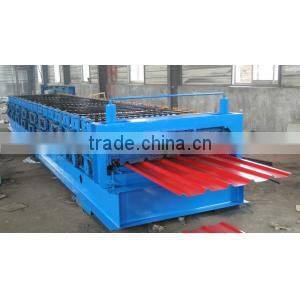

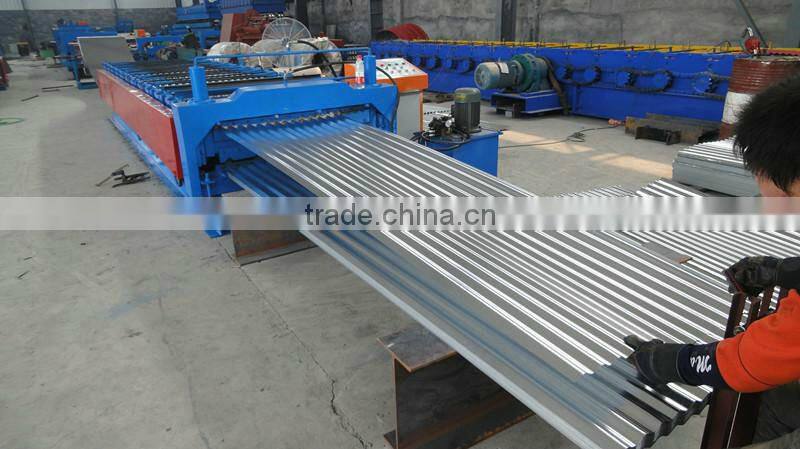

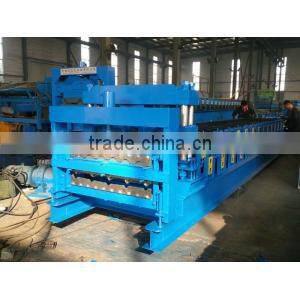

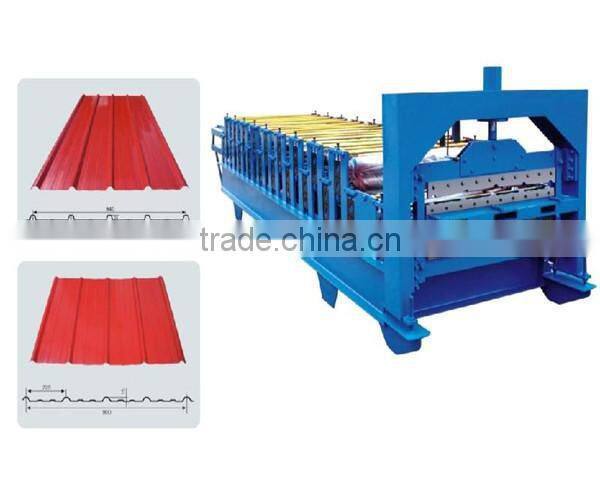

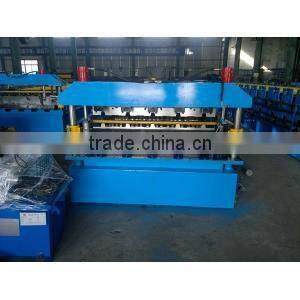

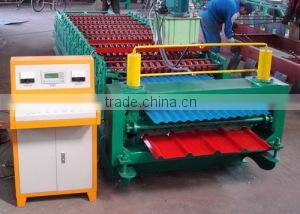

Machine picture:
Service Promise:
A.We will arrange engineers to supervise installation and make adjustment for the equipment; Buyer should pay $50 for each engineer every day. The buyer should be responsible for transportation (including round-trip ticket), insurance, accommodation.
B.Guarantee period:
1.The warranty will be maintenance, maintain in the guarantee period of one year starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
2.If the equipment are out of work in the guarantee period, the buyer needs our repairman to come to buyer’s factory, the buyer should be responsible for the tickets(including round-trip ticket), the fee of transportation to the buyer’s factory and the fee of accommodation. Required to change spare parts, the buyer should afford the freight fee and we don’t ask extra fee.
C.Detail Engineering
1.Lay out and general arrangement drawing
2.Funation lay out drawing
3.eration and maintenance instructions
D.Training
During installation and adjustment of the equipment, our engineers shall provide the training to buyer’s personnel to operate and maintain the equipment. Additional trading can be provided on request.
1.Foundation construction, electrical works, and civil engineering;
2.Electrical wire, mechanical tubes, water tubes between machines;
3.Lubricating oil, recirculation oil, gear box oil, recirculation cooling water;
4.Safety equipments and non-standard safety items;
5.Testing material;
6.Engineering service required at the buyer’s site.
