CE certification Barrel corrugator Type Galvanized Corrugated Roll forming macking Machine

Specifications

1.BARREL/DRUM TYPE/METAL SHEET CORRUGATION MACHINE
2.Max.Length 3660mm
3.Thickness 0.12-0.45mm
4.Max.width 1000mm

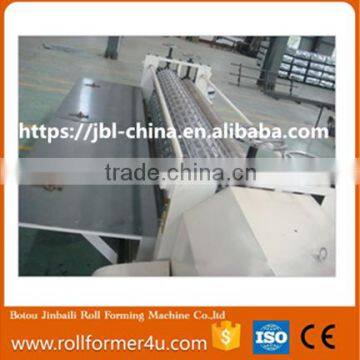

Barrel Corrugator Machine

Technical Specification

Length Of The Sheet                    : 4267. Max(+20-0)

Width Of The Sheet                     : 750/914/1000/1250  (+25-10)

Thickness Range Of Sheet           :   0.12mm To 0.4mm

Material To Be Corrugated         :   Full Hard, Semi-Hard, Soft Galvanized Sheets, Alu-Zinc Alloy & Ppgi Sheet

Drive                                               : 15kw-22kw, AC, For Type A 3 Phase

O.D. Of Corrugation Rolls           : 380 mm (25 Rods, diameter 16mm)

O.D. Of Pinch Rolls                      : 317 Mm.

Corrugation Parameters               :  As Per 3316 To JIS-SGCH –1987.

Wt. Of The Machine                     :  5.8 Ton Approx .

Production Capacity                     : 1.5-18 Meter Per Minute.(One Sheet Once Time)

Size                                                 :  5700*5012*1650mm

Characteristics

(1) AC. motor of power 15 -22kw.

(2) Corrugation machine is driven by an AC Motor

through a gear reduction drive train.

(3)              Pinch roll assembly is driven by a chain & sprocket drive arrangement through both the corrugating rolls.

(4)              A tension meter arrangement is fixed on the housing to tighten the chains. This arrangement is provided to avoid the slag in the chain due to screw down operation.

(5)              A  feed table is provided with gauge blocks to adjust the width of the sheets. This table is mounted on two brackets attached to the housing at both the sides. This table slides on an entry table.

(6)               The movement of the feed table is achieved by the crank & levers. The crank is mounted on the bottom corrugating roll.

(7)             An entry guide pipe is placed in between the entry table and the housing, for providing the entry of sheet into the corrugating rolls along the pass- line.

(8)             An auxiliary table is placed between the corrugating roll assy. And the pinch toll assy. For the proper entry of the corrugated sheets into the pinch roll assy.

(9)                An exit table is provided for removing the finished corrugated sheets.

(10)               Screw down is for increasing/decreasing the number of crests formed on the sheets.

(11)             A screw down is for adjusting the gap between the pinch roll assy.,for maintaining the proper flatness on the crests of the corrugated sheets &to obtain required width.

(12)              Gears are provided at both the ends of top & bottom corrugation rolls to adjust & keep the crests in centre.

(13)            Grouting of the machine is done by 9 foundation bolts of 22 mm dia & 1000 mm. Length.

(14)

For manufacturing of barrel type corrugation machine

Final product 18-76 corrugated roof produced with the machine should have the following parameters

Profile drawing

We can also design   Roll Forming Machine according to your specific profile drawing.

Our Company is major trapezoidal roof roll forming machine manufacture based in China. Our mainly products include double level roll forming machines, trapezoidal roof forming machines, steel pipe forming mill, slitting lines and cut to length lines, etc. They are widely used in process sheet metal and form roof panels, shingle nails, glazed tiles, purlins, deck, downpipe and more, or for metal roll forming in steel shelving systems and highway guardrail systems, and so on.
For more information on our metal forming machines, or other products, we welcome you to contact us.
