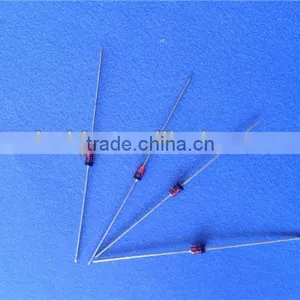

Solid State Rectifier Diodes 1N4746

Specifications

Solid State Rectifier diodes 1N4746
1.Power dissipation:1W
2.Zener Voltage:18V
3.Glass case:DO-41
4.Standard Zener voltage

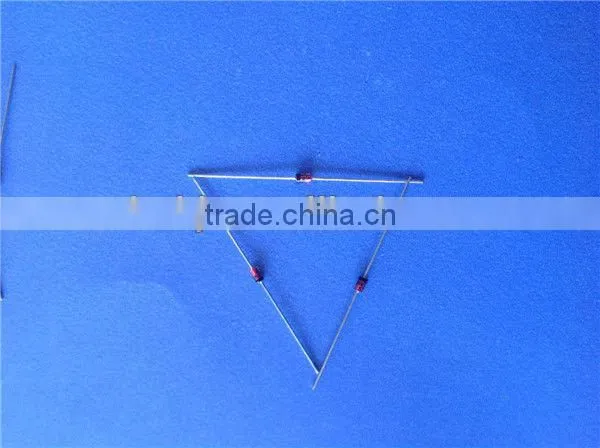

Solid State Rectifier diodes 1N4746



Features



 ♦ Silicon Planar Power Zener Diodes
♦ For use in stabilizing and clipping circuits with
high power rating.
♦ Standard Zener voltage tolerance is ±10%. Add
suffix “A” for ±5% tolerance. Other Zener voltages and
tolerances are available upon request.
♦ These diodes are also available in the MELF case with type
designation ZM4728 thru ZM4764



MEACHANICAL DATA

• Case: DO-41 Glass Case
• Weight: approx. 0.35 g



Customer's comment:

1.Impressed with the highest quality and best service

2.Reliable partner

3.Doing business with pleasure

4.Cooperation with long term



Corporate Vision:

1.Best service

2.Good quality

3.Most favorable price

4.Sufficient supply
