Home > Electrical & Electronics > Electronic Tube & Transistor > Rectifier Diode > 3A GENERAL SILICON DIODE 1N5408

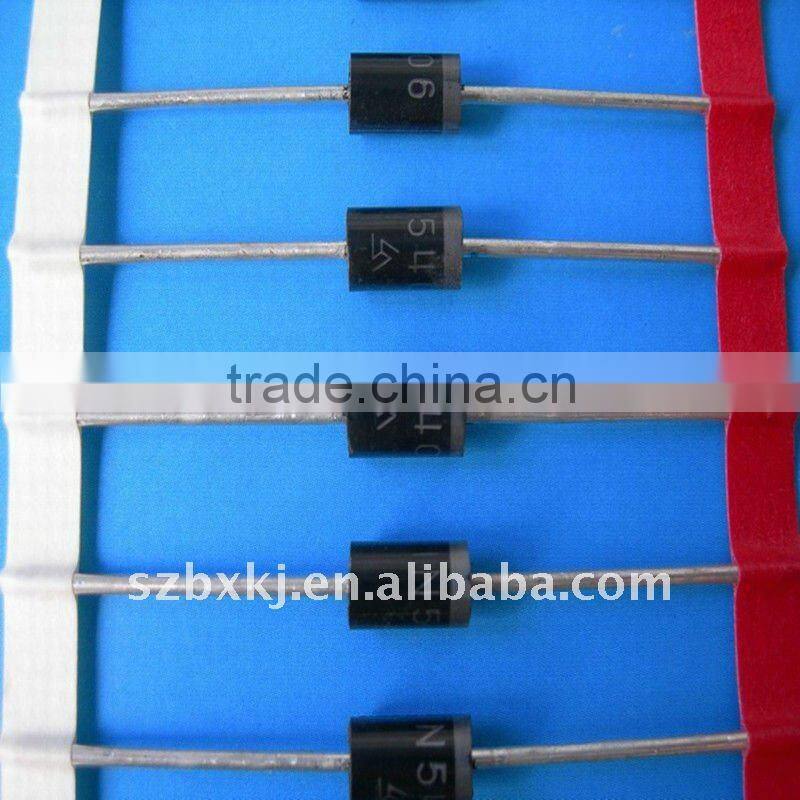

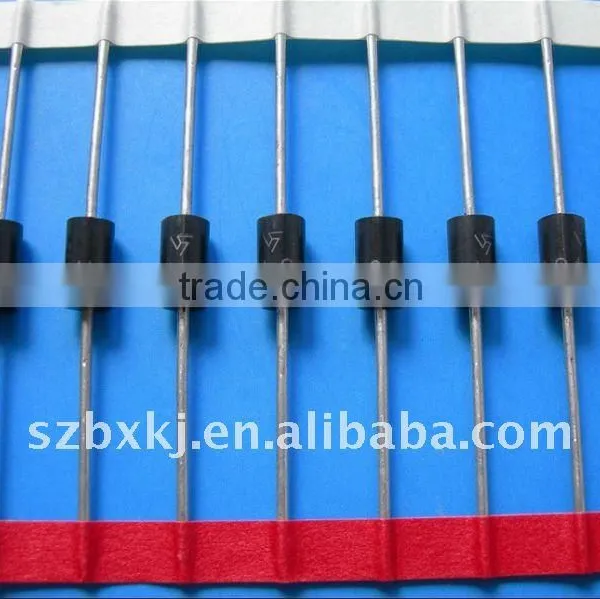

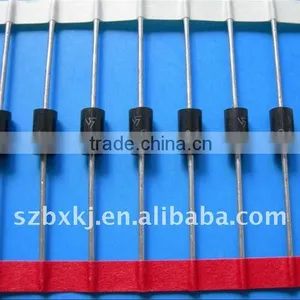

3A GENERAL SILICON DIODE 1N5408
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
BX.PY
Model Number:
Standard Recovery Rectifiers
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Chongqing, China
Brand Name
BX.PY
Model Number
Standard Recovery Rectifiers
Type
Rectifier Diode
Package Type
Through Hole
Max. Reverse Voltage
1000V
Max. Forward Current
3.0A

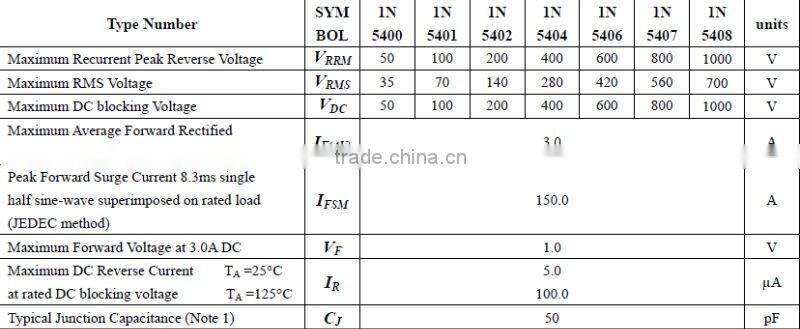

Specifications
GENERAL PURPOSE SILICON DIODES 1N54081.1000V 3.0A
2.High current capability
3.Low forward voltage
4.DO-27/DO-201AD
1N5400 THRU 1N5408 DIODES VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Ampere
· Low coat construction
· Low forward voltage drop
· Low reverse leakage
· High forward surge current capability
· High temperature soldering guaranteed:260°C/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension
MECHANICAL:
- Teminal:plated axial lesds solderable per MIL-STD 202E method 208C
- Case:molded with UL-94 class V-0B recognized flame retartant epoxy
- Polarity:color band denotes cathode
- Mounting position: any
- Weight: 0.042 ounce, 1.19 grams
