Home > Products > Bridge Rectifiers > Bridge Diodes GBJ1506 15A
Bridge Diodes GBJ1506 15A
- Shenzhen
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | BX.PY | |
| Model Number | Bridge rectifiers | Type | Rectifier Diode | |
| Package Type | Through Hole | Max. Reverse Voltage | 600v | |
| Max. Forward Current | 15.0A |
Product Description
Specifications
Bridge Diodes GBJ15061,600V, 15A
2,Low leakage
3,High surge current capability

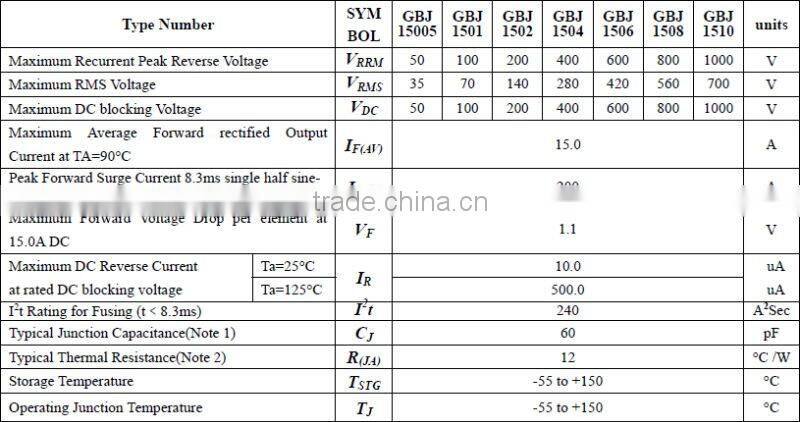

GBJ15005 THRU GBJ1510
Product discription: Single Phase 15.0 AMPS.Glass Passivated Bridge Rectifiers
1)Part Number: GBJ1506
2)Package: GBJ
3)IF(AV): 15A
4)VRRM:600V
5)VRMS: 420V
6)VF: 1.1V
7)IR: 0.5mA at 25
FEATURE
.UL Recognized File # E-96005
.Ideal for printed circuit board
.Glass passivated chip junctions
.High case dielectric stength
.Low leakage
.Low forward voltage
.High surge current capability
.High temperature soldering guaranteed:
260°C/10seconds/375”,(9.5mm) lead lengths.
MECHANICAL DATA
.Case: Molded plastic body
.Epoxy: UL 94V-0 rate flame retardant
.Terminals: Pure tin plated, Lead free. leadssolderable
per MIL-STD-750, Method 2026.
.Polarity: Symbols molded or marked on body
.Mounting position: Any
.Weight:6.6grams
