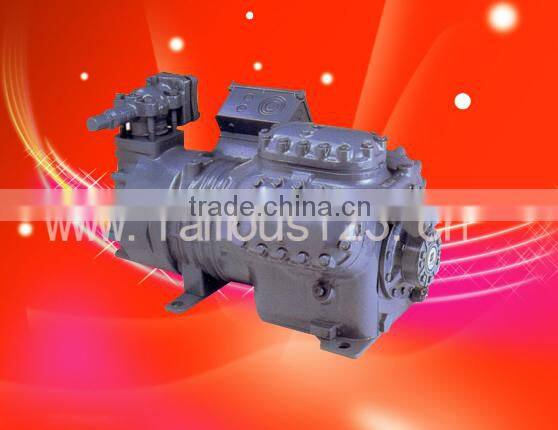

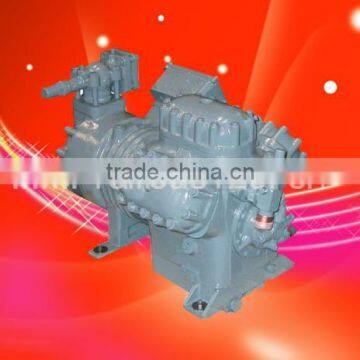

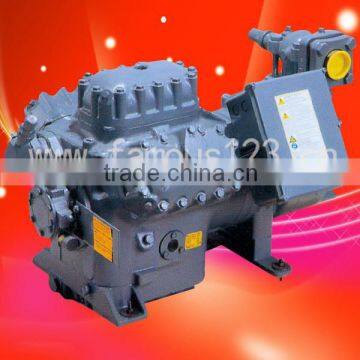

15hp Copeland compressor,copeland r134a compressor D4DL-1500 DC,D4DL-150 X
USD $1,000 - $10,000
/ Unit
1 Unit(Min.Order)
- 1000 Unit / Units per Month
- Guangzhou/Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin: | Germany | Brand Name: | Copeland | Model Number: | D4DL-150 X |
| Type: | Other, Refrigeration Compressor, Semi-hermetic piston compressors | Application: | Refrigeration Parts | Certification: | Other, RoHS |
Product Description
Semi-hermetic DWM Copeland Compressor all models
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality
Type: Semi-hermetic piston compressors
Producer: Copeland
Series: DISCUS
Model: D4DL-150 X
Technical data
| Cylinder count: | 4 | |
| Displacement [m³/h]: | 70,8 | |
| Weight [kg]: | 221 | |
| Oil charge [dm³]: | 3,6 | |
| Max. operating current [A]: | 28,5 | |
| Locked rotor current [A]: | 140 | |
| Power supply [V/~/Hz]: | 380-420V/3/50Hz |
Connections
| milimeters | inches | ||
| Suction line: | 1 5/8" | ||
| Discharge line: | 1 1/8" |
Standard Equipment
- oil pump
- oil sight glass
- Rotalock valves
- thermal protections
Optional equipment
- additional header cooling
- oil pressure switch
- crankcase heater
- unload starting
- capacity control

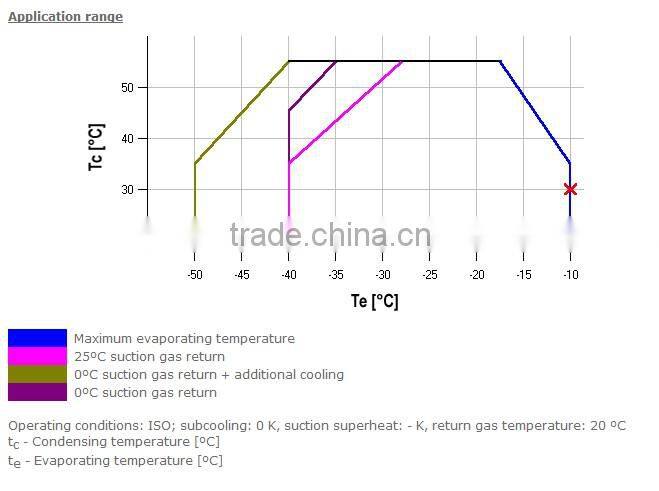

Application
- high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)

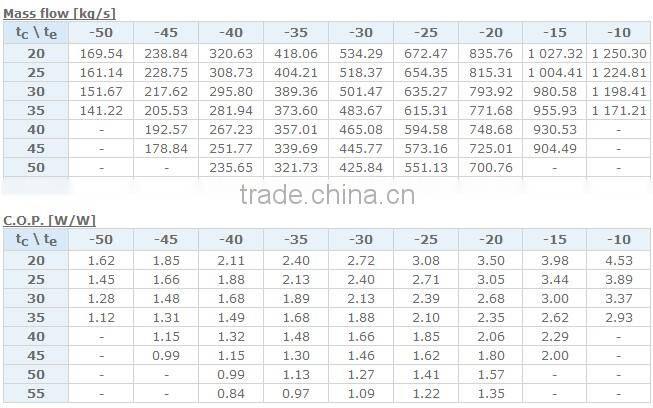

Capacity : R404A/R507

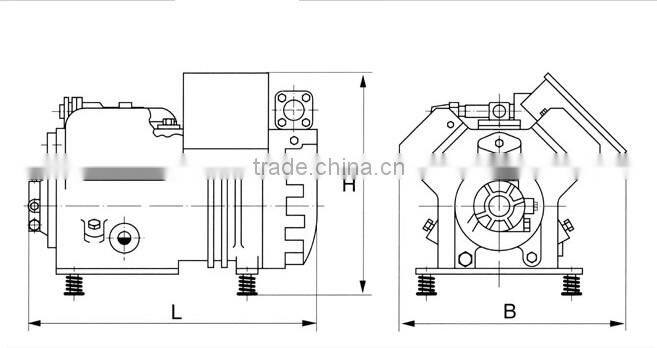

Dimensions:
|

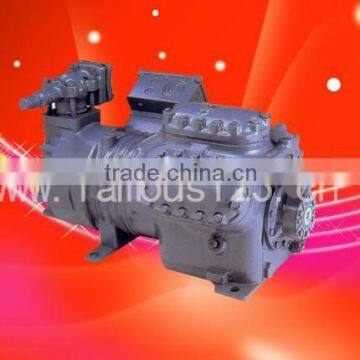

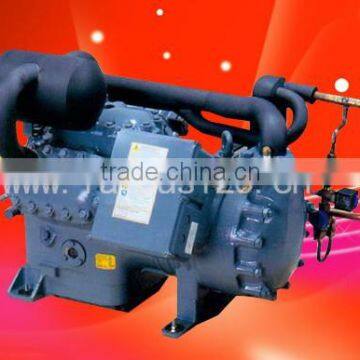

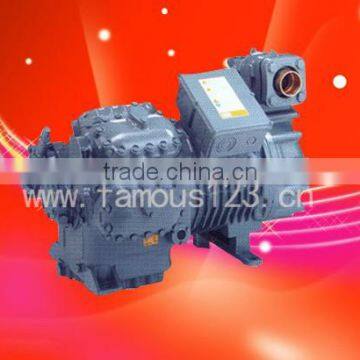

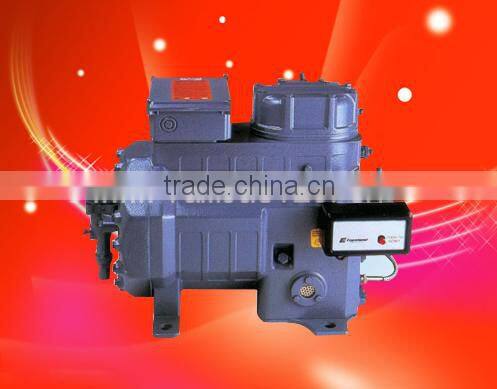

Pictures:
