TOP! 13m 15m 17m 18m Mobile Hydraulic Concrete Placing Boom with Wheels/Spider Boom with Wheels

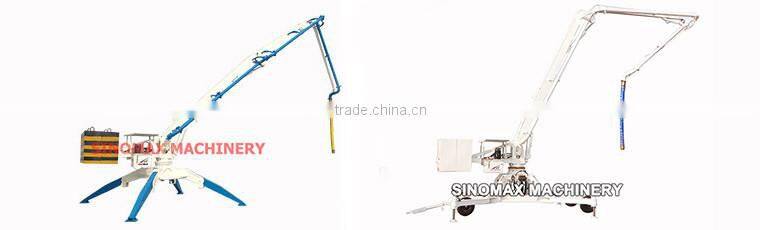

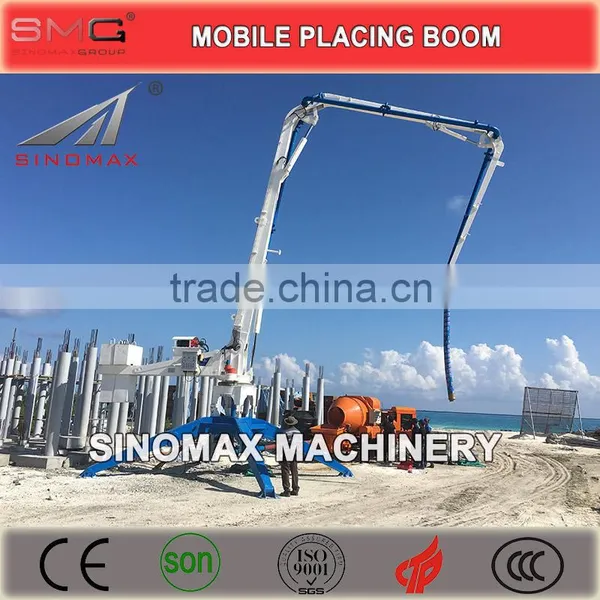

1 Introduction of SINOMAX Hydraulic Mobile Concrete Placing Booms with Wheels
SINOMAX mobile hydraulic concrete placing booms mainly include 13m, 15m, 17m and 18m driven by fully hydraulic system. It does not need to be fixed while working and could be moved to another place by tower crane on site, models with wheels could be towed by the trailer and supported by hydraulic legs in working condition, highly movable and flexible. It is very suitable and widely used for the construction of form walls, pipes, columns, piles, other vertical structures, different floors without confined placing areas and complicated jobsites without being influenced by the size and shape of floors.
2 Features of Hydraulic Mobile Concrete Placing Booms with Wheels
1 Compact structure, easily moved, highly movable and flexible
2 Three foldable arms,360 degree swing, without confined placing areas
3 Without being fixed while working
4 Easy operation and low cost maintenance
5 Fully hydraulic system, highly stable and reliable
6 Separate modular parts for easy and fast installation with light weight
7 Wheels with trailer and hydraulic supporting legs are optional according to clients’ requirements.
3 Technical Parameters of Hydraulic Mobile Concrete Placing Booms (optinal wheels)
ITEM |
UNIT |
MODEL |
|||||
HGY13 |
HGY15 |
HGY17 |
HGY18 |
||||
Max. placing radius |
m |
13 |
15 |
17 |
18 |
||
Machine height |
m |
3.9 |
2.6 |
3.2 |
3.75 |
||
Slewing range |
° |
360 |
|||||
Slewing speed |
r/min |
0.3-0.8 |
|||||
Motor power |
Kw |
4 |
4 |
5.5 |
5.5/ |
||
Hydraulic system pressure |
MPa |
24 |
|||||
Supporting legs span |
m |
3.15×3.15 |
4×4 |
4.6×4.6 |
5×5 |
||
1st Arm |
Length |
mm |
3700 |
6000 |
6660 |
7660 |
|
Articulation |
° |
-2-84.4 |
0-70 |
-4-65 |
-4-65 |
||
2nd Arm |
Length |
mm |
4520 |
5000 |
5730 |
5730 |
|
Articulation |
° |
0-180 |
|||||
3rd Arm |
Length |
mm |
4780 |
4000 |
4610 |
4610 |
|
Articulation |
° |
0-180 |
|||||
Length of end hose |
m |
5”×3 |
|||||
Inner diameter of delivery pipeline |
mm |
DN125 |
|||||
Counter weight frame slewing radius |
mm |
2720 |
2810 |
3150 |
3930 |
||
Working Ambient Temperature |
℃ |
-15-50 |
|||||
Cleaning mode for delivery pipeline |
- |
Water Cleaning / Dry Cleaning |
|||||
Weight |
Machine weight |
Kg |
2700 |
3230 |
5000 |
6700 |
|
Counter weight |
Kg |
2×900 |
2×1100 |
2×1100 |
2×1100 |
||
Driving mode |
- |
Completely Hydraulic System |
|||||
Control mode |
- |
Manual / Radio Remote Control |
|||||
Options: |
- |
Option 1: Only with wheels and trailer Option 2: Wheels and trailer with hydraulic supporting legs |
|||||
TERMS OF PAYMENT |
30%TT as prepayment, 70%TT or irrevocable LC at sight before shipment. |
DELIVERY TIME |
10-15 days after receipt of prepayment or irrevocable LC at sight. |
CONTAINER NEEDED |

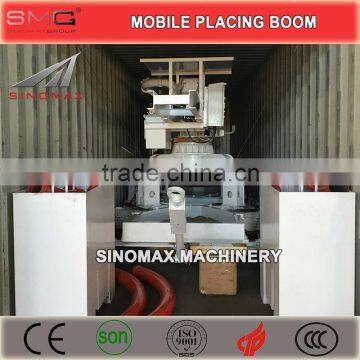

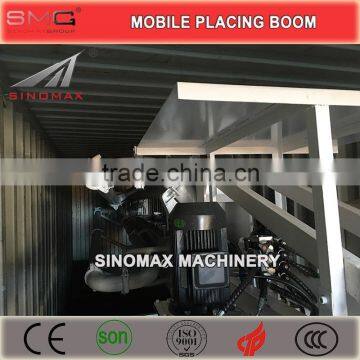

1*40GP for 1 set of mobile concrete placing boom |
SINOMAX Machinery, is a professional manufacturer and exporter specializing in production, R&D, quality control and exporting for nearly 20 years. Belonging to SMG and located in the industrial zone of beautiful coastal city, Qingdao, in Shandong Province, with convenient transportation near to the airport and seaport.
Our products mainly include concrete machinery, construction machinery and materials such as concrete placing boom, concrete boom pump truck, concrete batching plant, concrete mixer, concrete pump, concrete pump with mixer, block machine and so on. We have exported to more than 60 countries and regions with excellent quality, such as Southeast Asia, South America, Africa, Oceania and Eastern Europe.
FAQ:

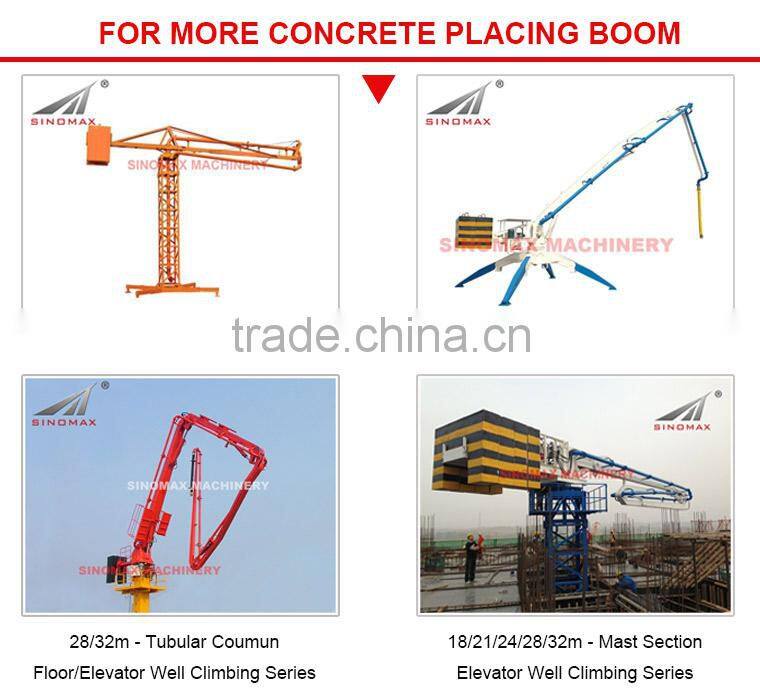

Q: How many kinds of concrete placing booms you have?
A: We have below series.
1: 12/15/18m Manual Mechanical Spider Concrete Placing Booms (Optional wheels with trailer, hydraulic supporting legs )
2: 13/15/17/18m Mobile Hydraulic Spider Concrete Placing Booms
3: 28/32m Floor Climbing Type and Elevator Well Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: Do you have concrete placing booms with boom length over 32m?
A: Yes, boom length over 32m such as 33m, 34, 36m, 38m needs to be customized by order.
Q: Is there any proportional multiway valve for concrete placing boom?
A: Proportional mutiway valve is optional for more smooth operation like pump trucks.
Q: Our tower crane is not big enough to lift tubular column for installation, how can we do?
A: We can make the tubular column separate (4m, 5m, 6m) for light weight, fast and easy installation.
Q: How to fix the mobile concrete placing booms?
A: The mobile hydraulic concrete placing booms do not need to be fixed while working.
