Home > Products > Concrete Mixer Pump > DJBT Series Diesel Mobile Portable Concrete Mixer with Pump, Concrete Pump with Mixer, Concrete Mixer Pump SINOMAX Machinery
DJBT Series Diesel Mobile Portable Concrete Mixer with Pump, Concrete Pump with Mixer, Concrete Mixer Pump SINOMAX Machinery
- 800 Set / Sets per Month
- Any port in China
- T/T D/P D/A
- outdoor Medium High pressure Portable abrasive waterjet reinforced concrete cutting machine
- 52 Meter Concrete Pump Truck
- Sany concrete pump hose reel 60031864
- Zhongyi motor concrete pump parts
- 37 Meter Concrete Pump Truck
- diesel mini concrete pump for sale Aggregate size 30mm post tension grout mortar cement pump
Product Details
Condition: | New | Power Type: | Diesel | Place of Origin: | Shandong, China |
Brand Name: | SINOMAX Machinery, SMG | Model Number: | DJBT30-08-45 | Power(W): | 45Kw |
Weight: | 4500Kgs | Dimension(L*W*H): | 5500*2300*2700 | Certification: | ISO CE SONCAP |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
DJBT Series Diesel Mobile Portable Concrete Mixer with Pump, Concrete Pump with Mixer, Concrete Mixer Pump SINOMAX Machinery

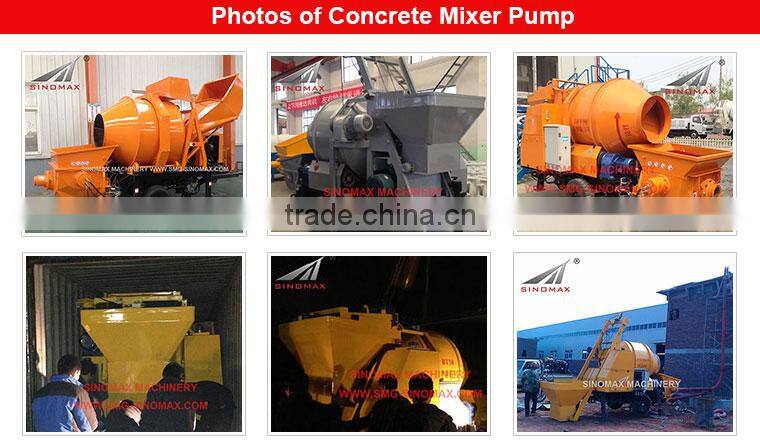

1 Introduction of SINOMAX Concrete Mixer Pump
SINOMAX Concrete Mixer Pump, also called Concrete Mixer with Pump, Concrete Pump with Mixer, is combined functions of concrete mixer and concrete pump together for mixing and pumping concrete widely used in small and medium construction projects. The driven power could be by electric motor or diesel engine for choice.
2 Features of SINOMAX Concrete Mixer Pump
1.Combined pump and mixer together into one machine, flexible, strong and high reliability.
2.Concrete mixing and pumping only require one operator, saving cost and labor.
3. Driven power could be by electric motor or diesel engine, highly automatic, stable and reliable.
4. Automatic water supply
5. Fashionable and beautiful appearance.
6. Pump and mixer could be used separately.
7.Weighing batching system could be optional. Weighing senor could be installed in cylinder of skip bucket or wheel loader. The weight and ratio will be displayed on LED.
2 Technical Parameters of SINOMAX Concrete Mixer Pump
ITEM | UNIT | MODEL | |||
JBT30-08-30 | DJBT30-08-45 | DJBT40-08-56 | |||
Pump System (Could be used as separate pump) | Pumping capacity | m3/h | 30 | 30 | 40 |
Theoretical outlet pressure | Mpa | 8 | 8 | 8 | |
Theoretical delivery height | m | 130 | 130 | 130 | |
Theoretical delivery distance | m | 320 | 320 | 320 | |
Distribution valve type | - | S pipe valve | |||
Outlet diameter | mm | 150 | 150 | 150 | |
Inner diameter of delivery pipe | mm | 125 | 125 | 125 | |
Hopper volume | L | 450 | 450 | 600 | |
Allowed max. aggregate | mm | 40 | 40 | 40 | |
Power | Kw | 30Kw (Electric) | 45Kw(Diesel) | 56Kw(Diesel) | |
Mixer System (Could be used as separate mixer) | Mixer discharging capacity | L | 350L (450L is optional) |
TERMS OF PAYMENT | 30%TT as prepayment, 70%TT or irrevocable LC at sight before shipment. |
DELIVERY TIME | 20-25 days after receipt of prepayment or irrevocable LC at sight. |
CONTAINER NEEDED | 1*20GP for concrete pump with 350L mixer 1*20’OT for concrete pump with 450L mixer |
SINOMAX Machinery, is a professional manufacturer and exporter specializing in production, R&D, quality control and exporting for nearly 20 years. Belonging to SMG and located in the industrial zone of beautiful coastal city, Qingdao, in Shandong Province, with convenient transportation near to the airport and seaport.
Our products mainly include concrete machinery, construction machinery and materials such as concrete placing boom, concrete boom pump truck, concrete batching plant, concrete mixer, concrete pump, concrete mixer pump, block machine and so on. We have exported to more than 60 countries and regions with excellent quality, such as Southeast Asia, South America, Africa, Oceania and Eastern Europe.
FAQ:
Q: What is the capacity for mixer and pump of concrete mixer pump?
A: Mixer discharging capacity could be 350L or 450L.
Pumping capacity could be 25m3/h, 30m3/h, 35m3/h or 40m3/h.
Q: What is the brand of diesel engine?
A: 45Kw Duetz engine or 56Kw LOVOL engine is optional.
Q: How about the hydraulic pump and valves?
A: Rexroth or Kawasaki is optional for hydraulic pump. Hydraulic valves could be Rexroth, Eaton or Huade.
Q: How many persons it need for operating concrete mixer pump?
A: This concrete mixer pump only needs one person for operation, saving cost and labor.
