Home > Products > Roofing PC Sheet > Multi-walled clear polycarbonate pc roofing panel
Multi-walled clear polycarbonate pc roofing panel
- 100000 Square Meter / Square Meters per Month
- Guangzhou
- T/T
You May Like
-
Muti wall Cellular structure polycarbonate 4 6 8 10 mm pc roofing sheet
-
Flat Multi wall polycarbonate 4mm 6mm 8mm pc plastic roofing sheet
-
Flat Multiwall 6mm 8mm polycarbonate roofing sheet
-
Sunroom greenhouse polycarbonate sheet transparent clear roof
-
4 6 8 10 mm Transparent clear pc wall polycarbonate roof panels
-
4mm 6mm 8mm 10mm polycarbonate plastic roofing sheet
Product Details
Place of Origin | Guangdong, China | Brand Name | PUTE | |
Model Number | PT2RS |
Product Description
Product Description

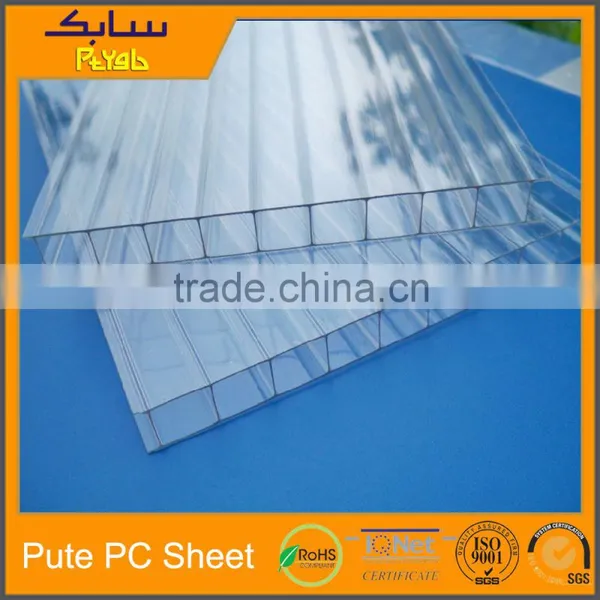

Our PUTE Mutiwall Polycarbonate sheet has good light transmission,high impact resistance,good heat insulation,easy for installation.It's widely used in constructions and decorations.
Specifications:
Sheet Thickness: | 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm,18mm,20mm |
Width: | 2100mm. |
Length: | 5800mm,11800mm. |
Color: | Clear, Opal,Grass Green,Green,Lake Blue, Blue,Red ,Yellow,Black, Bronze tinted |
Material: | 100% virgin Bayer Makrolon/Sabic Lexan material. |
Coating: | 50 micron UV protection(One side or two sides). |
Guarantee: | 10 years. |
Delivery Time: | 7-15 days after received deposit. |
Property:
Sheet Thickness (mm) | Structure | Weight (kg/sqm) | Min. Bend Radius (mm) | K Value (W/M2K) |
4 | 2-wall | 0.9 | 700 | 4.1 |
6 | 1.3 | 1050 | 3.6 | |
8 | 1.5 | 1400 | 3.3 | |
10 | 1.7 | 1750 | 3.0 | |
12 | 4-wall | 2.0 | 2100 | 2.6 |
14 | 2.2 | 2450 | 2.4 | |
16 | 2.5 | 2800 | 2.2 | |
18 | 2.8 | 3150 | 2.0 | |
20 | 3.1 | 3500 | 1.8 |
Features:
1) Good light transmission: reaches 12%- 88% depending on color and thickness.
2) Ultraviolet resistance: with UV protective layer
3) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheeting
4) Flame resistance: rated class B1
5) Light weight and easy installation: 1/2 of glass of the same thickness
6) Weather resistance: -40°C~+120°C
7) Sound and heat proof
8) Fine plasticity, either cold bending or hot bending
Technical data:
1) Impact strength: | 850J/m. About 200-350 times that of common glass. |
2) Weight: | About 1/2 times of glass of the same thickness. |
3) Light transmission: | 12%-82% for different thickness and color. |
4) Specific gravity: | 1.2 g/cm3 |
5) Coefficient of thermal expansion: | 0.065 mm/m°C |
6) Temperature range: | -40° Cto 120°C |
7) Heat conductivity: | 2.3-3.9 W/m2º |
8) Tensile strength: | >=60N/mm2 |
9) Flexural strength: | 100N/mm2 |
10) Heat deflection temperature: | 140 °C |
11) Modulus of elasticity: | 2, 400mPa |
12) Tensile street at break: | >=65mPa |
13) Elongation at break: | >100% |
14) Specific heat: | 1.16J/kgk |
15) Soundproof index: | 4mm-27dB,10mm-33dB |
Polycarbonate sheet application:
1)Roofing for swimming pool,shopping malls,commercial streets
2)Sunshade for stadiums and bus stops,gazebo,open-air carport
3)Lighting canopy for corridors,passages and subway entries
4)Flashing for bank ATMs,telephone box,gateways,garages
5)Sound and heat insulation wall for expressways and houses
6)Heat preservation material for agricultural greenhouse,flower greenhouse
7)Soundproof material for partitions
8)Unbreakable material for glazing windows,roof glazing
Packaging & Shipping
Container capacity for various sheet size:
Sheet Thickness | Sheet Size | Quantity per container | Quantity per container |
4mm | 2100*5800mm | 550 pcs | 1250 pcs |
6mm | 2100*5800mm | 380 pcs | 860 pcs |
8mm | 2100*5800mm | 290 pcs | 650 pcs |
10mm | 2100*5800mm | 235 pcs | 530 pcs |
Sheet Thickness | Sheet Size | Quantity per container | Quantity per container |
4mm | 2100*11800mm | 550 pcs | 625 pcs |
6mm | 2100*11800mm | 380 pcs | 430 pcs |
8mm | 2100*11800mm | 290 pcs | 325 pcs |
10mm | 2100*11800mm | 235 pcs | 265 pcs |
Company Information
Q1. What is your terms of packing?
A: The polycarbonate sheets have protective PE film on both sides with logoes.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 1 to 2 weeks after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you provide customization services?
A: Yes, we can custom make the polycarbonate sheets according to your specifications (Subject to minimum order quantity).
Q6. What is your sample policy?
A: We will provide the sample free of charges, but the customers have to pay the courier cost.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
