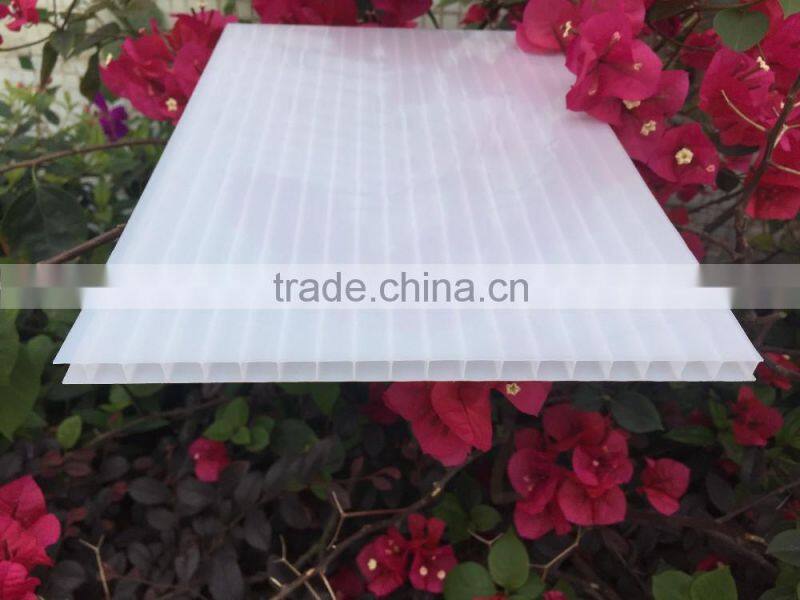

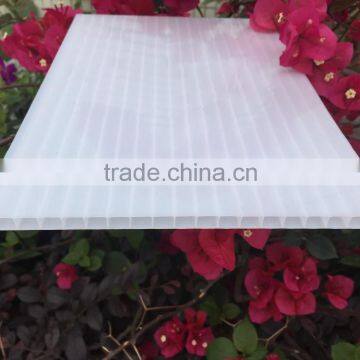

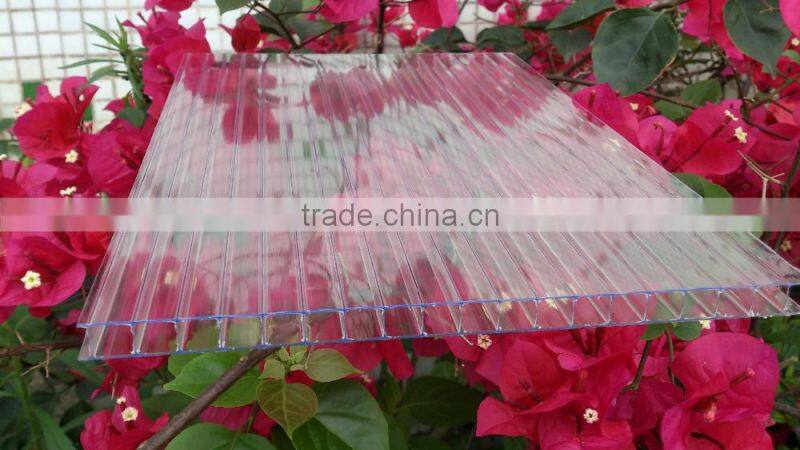

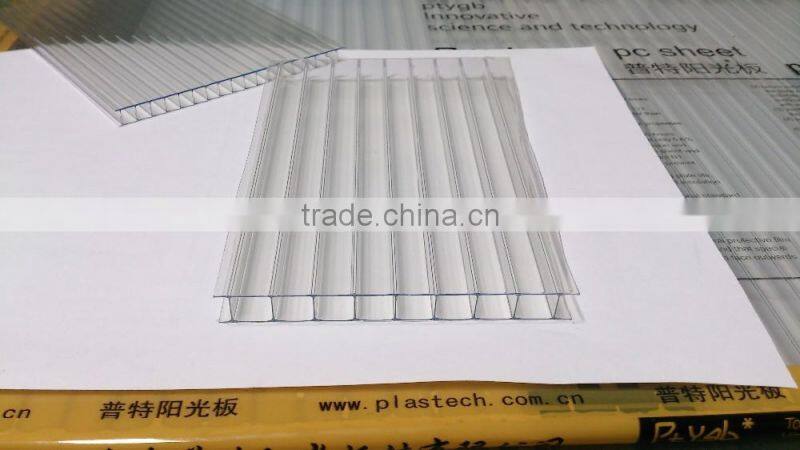

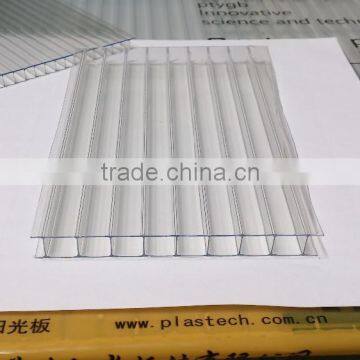

Help Center10mm Policarbonato Sunboard Sheet
Related Products
-
Foshan Polycarbonate Sheet Multi Wall Polycarbonate Bronze/clear PanelUS$ 1.2 - 13MOQ: 1000 Square Meters -
Transparent Soundproof Optical Grade Polycarbonate 20mm Thickness pc Multi Wall PolycarbonateUS$ 1.2 - 13MOQ: 1000 Square Meters
-
Bayer Makrolon Polycarbonate pc Resin Shelter Material Balcony Roof Covering FoshanUS$ 1.2 - 13MOQ: 1000 Square Meters
-
Stadium Roof Material Sun Protection Sheet 20mm Thickness pc Multi Wall PolycarbonateUS$ 1.2 - 13MOQ: 1000 Square Meters
-
4mm Polycarbonate Panel Long Life Span Polycarbonate Greenhouse Roofing Polycarbonate PricesUS$ 1.2 - 13MOQ: 1000 Square Meters
Product Description
Features:
1) Good light transmission: reaches 12%- 88% depending on color and thickness.
2) Ultraviolet resistance: with UV protective layer
3) Impact resistance: 250-300 times that of ordinary glass and 20-30 times that of acrylic sheeting
4) Flame resistance: rated class B1
5) Light weight and easy installation: 1/2 of glass of the same thickness
6) Weather resistance: -40°C~+120°C
7) Sound and heat proof
8) Fine plasticity, either cold bending or hot bending
Specifications:
Sheet Thickness: |
4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm,18mm,20mm |
Width: |
2100mm. |
Length: |
5800mm,11800mm. |
Color: |

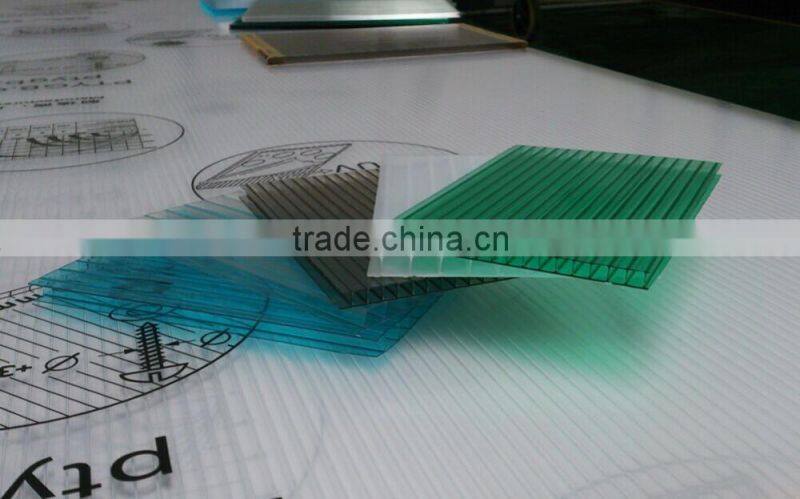

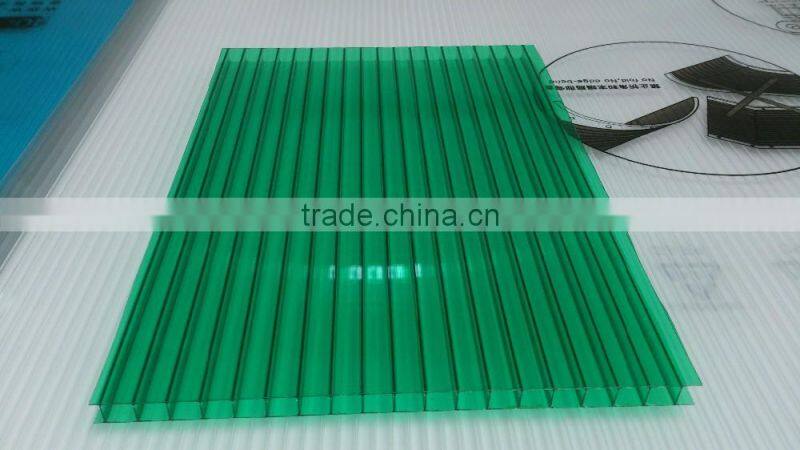

Clear, Opal,Grass Green,Green,Lake Blue, Blue,Red ,Yellow,Black, Bronze tinted |
Material: |
100% virgin Bayer Makrolon/Sabic Lexan material. |
Coating: |
50 micron UV protection(One side or two sides). |
Guarantee: |
10 years. |
Delivery Time: |
7-15 days after received deposit. |
Property:
|
Sheet Thickness (mm) |
Structure |
Weight (kg/sqm) |
Min. Bend Radius (mm) |
K Value (W/M2K) |
4 |
2-wall |
0.9 |
700 |
4.1 |
6 |
1.3 |
1050 |
3.6 |
|
8 |
1.5 |
1400 |
3.3 |
|
10 |
1.7 |
1750 |
3.0 |
|
12 |
4-wall |
2.0 |
2100 |
2.6 |
14 |
2.2 |
2450 |
2.4 |
|
16 |
2.5 |
2800 |
2.2 |
|
18 |
2.8 |
3150 |
2.0 |
|
20 |
3.1 |
3500 |
1.8 |
Technical data:
1) Impact strength: |
850J/m. About 200-350 times that of common glass. |
2) Weight: |
About 1/2 times of glass of the same thickness. |
3) Light transmission: |
12%-82% for different thickness and color. |
4) Specific gravity: |
1.2 g/cm3 |
5) Coefficient of thermal expansion: |
0.065 mm/m°C |
6) Temperature range: |
-40° Cto 120°C |
7) Heat conductivity: |
2.3-3.9 W/m2º |
8) Tensile strength: |
>=60N/mm2 |
9) Flexural strength: |
100N/mm2 |
10) Heat deflection temperature: |
140 °C |
11) Modulus of elasticity: |
2, 400mPa |
12) Tensile street at break: |
>=65mPa |
13) Elongation at break: |
>100% |
14) Specific heat: |
1.16J/kgk |
15) Soundproof index: |
4mm-27dB,10mm-33dB |

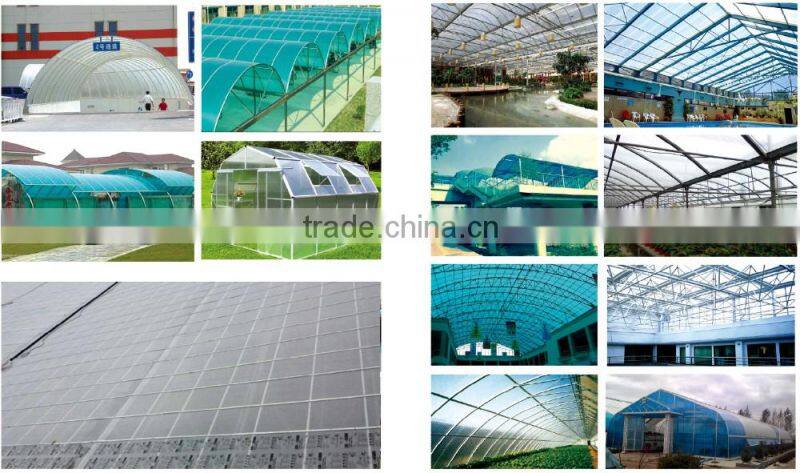

Polycarbonate sheet application:
1)Roofing for swimming pool,shopping malls,commercial streets
2)Sunshade for stadiums and bus stops,gazebo,open-air carport
3)Lighting canopy for corridors,passages and subway entries
4)Flashing for bank ATMs,telephone box,gateways,garages
5)Sound and heat insulation wall for expressways and houses
6)Heat preservation material for agricultural greenhouse,flower greenhouse
7)Soundproof material for partitions
8)Unbreakable material for glazing windows,roof glazing
Packaging & Shipping
Plastic films on both sides to protect the sheet.
Container capacity for various sheet size:
Sheet Thickness |
Sheet Size |
Quantity per container |
Quantity per container |
4mm |
2100*5800mm |
550 pcs |
1250 pcs |
6mm |
2100*5800mm |
380 pcs |
860 pcs |
8mm |
2100*5800mm |
290 pcs |
650 pcs |
10mm |
2100*5800mm |
235 pcs |
530 pcs |
Sheet Thickness |
Sheet Size |
Quantity per container |
Quantity per container |
4mm |
2100*11800mm |
550 pcs |
625 pcs |
6mm |
2100*11800mm |
380 pcs |
430 pcs |
8mm |
2100*11800mm |
290 pcs |
325 pcs |
10mm |
2100*11800mm |
235 pcs |
265 pcs |

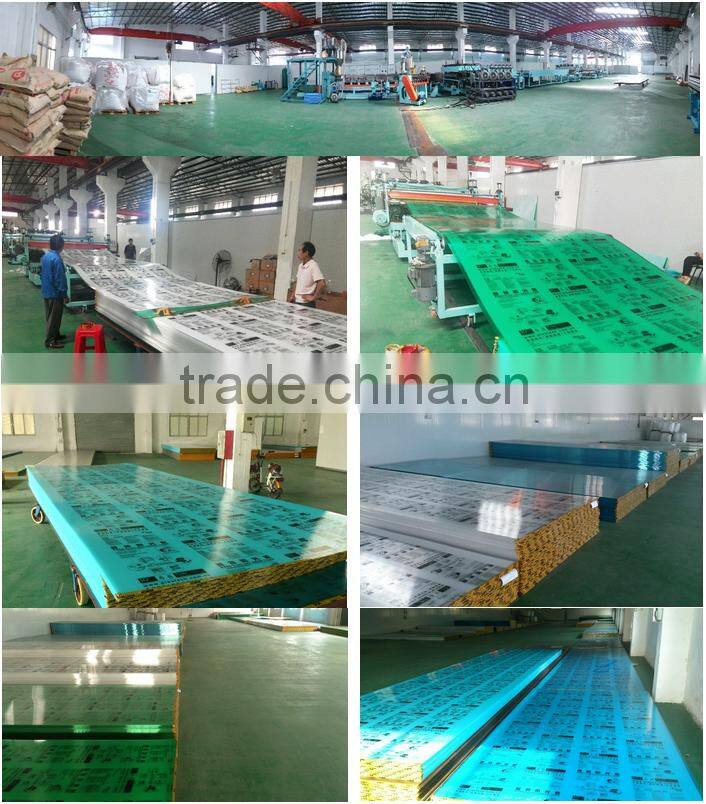

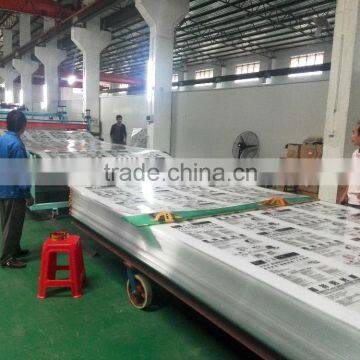

Company Information
