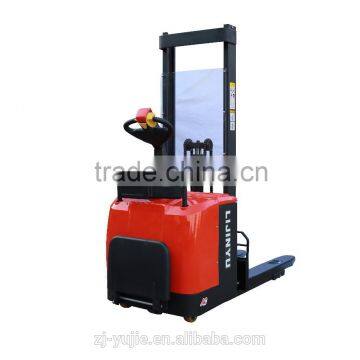

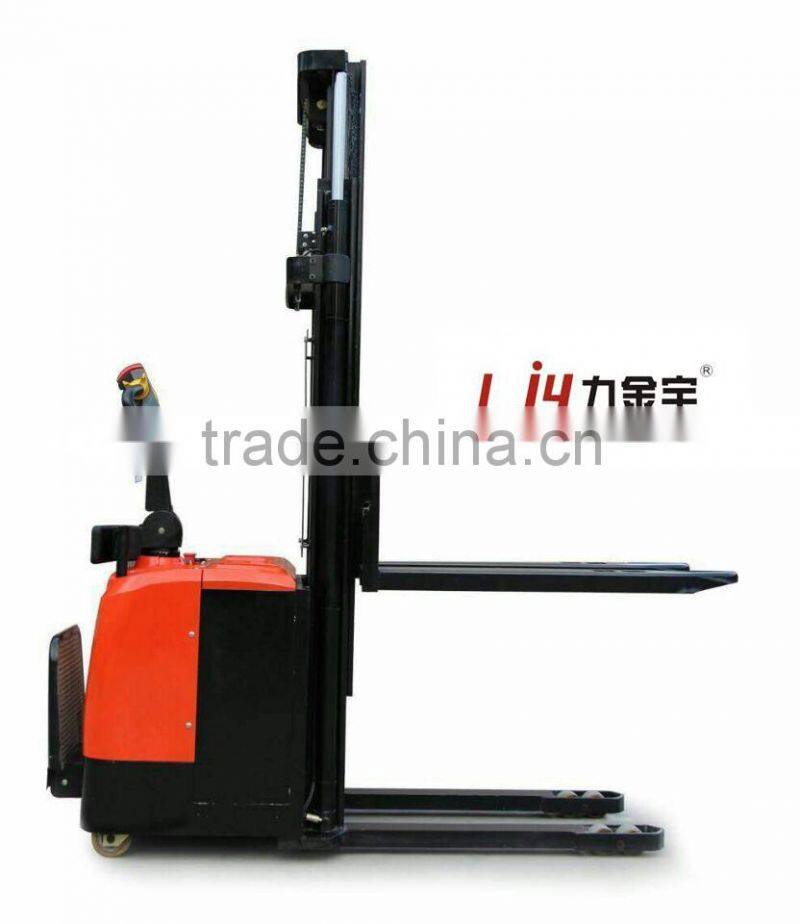

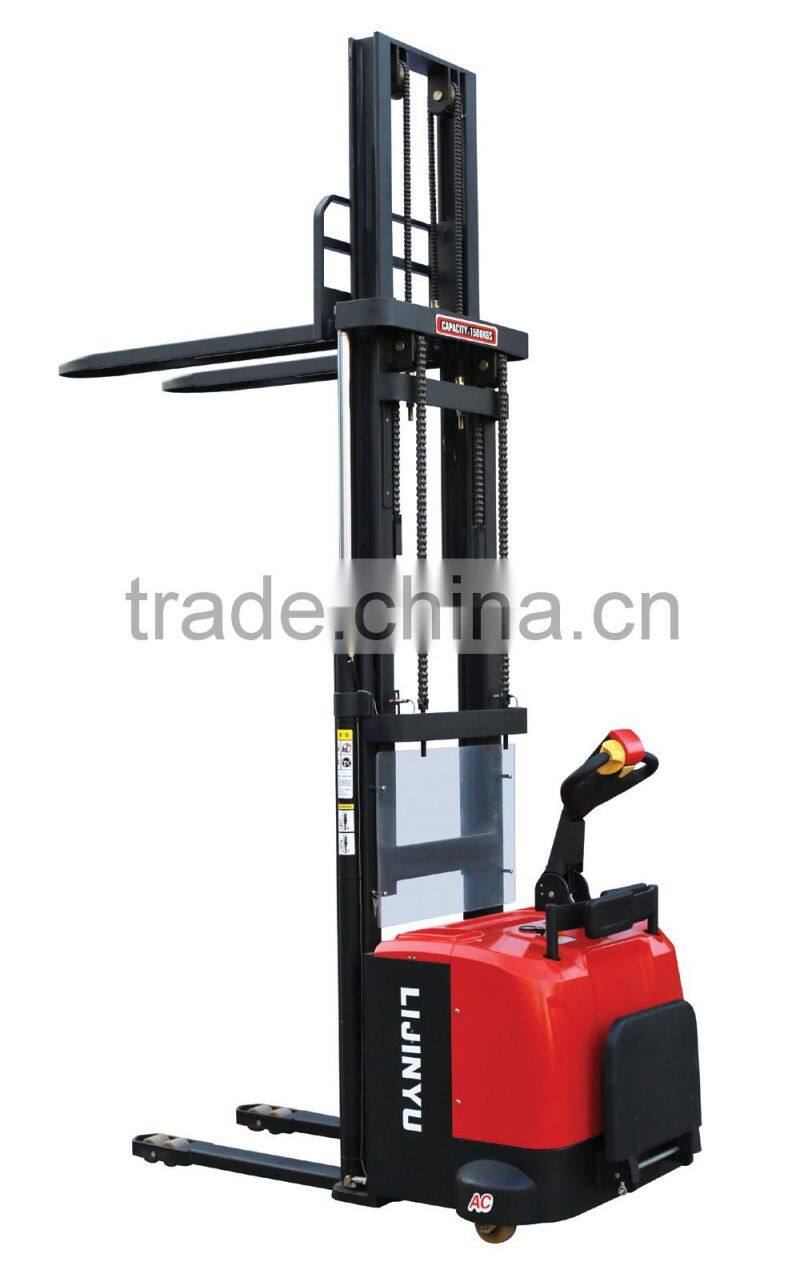

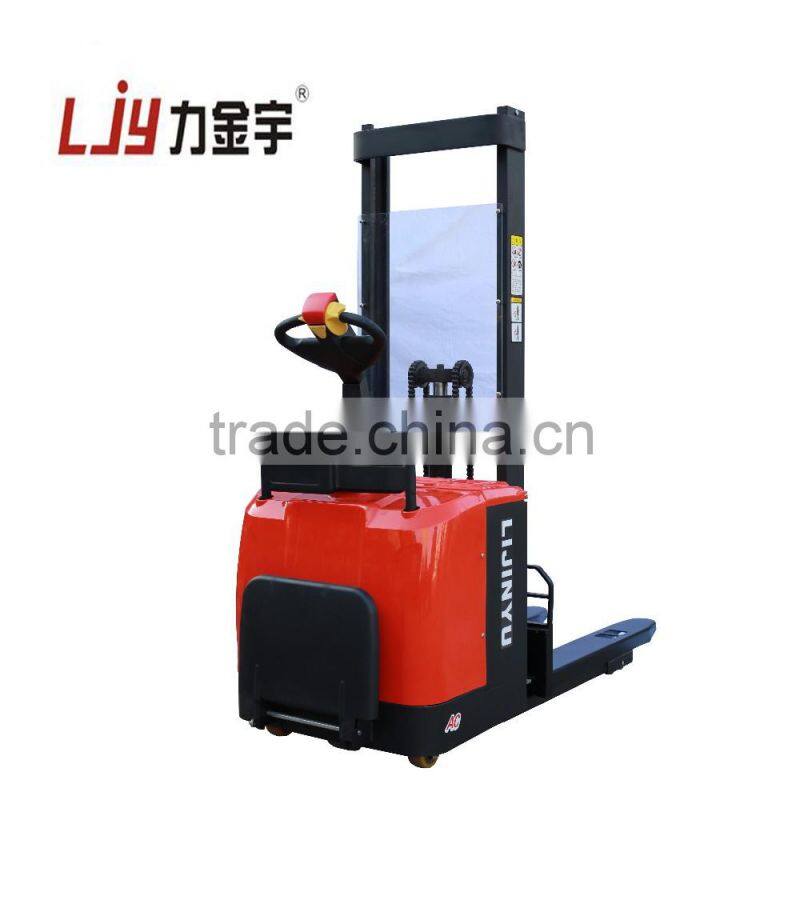

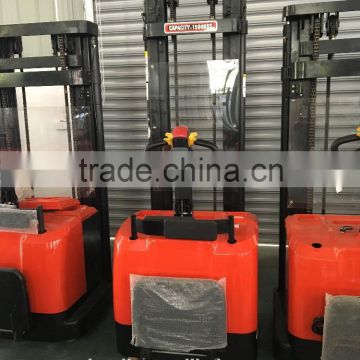

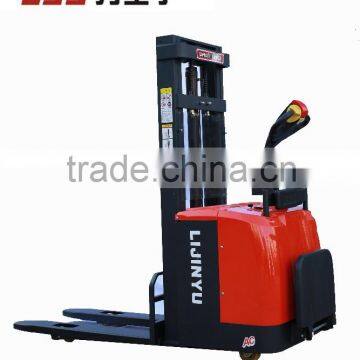

Custom 1.0/2.0 Tons Electric Stacker With Poclain Hydraulic Motor

Custom 1.0/2.0 Tons Electric Stacker With Poclain Hydraulic Motor thumbnail-1
Custom 1.0/2.0 Tons Electric Stacker With Poclain Hydraulic Motor thumbnail-2
Custom 1.0/2.0 Tons Electric Stacker With Poclain Hydraulic Motor thumbnail-3
Custom 1.0/2.0 Tons Electric Stacker With Poclain Hydraulic Motor thumbnail-4
Custom 1.0/2.0 Tons Electric Stacker With Poclain Hydraulic Motor photo-1
Custom 1.0/2.0 Tons Electric Stacker With Poclain Hydraulic Motor photo-2
Custom 1.0/2.0 Tons Electric Stacker With Poclain Hydraulic Motor photo-3
Custom 1.0/2.0 Tons Electric Stacker With Poclain Hydraulic Motor photo-4
US$ 2,945 - 3,635 MOQ: 5 Sets
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
YUJIE
Contact Supplier Request Quote Chat Now
Zhejiang Yujie Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name YUJIE
Model Number CD-D10AD
Dimension(L*W*H) 1920*800*2080
Certification ISO9001
Warranty 1 Year
After-sales Service Provided No overseas service provided
Company profile

Zhejiang Yujie Machinery Co.,Ltd is a manufacturer that have more than 10 years of production experience and development. We mainly supply electric pickup ,manual lift,electric stacker and so on.

Company is ISO 9001:2008 certificate,which can ensure quality and efficiency.
Today, the company has grown into a well-known domestic warehouse transport vehicle manufacturing enterprise.
It covers over 30000 square meters and our produsts are more and more popular.

Product Parameter

Electric stacker is one of the easy lifting equipments. With good quality and easy to use.

                                                                                Electric stacker
Model
CD-D10AD
CD-D15AD
CD-D20AD
Load Capacity
kg
1000
1500
2000
Load Center Distance
mm
500
500
500
Front wheel
Φ80*75
Φ80*75
Φ80*75
Balance Wheel
Φ138*65
Φ138*65
Φ138*65
Driving Wheel
Φ252*88
Φ252*88
Φ252*88
Front wheel Base
mm
420（520）
420（520）
420（520）
Driving Wheel Base
mm
640
640
640
Fork Lift Height
mm
1600
1600
1600
Min.Fork Ground Clearance
mm
90
90
90
Overall Height
mm
2080
2080
2080
Overall Length
mm
1750-1920
1750-1920
1750-1920
Overall Width
mm
800
800
800
Length of Fork
mm
900-1070
900-1070
900-1070
Width of Fork
mm
580/680
580/680
580/680
Min.Turning Raduis
mm
1688-1768
1688-1768
1688-1768
Net Weight
kg
720
740
760
Max.Gradeability(loaden/unload)
%
6/10
6/10
6/10
Battery
V/AH
24/210
24/210
24/210
Lifting Moter Power
Kw
2.2
2.2
2.2
Driving Motor Power
Kw
1.2
1.2
1.2
Lifting Speed(loaden/unload)
mm/s
80/100
80/100
80/100
Falling Speed(loaden/unload)
mm/s
150/120
150/120
150/120
Travelling Speed(loaden/unload)
km/h
4.2/5.6
4.2/5.6
4.2/5.6
Type of Drive Control
AC
AC
AC

Advantages

1. Electric stacker with full power, easy to handle.

2. Electric stacker with low speed, high toque brushless DC motor and advanced electric control system will support stable running power,with poclain hydraulic motor.

3. Electric stacker with ok Quality  and Price competitive.

4. Intelligentzed regenerative brake system make this electric stacker more safety.

Zhejiang Yujie Machinery Co.,Ltd take good materials and good techology to make sure the quality of all products.

It covers over 30000 square meters and our produsts are more and more popular. Electric stacker became more and more popular.

Fairs&Certifications
Related Products

             CD-D15AD(SMJ)


                         CD-D10AD(ES)


                       CD-D10AD


FAQ

1. What's the warranty?

A: All main parts of the electric stacker have 1 year warranty. Any technology questions can contact us any time.

2. What's the delivery time?

A: Normally after the order requirements 15-30 business days.


3. How about the package?

A: Normally with bare package.

Can customized.

More questions about the electric stacker can leave us a message or contact us directly.
