ZTE ZXA10 C300 Optical Line terminal Ethernet uplink card XUTQ GPON EPON 10G EPON OLT
Overview:
ZXA10 C300 is an access system based on GPON/EPON technology.
ZXA10 C300 provides large–capacity,high–bandwidth and high density triple-play service.
ZXA10 C300 provides various networking solutions,including FTTH, FTTB, FTTC, FTTCab,base station transmission and IP dedicated line.
ZXA10 C300 supports P2P FE/GE optical access.

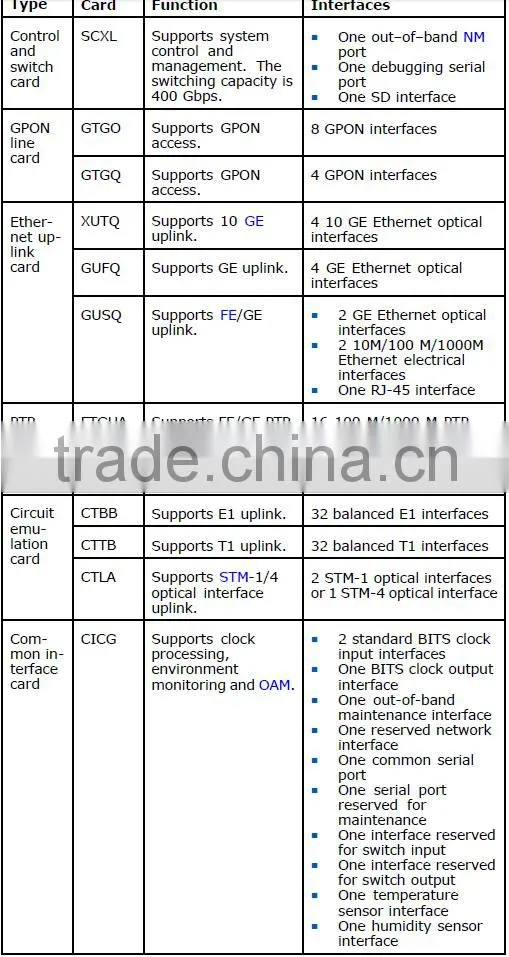

ZXA10 300 CARDS:
Specifications:
Unified platform for GPON,EPON and P2P.
Large capacity and high density: meet operators’ requirements for mass optical access roll-out
Future-proof: support NG-PON, like 10G EPON, 10G GPON, WDM PON, and LR PON.
Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc .
Diverse interfaces: besides P2MP, P2P and TDM interfaces can also be provided for business and residential application.
Enhanced multicast function: meets mass IPTV roll-out.
Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and broadcast packet limitation.
Service differentiation: Comprehensive QoS mechanisms for voice, video and high speed Internet services.
Flexible networking topologies: Various uplink interface and subtending interface.
High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ STP/RSTP/MSTP for uplink.
Features:
System Architecture
•Chassis Configuration (21”)
Total 23 slots
16 slots for universal line cards
2 slots for switch & control cards
2 slots for power cards
2 slots for uplink and cascading interfaces
1 slot for environment detection card
•Chassis Configuration (19”)
Total 21 slots
14 slots for universal line cards
2 slots for switch& control cards
2 slots for power cards
2 slots for uplink and cascading interfaces
•Subscriber Card Density
GPON card: 8 ports per card
EPON card: 8 ports per card
P2P card: 16 ports per card
10G EPON card: 4 ports per card
•Uplink interface card
4*10GE uplink per card
4*GE uplink per card
1*STM-4/OC12 or 2*STM-1/OC3 TDM uplink per card
•Environment detection card
2*Hz/Bit external clock interfaces
5*Environment detection interfaces
PON Features
•EPON compliant with IEEE 802.3ah
•GPON compliant with ITU G.984.x
•10GEPON compliant with IEEE 802.3v
•Support up to 1:128 optical split ratio for GPON,1:64 optical split ratio for EPON and 1:256 optical split ratio for 10GEPON
•Support OLS (Optical Laser Supervising )
•Physical reach: 20~60km
•Highly-efficient DBA: NSR-DBA,SR-DBA
•1PPS+TOD,IEEE 1588V2
•Transceiver power: Class B+ or class C+
•Type B and type C optical link protection
•FEC
•AES128
•SCB
L2/L3 Features
•1:1/N:1 VLAN
•802.1ad, SVLAN, Selective QinQ, VLAN stacking
•Line-speed forwarding
•STP/RSTP/MSTP compliant with IEEE 802.1d/802.1w/802.1s
•Link aggregation IEEE 802.3ad
•DHCP server, DHCP Relay (option 60/82), DHCP proxy
•L3 routing:
•RMON II
•Multicast – IPTV
•QoS
•Queue & scheduling mechanism: SP, DWRR, SP+DWRR
•IPv4 DSCP Diffserv
•Stream classification, rate limiting, shaping and priority setting
•Traffic statistics
•Service based rate limit
•WRED and triple color
•SLA: CIR, PIR, EIR, MBS
•Security
L2- L4 ACL
IEEE 802.1x subscriber authentication
IP and MAC source guard
Resistance against DOS attacks
MAC/IP anti-spoofing (MAC binding, IP binding, DHCP snooping)
Anti-flooding: broadcast packet suppression, IGMP packet suppression, DHCP packet suppression
ØMAC address number limit based on VLAN or GEM-port
Port mirroring
User port identification such as PPPOE+ and DHCP Option 82
O&M
•Operator security, Multi-privileged operator, SSH v1/v2, FTP/TFTP, ACL
•Management protocol and interface: CLI, Telnet ,SNMP V1/V2C/V3, MIBII
•Remote firmware download and upgrade
•Environment detection, control and alarm
•Performance statistics
•Over-heat protection
Environment
•Operating temperature: -5 ºC ~ +45 ºC
•Operating humidity: 5% ~ 95%, non-condensing

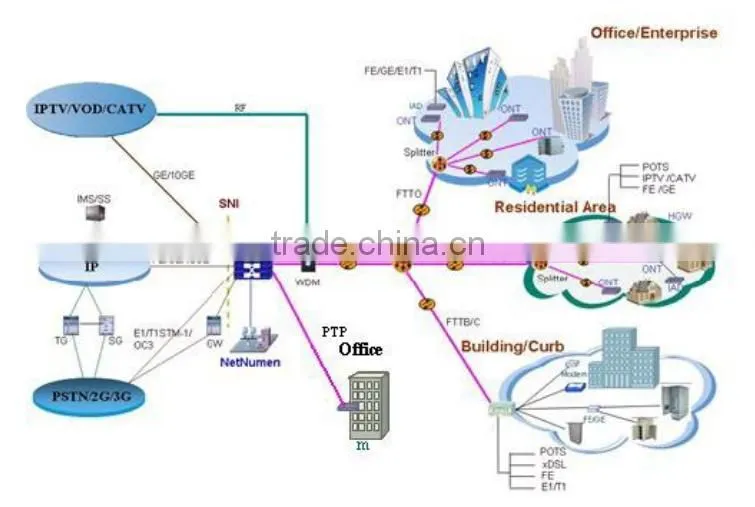

ZXA10 C300 NETWORKING:

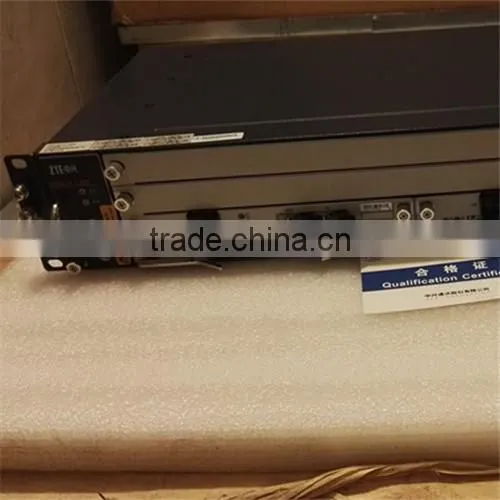

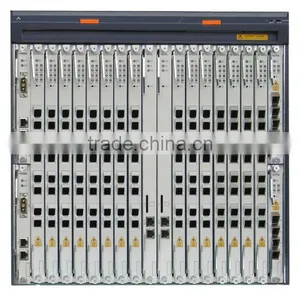

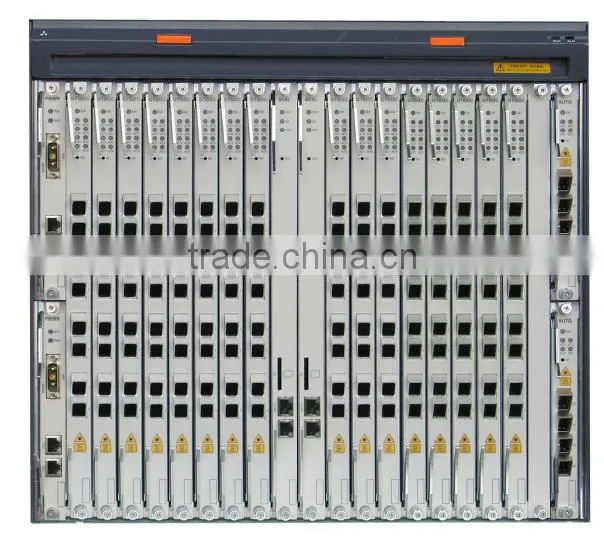

Product Pictures:
