Car Rear View Camera 12V/24V Reverse Car Camera for All Cars

Car Rear View Camera 12V/24V Reverse Car Camera for All Cars photo-1

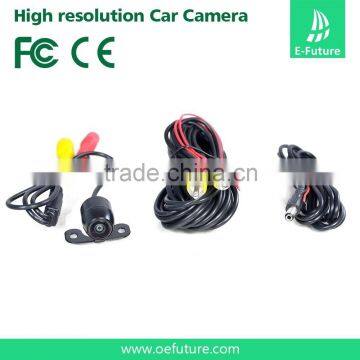

Car Rear View Camera 12V/24V Reverse Car Camera for All Cars photo-2
Car Rear View Camera 12V/24V Reverse Car Camera for All Cars photo-3

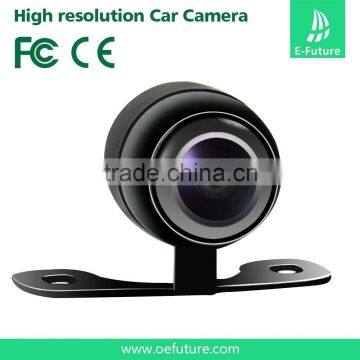

Car Rear View Camera 12V/24V Reverse Car Camera for All Cars photo-4

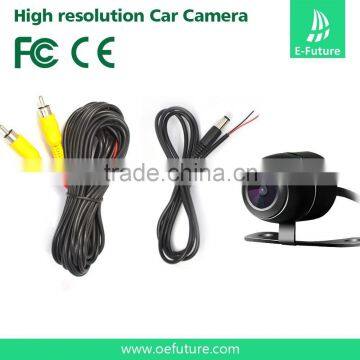

Car Rear View Camera 12V/24V Reverse Car Camera for All Cars photo-5

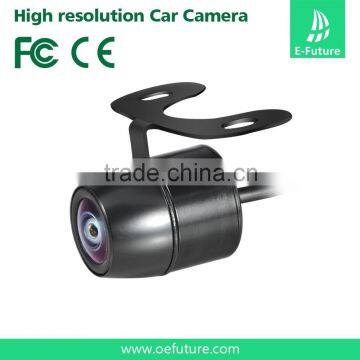

Car Rear View Camera 12V/24V Reverse Car Camera for All Cars photo-6
US$ 8 - 21 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Other, Reverse Camera, Car reverse camera
Voltage:
DC 12V
Power:
<1W, <1W
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/HONG KONG
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Reverse Camera, Car reverse camera
Voltage DC 12V
Power <1W, <1W
Car Make any car
Brand Name OEM
Model Number EF-C18
Warranty 3 Years, 3 years



Main features:







1, Universal Rearview Backup Camera
2, 170 Degree wide viewing angle
3, Die cast Metal housing
4, Small and compact design
5, Completely waterproof housing
6, Metal anti-theft bracket
7, Simple installation for installers
8, Low light sensitivity fo 0.5 Lux
9, Reverse image
10,Color: Black
11,Requires a 12V DC power supply



Technical Specifications:







1,TV Systems: NTSC/PAL
2, Image Sensors: Color CMOS
3,Total Pixels: 688*488
4, Resolution: 420 TV Lines
5, Lens: 2.8mm
6,Video Output: 1.0vp-p composite video at 75ohm
7, Power Supply: DC 9V-15V
8,Operating Temperature (Deg. C) -30o C~ +70o C
9,Water Proof, Anti-Shock







Quality Assurance:







1.Waterproof test



2.Temperature test



3.Shockproof test



4.Aging test



















MODEL

EF-C18

EF-C18

Images sensors

HD CCD

CMOS

Resolution(TV Line)

480

420

Effective pixels

720*576/720*480

580*540/580*492

Minimum illumination

0.5 lux

1 lux

IP rating

Ip68

Ip68

lens Angle(Deg.)

170°

170°

TV System

PAL/NTSC

PAL/NTSC

Power Supply(DCV)

DC12V±1V

DC12V±1V

Power

<1W

<1W

Electronic shutter

1/60(NTSC)1/50(PAL)1/10,000second

1/60(NTSC)1/50(PAL)1/10,000second

S/N Ratio

≥48dB

≥48dB

Video output

1.0vp-p.75ohm

1.0vp-p.75ohm

White Balance

Auto

Auto

AGC

Auto

Auto

Operating Temperature(Deg. C):

-20~+75(RH95% Max.)

-20~+75(RH95% Max.)

Storage Temperature(Deg. C):

-30~+85(RH95% Max.)

-30~+85(RH95% Max.)

Optional Function

Mirror image & non-mirrored image

Mirror image & non-mirrored image

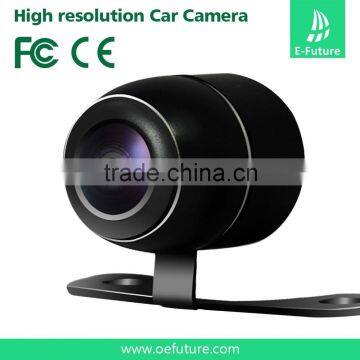

Product photo:



Car rear view camera 12V/24V reverse car camera for all carsCar rear view camera 12V/24V reverse car camera for all carsCar rear view camera 12V/24V reverse car camera for all carsCar rear view camera 12V/24V reverse car camera for all carsCar rear view camera 12V/24V reverse car camera for all carsCar rear view camera 12V/24V reverse car camera for all carsCar rear view camera 12V/24V reverse car camera for all cars
