Help CenterTFT LCD Monitor Circuit Board
Related Products
Specifications
1)TFT LCD monitor scaler board2)LCD AD board
2)low cost and high quality
3)original factory supplier
4)ISO9001:2008

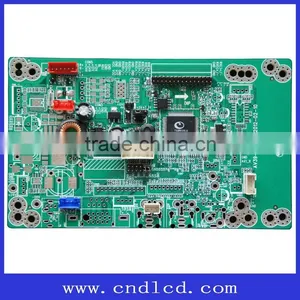

TFT LCD monitor circuit board
Support multi-resolution by changing jumper cat and support FULL HD 1920X1200 TFT-LCD panel
General Description
The driver board is mainly used in the field of vehicle-mounted,safety surveillance, whichcan realize OSD and 180 degree completely inverted screen function , while solved sound interference coexisted in mainstream manufacturers of in-vehicle LCD ,Screen of TFT-LCD or LED resolution is up to 1920*1080,Compatible with LCD panel of mainstream manufacturers ,Such as SUMSUNG,CMO,AU.LGP,SHARP.,BOE and so on .IT can represent truly the color of image and sound in real world. Key IC adopt MSTAR single chip ,the program of TSUMV39LU(optional TSUMV29LU chip),has mature and stable system
- jumper cap to choose a positive screen or 180 degrees down screen
- selection resolution by jumper cap
- Selection Universal Video inputs or anti-jamming video input by jumper cap
- Automatically detect input video format
- 9V~34Vdc wide power input
- Frame rate conversion
- 2.5D video decoding ,brightness separation, 3D video dynamic noise reducation
- 3D video dynamic Adaptive line-by-line exchange
- Automatic 3:2 and 2:2 format detect and restore
- 4:3 and 16:9 switching over, non-linear scaling imagesMSTAR ACE-5 picture engine, it can adjust dynamically picture's color , contrast ratio, definition etc.
- Color OSD, Operating menu humanization
- Reliable EMC and treatment measure of anti-static
- Supports control of treble or bass ,Stereo input(optional)
Packaging and warehouse stock:package with plastic bags and cartons.
Certifications:we have won authentication of ISO9001:2008 and won eight national patents.
Factory with professional workers and technical machines.
