OF LCD Touch-Control Display With USB Video Input
US$ 150 - 160
/ Piece
1 Piece(Min. Order)
- ShenZhen
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OF LCD Touch-Screen Display for ATM, VTM, Kiosk, HMi, Game Machine | |
| Model Number | CND-A070PM-NI | Type | TFT |
Product Description
Product Description

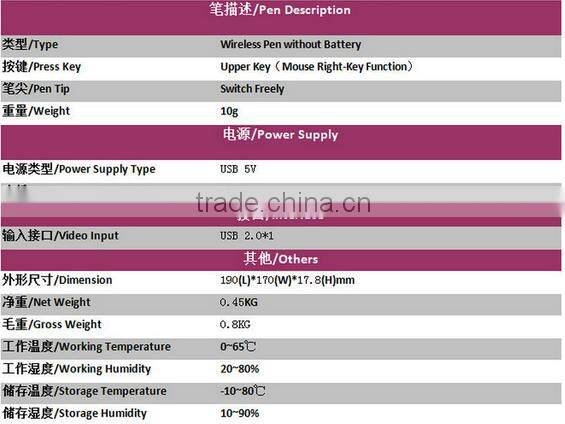

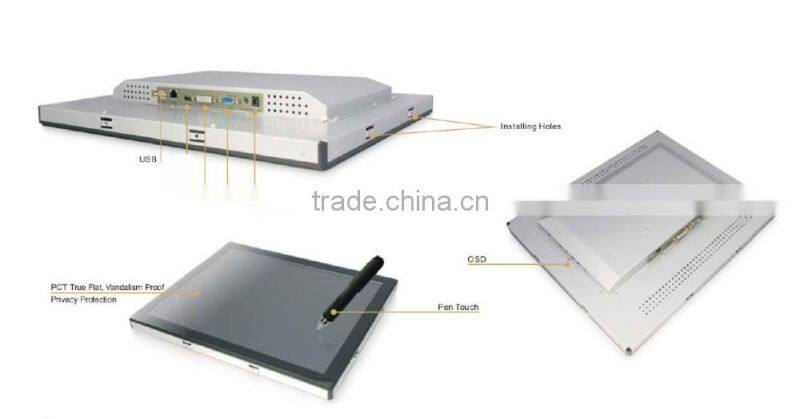

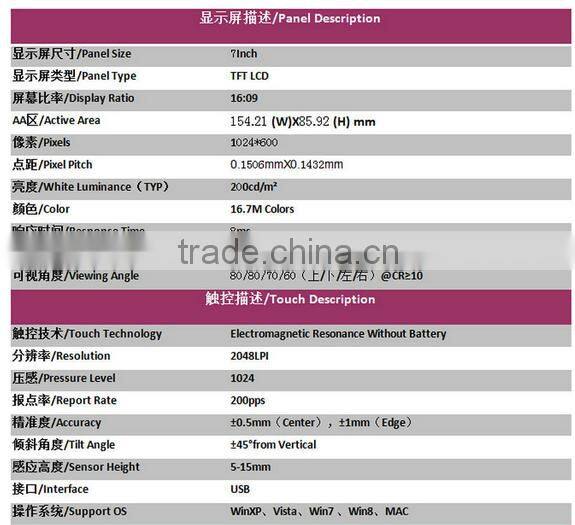

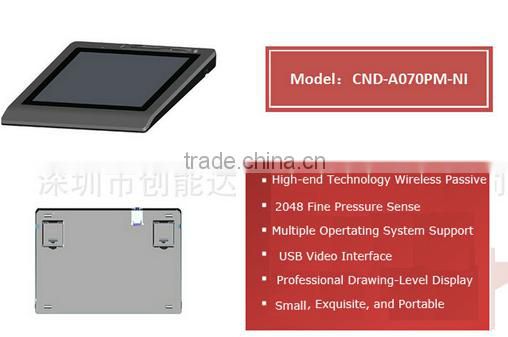

Product Name: OF LCD Touch-Control Display with USB Video Input
Model No.: CND-A070PM-NI
Key Feature
- Top Technology: Wireless, Passive
- 2048 Level fine Pressure Sensitivity
- Multi Operaton System Support
- USB Video Input
- Professional Drawing-level Display Screen
- With Passive Electromagnetic Pen Input
- Small, Exquisite and Portable
- OEM Solution: Size, Anti-dust, Water-proof, Anti-peeping, Explosion Proof, Self-destruction
- Enclosure: Metal, Plastic
- Application: ATM, VTM, Kiosk, HMi, Game Machine
- Product Size: 7", 8.4”,10.4” , 15”,17”,19”,21.5”,22” or OEM Size
Open Display Product Speceification
Open Frame Display Serial:
| Indutial Integrated Display Serial Products | |||||
| 10.4 Inch | 15 Inch | 17 Inch | 19 Inch | 21.5 Inch | |
| Panel Ratio | 4:03 | 4:03 | 4:03 | 4:03 | 19:09 |
| Resolution | 800*600 | 1024*768 | 1280*1024 | 1280*1024 | 1920*1080 |
| Active Area(mm) | 212.5x159.5 | 306x229.5 | 339.5x272 | 377.3x302 | 476.6x268.1 |
| Brightness | 400 | 400 | 350 | 350 | 200 |
| Contrast Ratio | 400:1 | 400:1 | 1000:1 | 1000:1 | 1000:1 |
| Backlight | LED | CCFL/LED | LED | LED | LED |
| Display Color | 16.2M | 16.2M | 16.2M | 16.2M | 16.2M |
| Viewing Angle(H/V) | 130°/140° | 160°/160° | 160°/160° | 160°/160° | 170°/160° |
| Life Time (Hours) | 50000 | 90000 | 90000 | 90000 | 90000 |
| Whole Plane Projection Capacitor | Yes | Yes | Yes | Yes | Yes |
| Conventional Projection Capacitor | Yes | Yes | Yes | Yes | Yes |
| Conventional Surface Capacitor | Yes | Yes | Yes | Yes | Yes |
| Explosion Property | Yes | Yes | Yes | Yes | Yes |
| Pen Input | Yes | Yes | Yes | Yes | Yes |
| Light Sensor | Yes | Yes | Yes | Yes | Yes |
| Operation Systyem | Windows XP / Vista / Win7 / Win8 /32 & 64, Mac OS | ||||
| I/O Interface | Touch Control: 1xUSB; 1xSerial Port(RJ45 Convert to RS232) | ||||
| Installation | Signal Input: VGAx1, DVIx1 | ||||
| Working Enviroment | Temperature: 0-55℃; Humidity: 20~85% | ||||
| Storage Enviroment | Temperature: -10~60℃; Humidity: 10~90% | ||||
Company Information
CND RD Team
Quality Assurance

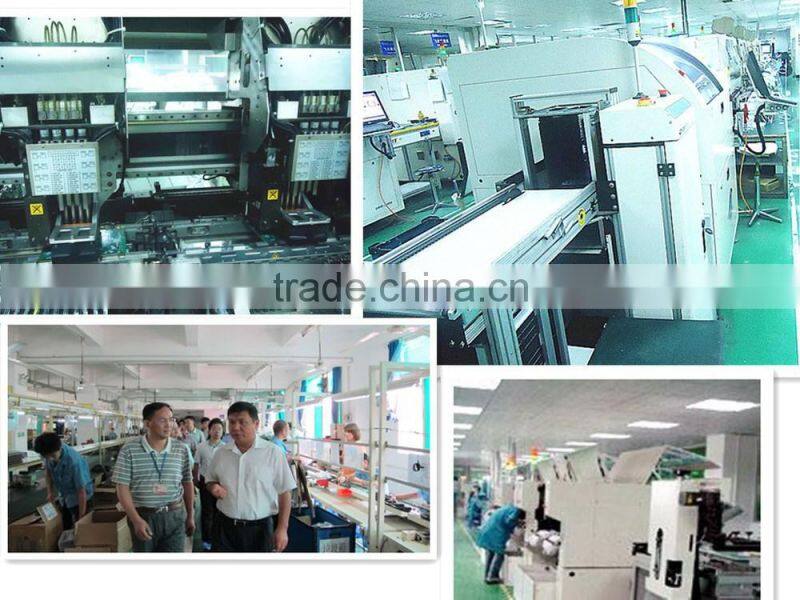

Workshop and equipments
CND Partners
CND Certificates: ISO, Patent, Hi-Tech

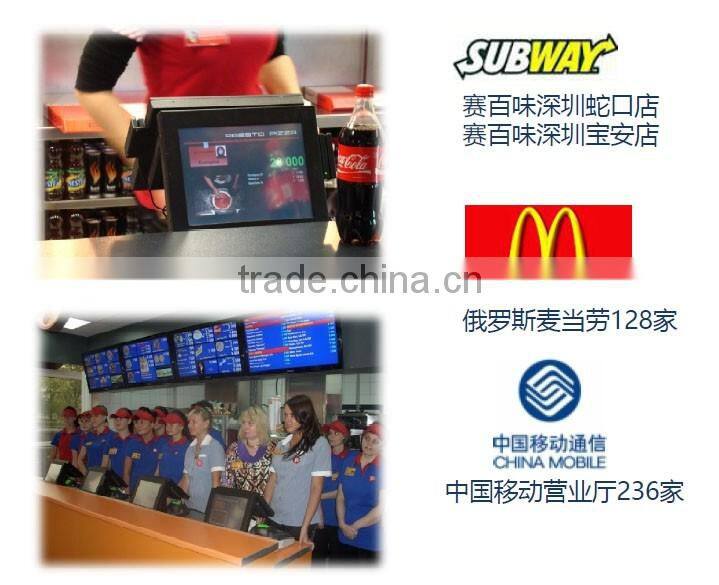

is the best choice for LCD/LED main board and Integrated Display solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. choose CND, choose a mutual win-win partner.
