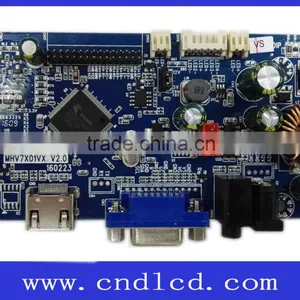

Low Price Universal Full HD LCD Display Monitor Controller Solutions Integrated with Inverter

Product Name:  Low Price Universal Full HD LCD Display Monitor Controller Solutions Integrated with Inverter

Model:  MHV7X01

LCD Driver Controller Card Board Key Feature

1. This Board is used to match TFT LCD Panel for LCD Monitor Display,

Advertising machine or digital photo frame;

2. supports resolution up to 1920*1200 Dot to Dot; LVDS output max Full HD 1920*1200.

3. Input Signal VGA + HDMI,

4. Display color up to 24bit.

5. Line frequency is between 20HZ to 94.5HZ, Field Frequency 56HZ to 75HZ, synchronously automatic detection, the method requires synchronous signal of separation of Line and Field.

6. It’s with Audio amplifier function, power output 2W x2

7. With LED inverter, to drive panel not larger than 32 Inch.

 LCD Driver Controller Card Board Product Specification

VGA: Analog RGB(0.7Vp-p),(TTL)

Input Signals:HDMI + VGA

Support Mode:DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+,WSXGA, WSXGA+, WUXGA, etc.

Color: 24bit

Line Frequency: 30-94.5KHz

Field frequency: 56-75Hz

Output: Dual LVDS Standard

Audio Power Output: 8ohm 2W×2 (Optional)

Control Key Board: POWER,BRI+,BRI-,AUTO,NENU,LED_R,LED_G

OSD Menu:Brightness, Contrast, Auto Correction, Phase, Clock, Line Position, Function, Reset

OSD Language(Optional):English, French, Italian, Spain, Japanese, etc

Power Input: 12 V(+/-0.6V)(DC)(without Amplifier, can be 5V)

Power Mode: Normal Work mode

PCBA Size: 107mm(L)×52mm(W)×16mm(H)

Plug & Play: Support

Power Management: Standby < 1W

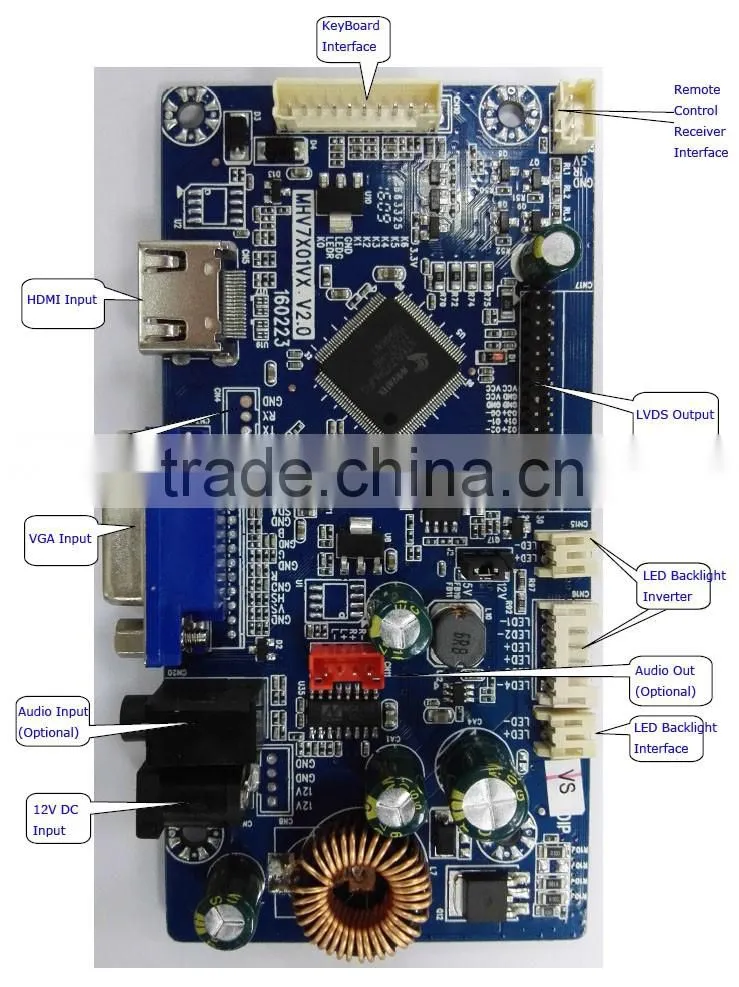

 LCD Driver Controller Card Board Product  Layout
