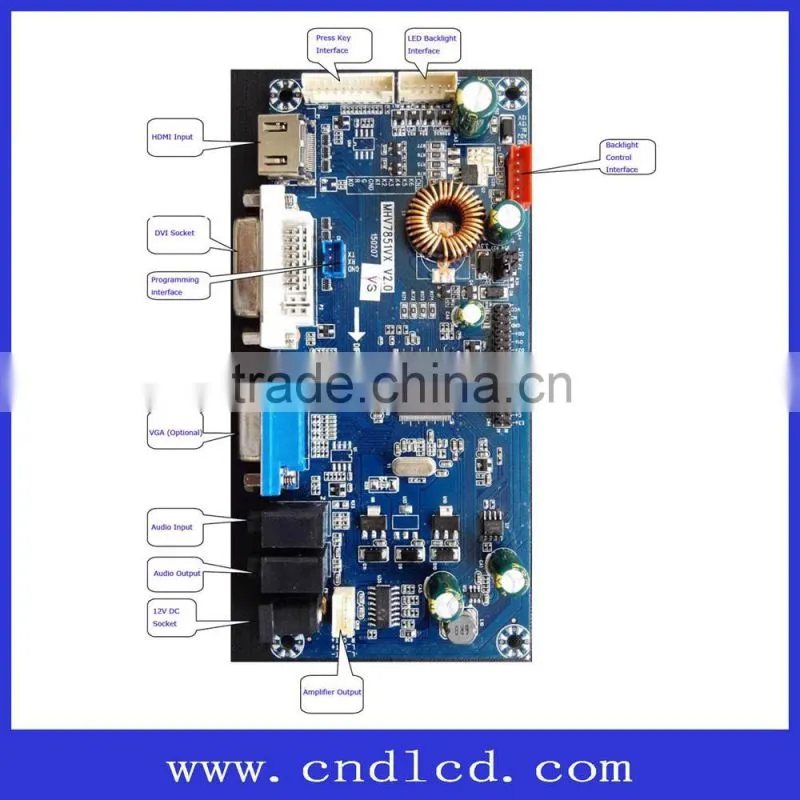

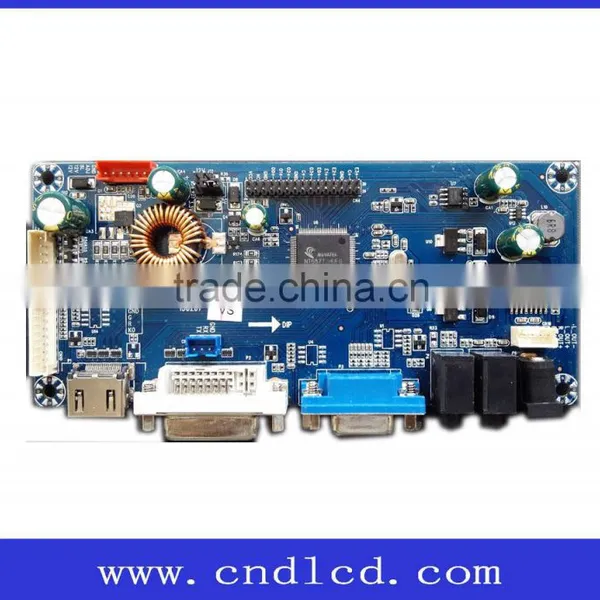

Product Name: Full HD LCD Monitor main Mother Driver Controller AD AV board with HDMI DVI VGA & 4-way backlight Power supply
Model No.: MHV7851
VGA+DVI+HDMI (With Sound)
4-way backlight power supply +Smart Backlight adjustment
Built-in HDCP KEY
FPS/RTS Game Function + Special Effects
Product General Description:
This Board is mainly used for TFD LCD Panel for LCD Monitor, Advertising Machine or Digital Photo Frame. Max support Resolution WUXGA 1920x1200 point to point display. LVDS outputs max Full HD 1920x1200; Input Signal VGA R/G/B, and DVI, HDMI, color reappearance 24 BIT. horizontal frequency is between 20 and 94.5HZ, field frequency is between 56 and 75HZ, with Synchronous automatic detection; the Synchronous way requires the Synchronous TTL signal.
It’s with Audio amplifier, output power 2Wx2. Volume can be controlled by press key. It’s able to drive backlight for LED panels.
Product Specification:
Input Signal:VGA: Analog RGB(0.7Vp-p),+ TTL, + DVI:TMDS +HDMI V1.4 Adobe color space
Support Model:DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+,
WSXGA, WSXGA+, WUXGA, Etc.
Color: 24bit
horizontal frequency: 30-94.5KHz
field frequency: 56-75Hz
Output Signals: Dual-LVDS standard
Audio Power Output: (2W×2)(8ohm)
Control Press-key: POWER,BRI+,BRI-,AUTO,NENU,LED_R,LED_G
OSD Menu:Brightness, Contrast, Auto, Phase, Clock, Field Position, Function, Reset;
OSD Language (Option):Chinese, English, French, Italian, Arabian etc.
Power Input: 12V(+/-0.6V)(DC)
Power Operation Model: Normal
Product Size: 143mm(L)x64mm(W)x16mm(H)
Plug & Play: Support
Power Management: Standby <1W
One Year Quality Warranty;
Provide 1‰ free spares with all goods;
Flexible Software to meet any custom request;
CND LCD monitor or TV Controller Driver Board Product Catagory
CND LCD monitor or TV Controller Driver Board Application:
Q: Where are you located? How can I get there?
A: Our office is in Shekou Nanshan Shen Zhen. It's very close to ShenZhen Bay. it takes just 0.5h from HK to ShenZhen Bay.
Q: We are using several panel. how to match and change the software?
A: Our software supports panel select by jumpet hat. no need change software for different panel.
Q: What's delivery time? what's the shipping methord?
A: 15 days delivery time after get depositb. we are 100% be sure delivery on time. we can accept shipment via sea or air as customer requested.
Q: Who we are? what's our Brand?
A:We are CND Electronic Technology (ShenZhen) Co., Ltd.
is our registered Brand.
Q: What's our core product and services?
A: AD/AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions
Q: What are our product applied in, and who is our Customer?
Q: What are our capability and advantages?
6. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
is the best choice for LCD/LED main board solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
