Classroom /POS/ ATM Touch Screen Interactive monitor 15 17 19 21.5 inch
- 10000 Piece / Pieces per Month
- FOB SZ1
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CND | Model Number: | Double touch display ATM machine |
Type: | TFT |
Product Description
Panel Size: 7", 8.4",10.4" , 15",17",19",21.5",22" OEM
- Display Ratio: 16:9
- Power Supply: USB 5V
- Response Time: 8ms
- Input Pen: Wireless Passive Electromanetic Pen
- Touch Technology: Electromagnetic Passive Resonance
- Active Area(mm): 216.93 x 136.6
- Resolution: 1024 x 768
- Viewing Angle: 85/85/85/85 (L/R/U/D)@CR>=10
- Product Name: Open Frame LCD Touch-Panel Display For ATM VTM Kiosk HMI
Packaging Details: | Bubble Bag, Shipping Carton, Open Frame LCD Touch-Panel Display For ATM VTM Kiosk HMI |
Product Name: Open Frame LCD Touch-Panel Display For ATM VTM Kiosk HMI
Model No.: CND-A101PM-NIMI
OF Touch Screen Monitor Gerneral Description

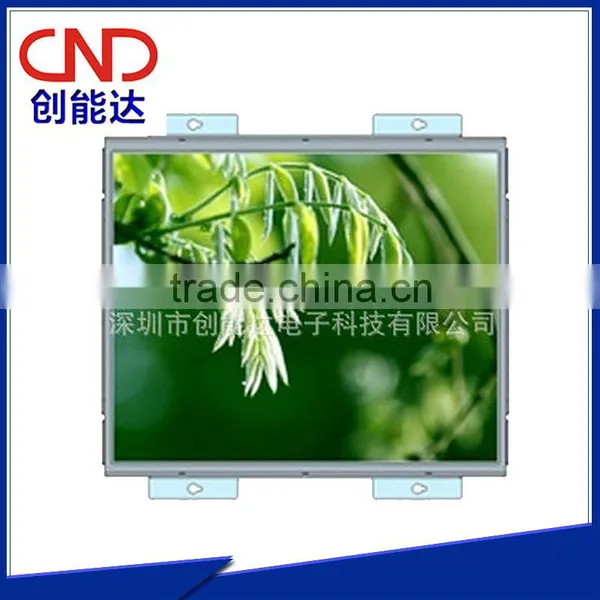

Open Frame Touch Screen Monitor, for Short OF, Mainly used for ATM, VTM, Kiosk, HMI, Game Machine, etc;
Size: 8.4”,10.4” , 15”,17”,19”,21.5”,22”
Hardware of Open Frame Touch Screen Monitor is much similar to common touch screen, OF is more flexible, Here are some application,
1. Open Frame Material is as follows:
1-1: Metal Enclosure
Application: order quantity no more than 1K, no need Mould, but not suitable for PCT and Multi-touch screen.
1-2: Plastic Enclosure
Application: order quantity more than 1K, or open-mould is acceptable to customer; good-looking, stable, lowering cost, suitable for various kinds of Touch Screen, especially PCT Touch Screen is only suitable for Plastic Enclosure.
1-3: Metal Enclosure +Flat PCT Touch Screen Monitor: Touch Screen itself can act as OF front Enclosure when OF with Flat Touch Screen is required
2. OF Can use Restive Screen, SAW Screen, IR Screen, SCT, multi-touch (double-touch) Capacitive PCT, Flat PCT; and the structure and size of OF are mostly Customized (OEM).
3. A/D board of OF is same as Desk-top Touch Screen Monitor

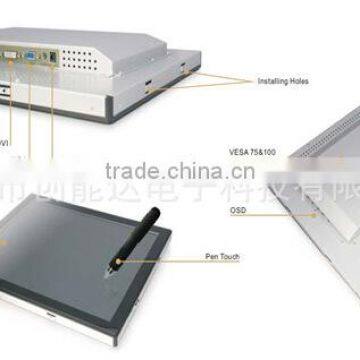

3-1: Open frame touch-screen monitor: Projection Flat Capacitive Touch-screen panel: Technology Advantage: PCT Multi-touch, Flat Pane (IP65), Explosion Proof, Anti-dust, Water-proof, Anti-peeping, Light Sensor, Electromagnetic hand writing, VESA75 &100, Flexible Installation( In-wall), VGA+DVI, USB Touch, Support OS Win8
Product Size: 15”, 17”, 19”, 21.5”
3-2: Technology Advantage: 5 wire Resistive touch panel, SAW touch-panel, IR touch-panel; Explosion Proof, Anti-dust, Water-proof, Anti-peeping, Light Sensor, Electromagnetic hand writing, VESA75 & 100, Flexible Installation; VGA+DVI, USB Touch, Support Win8
Product Size: 8.4”,10.4” , 15”,17”,19”,21.5”,22”
IndutialIntegrated Display Serial Products | ||||||
| 10.4 Inch | 15 Inch | 17 Inch | 19 Inch |
| 21.5 Inch |
Panel Ratio | 4:03 | 4:03 | 4:03 | 4:03 | 19:09 | |
Resolution | 800*600 | 1024*768 | 1280*1024 | 1280*1024 | 1920*1080 | |
Active Area(mm) | 212.5x159.5 | 306x229.5 | 339.5x272 | 377.3x302 | 476.6x268.1 | |
Brightness | 400 | 400 | 350 | 350 | 200 | |
Contrast Ratio | 400:1 | 400:1 | 1000:1 | 1000:1 | 1000:1 | |
Backlight | LED | CCFL/LED | LED | LED | LED | |
Display Color | 16.2M | 16.2M | 16.2M | 16.2M | 16.2M | |
Viewing Angle(H/V) | 130°/140° | 160°/160° | 160°/160° | 160°/160° | 170°/160° | |
Life Time (Hours) | 50000 | 90000 | 90000 | 90000 | 90000 | |
Whole Plane Projection Capacitor | Yes | Yes | Yes | Yes | Yes | |
Conventional Projection Capacitor | Yes | Yes | Yes | Yes | Yes | |
Conventional Surface Capacitor | Yes | Yes | Yes | Yes | Yes | |
Explosion Property | Yes | Yes | Yes | Yes | Yes | |
Pen Input | Yes | Yes | Yes | Yes | Yes | |
Light Sensor | Yes | Yes | Yes | Yes | Yes | |
Operation Systyem | Windows XP / Vista / Win7 / Win8 /32 & 64, Mac OS |
| ||||
I/O Interface | Touch Control: 1xUSB; 1xSerial Port(RJ45 Convert to RS232) | |||||
Installation | Signal Input: VGAx1, DVIx1 | |||||
Working Enviroment | Temperature: 0-55℃; Humidity: 20~85% | |||||
Storage Enviroment | Temperature: -10~60℃; Humidity: 10~90% |
Our Services
1. Established in 2006, Located in ShenZhen, Over ten years experiences manufacturing.
2. Main products: Main board solutions for LED/LCD monitors, TV, which applied in Computer, advertising, Vehicle, industrial, hospital, Financial industries, home appliance.
3. One-stop solution, save your costs & times;
4. With Strong R&D team, provide you professional technique supports and good service
5. OEM/ODM and small/large orders are welcome;
6. High quality, On-time delivery, safe shipment, and excellent after-sale service.
7. In China, the biggest customers CRRC Corporation Limited, and Financial industrial such as ABC, BOC, CBC, etc.
