Home > Consumer Electronics > Display & Accessories > LCD Module > High Quality BNC Main Board Manufacturer for Industrial-Control LCD Monitor

High Quality BNC Main Board Manufacturer for Industrial-Control LCD Monitor

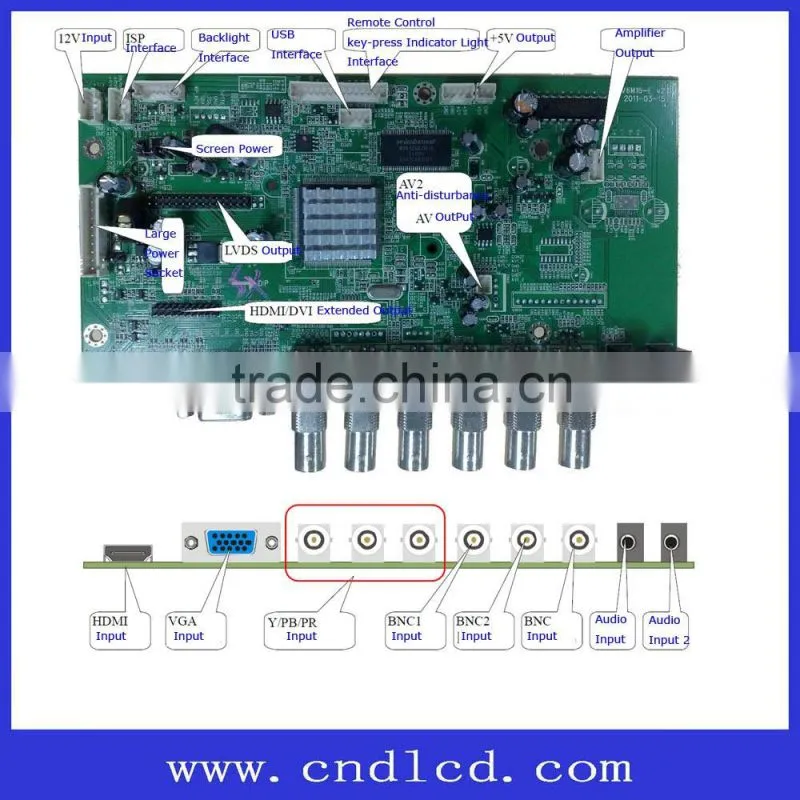

High Quality BNC Main Board Manufacturer for Industrial-Control LCD Monitor photo-1

High Quality BNC Main Board Manufacturer for Industrial-Control LCD Monitor photo-2

US$ 15 - 20 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CND

Model Number:

AV6M16-E

Contact Supplier Request Quote Chat Now

CND Electronic Technology (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CND

Model Number AV6M16-E

Type TFT

Product Description

High Quality Main Board Manufacturer for Industrial LCD Modules

Model No.: AV6M16-E

Main Features & Application:

1. Analog High Definition port signal input maximum supported 1080P formats

2. the HDMI support to 1.3, HDCP support to 1.1

3. 3D video decode and luminance separation.

4. support 1080i's 3D video dynamic Adaptive line-by-line exchange

5. 3D video dynamic noise reduction

6. automatic 3:2 or 2:2 format test and restore; 4:3 or 16:9 switching over, non-linear scaling images

7. The MSTAR third generation ACE picture engine, it can adjust dynamically picture's color , contrast ratio, definition and so on

8. Perfect industrial set mode, convenience for productive maintenance.;

9. Dependable EMC and electrostatic prevention processing method

10. Standby <1w (according to AC the electrical source to decide), energy conservation.

11. True colour OSD, humanization operation menu, support some high level function like channel editing

12. Support USB2.0 interface

Product Specification:

SCREEN	TYPE	TFT-LCD
	RESOLUTION	Max.:1920X1080
	INTERFACE	SIGNAL/DUAL 8/10bit LVDS;
	VOLTAGE	3.3V,5V,12V
PC-RGB	MODE	DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+, WSXGA
	HORIZONTAL SYNC RANGE	30-75KHz
	FIELD SYNC RANGE	56-75Hz
	DISPLAY COLORS	16777216
	MAX MODE	1920X1080@60Hz
INPUT SIGNAL	AV/ S-Video/ YPBPR	COLOR SYSTEM:PAL/NTSC/SECAM SYSTEM
		AVSIGNAL: CVBS/1.0Vp-p@75ohm
		S-VIDEO:Y:1Vp-p@75ohm /C: 0.286Vp-p@75ohm
		480i/P,576i/P,720P,1080i/P
		BNC OPTION: BNC INPUT, BNC OUTPUT
	RGB	SYNC : HORIZONTAL Field SEPARATION ,TTL, POSITIVE OR NEGATIVE
	RGB	SIGNAL RANGE : 0.7Vp-p@75ohm
	HDMI/DVI	SOPPORT FORMAT: 480i/P,576i/P,720P,1080i/P
	HDMI/DVI	COMPATIBLE: HDMI 1.3 /HDCP 1.2
	Audio	SIGNAL RANGE : 500mV rms
	USB	SUPPORT MP3 JPG PICTURE
OUTPUT SIGNAL	AV	SIGNAL RANGE :CVBS 1.0Vp-p
	Audio	POWER : 3W * 2
	Audio	SOCKET:4Pin/2.0mm SPACE
CONTROL KEY-PRESS	FIVE/SEVEN KEY(OPTION):POWEER/MENUU/INPUT OPTION/CHANNEL+/CHANNEL-/VOLUME+/VOLUME-
OSD MENU:	Brightness, Contrast, Auto-correction, Horizontal &field position, Function set, Color system, Language, Background, Noise reduction
OSD LANGUAGE(OPTION):	Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Portuguese, Turkish
POWER INPUT:	B:5Vstb,12V,5V ,5V/12V
POWER INPUT:	EXTERNAL Adapter: 12VDC
SIZE :	189.0mm(L)×100mm(W)×18mm(H)
PLUG&PLAY FUNCTION :	SUPPORT

Packaging & Shipping

Our Services

One Year Quality Warranty;

Provide 1‰ free spares with all goods;

Flexible Software to meet any custom request;

CND LCD monitor or TV Controller Driver Board Product Catagory

CND LCD monitor or TV Controller Driver Board Application:

Company Information

FAQ

Q: Where are you located? How can I get there?

A: Our office is in Shekou Nanshan Shen Zhen. It's very close to ShenZhen Bay. it takes just 0.5h from HK to ShenZhen Bay.

Q: We are using several panel. how to match and change the software?

A: Our software supports panel select by jumpet hat. no need change software for different panel.

Q: What's delivery time? what's the shipping methord?

A: 15 days delivery time after get depositb. we are 100% be sure delivery on time. we can accept shipment via sea or air as customer requested.

Q: Who we are? what's our Brand?

A:We are CND Electronic Technology (ShenZhen) Co., Ltd.

is our registered Brand.

Q: What's our core product and services?

A: AD/AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions

Q: What are our product applied in, and who is our Customer?

A: by far, our AD board solutions have applied in:

1. Mobile-TV of High-speed Railway Train for CRRC, and for subway train;

2. Touch-Screen ATM Display of BOC (Bank of China), CBC (Contruction Bank of China), ABC, etc

3. Monitors of industrial control, for instance Security-montoring

4. Monitors of some Famous Chinese Brand, for example HKC, AOC, ViewSonic, etc.

Q: What are our capability and advantages?

A: We've proud that

1. CND is the only AD board solution company whose 2K board have been sold more than 100K. and

2. We're the first company developed UHD 4K board solutions.

3.CND is the first one who have passed Freesync Cetification.

4. CND is the first one developed Type-C 4K *2K board.

5. Integrated PQ services, including GAMMA, OD, AdobeRGB 100%, free sync dynamic OD, FPS/RTS precise color...

6. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension

is the best choice for LCD/LED main board solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
