V39 AV Board for Industrial Military Marine Grade LCD Monitor

V39 AV Board for Industrial Military Marine Grade LCD Monitor thumbnail-3

V39 AV Board for Industrial Military Marine Grade LCD Monitor photo-1

V39 AV Board for Industrial Military Marine Grade LCD Monitor photo-2

V39 AV Board for Industrial Military Marine Grade LCD Monitor photo-3

US$ 12 - 15 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CND

Model Number:

AVX9-CZ

Contact Supplier Request Quote Chat Now

CND Electronic Technology (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CND

Model Number AVX9-CZ

Type TFT

Product Description

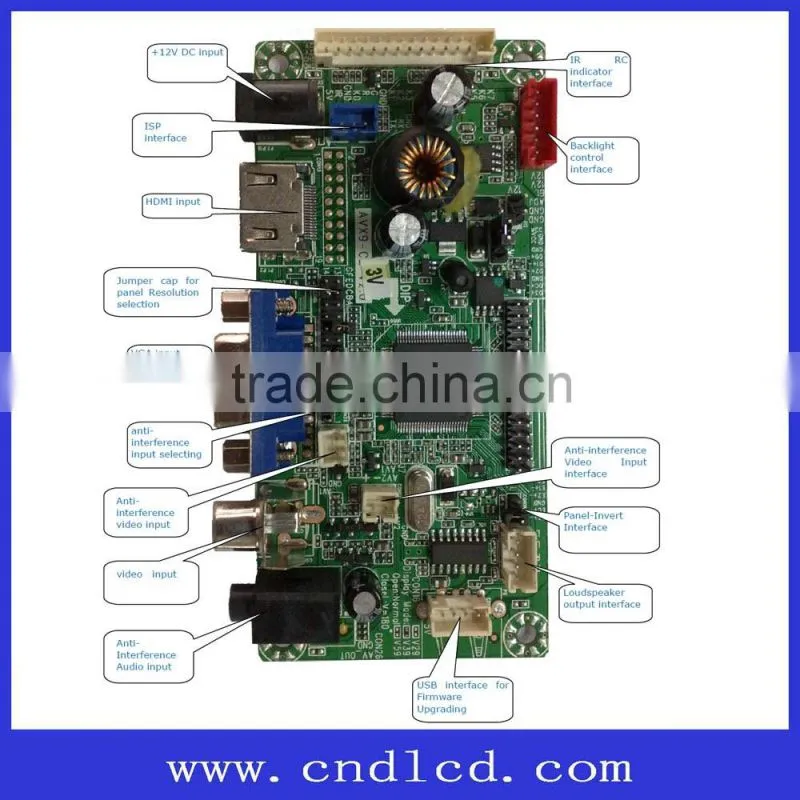

Product Name: V39 AV Board for Industrial Military Marine Grade LCD Monitor

Model No.: AVX9-CZ

Industrial LCD Monitor Controller Driver AV Board Key Feature

. LCD computer motherboard with vga hdmi usb

.Working voltage:+12V

.OSD language:English, French, German, Italian, Spanish, Portuguese,

.Standby Power Consumption < 0.3W

.Support USB firmware upgrade and media player function

.HDMI VGA USB 2*AV

. Single/Dual Channel LVDS

. Supporting up to1920*1080 resolution

Industrial LCD Monitor Controller Driver AV Board General description

This wide range temperature A/D board is designed for industrial, marine and military grade LCDs. Its wide operational temperature range (-40 ~+80°C) can meet the requirements of the harsh ambient environments. It supports resolution from 640*480@60Hz up to 1920*1200@60Hz. This board has been applied to drive Mitsubishi, AUO, NEC LCD panels.

AVX9 board is compatible with LCD panel of mainstream manufacturers,Such

as SUMSUNG,CMO,AU.LGP,SHARP.,BOE and so on. It can support less than

26 inch LCD panels which resolution is up to 1920×1080.

Industrial LCD Monitor Controller Driver AV Board Specification :

IC	TSUM39LU(can choseTSUM29LU)
OSD language	English , French , German, Italian, Spanish , Portuguese
Match panel	resolution	Max.:1920X1080
	interface	Single/dualLVDS
	voltage	3.3V,5V,12V
Input signal	computer	Signal RGB(0.7Vp-p),Synchronous separation line (TTL)
	video	Color sytem	PAL/SECAM/NTSC
		Video range	1.0 Vp-p ±5%
	Audio	Earphone input	0.2 – 1.5 Vrms
Output signal	Audio	consumption:3W * 2 THD+N<10%
		socket:4Pin/2.0mm space
Control key	STANDARD SEVEN KEY:POWER/MENU/INPUT OPTION/CH+/CH-/VOL+/VOLCompatible five key
OSD menu:	Brightness, Contrast, Auto-correction, Horizontal &field position, Function set, Color system, Language, Background, Noise reduction
Power supply input:	4pin 2.0mm socket or 12V DC socket

Packaging & Shipping

Our Services

One Year Quality Warranty;

Provide 1‰ free spares with all goods;

Flexible Software to meet any custom request;

CND LCD monitor or TV Controller Driver Board Product Catagory

CND LCD monitor or TV Controller Driver Board Application:

Company Information

FAQ

Q: Where are you located? How can I get there?

A: Our office is in Shekou Nanshan Shen Zhen. It's very close to ShenZhen Bay. it takes just 0.5h from HK to ShenZhen Bay.

Q: We are using several panel. how to match and change the software?

A: Our software supports panel select by jumpet hat. no need change software for different panel.

Q: What's delivery time? what's the shipping methord?

A: 15 days delivery time after get depositb. we are 100% be sure delivery on time. we can accept shipment via sea or air as customer requested.

Q: Who we are? what's our Brand?

A:We are CND Electronic Technology (ShenZhen) Co., Ltd.

is our registered Brand.

Q: What's our core product and services?

A: AD/AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions

Q: What are our product applied in, and who is our Customer?

A: by far, our AD board solutions have applied in:

1. Mobile-TV of High-speed Railway Train for CRRC, and for subway train;

2. Touch-Screen ATM Display of BOC (Bank of China), CBC (Contruction Bank of China), ABC, etc

3. Monitors of industrial control, for instance Security-montoring

4. Monitors of some Famous Chinese Brand, for example HKC, AOC, ViewSonic, etc.

Q: What are our capability and advantages?

A: We've proud that

1. CND is the only AD board solution company whose 2K board have been sold more than 100K. and

2. We're the first company developed UHD 4K board solutions.

3.CND is the first one who have passed Freesync Cetification.

4. CND is the first one developed Type-C 4K *2K board.

5. Integrated PQ services, including GAMMA, OD, AdobeRGB 100%, free sync dynamic OD, FPS/RTS precise color...

6. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension

is the best choice for LCD/LED main board solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
