Product name:
CND manufacture TFT LCD monitor control AV board
1. This board is compatible with LCD panel of mainstream manufacturers ,Such as SUMSUNG,CMO,AU.LGP,SHARP.,BOE and so on.
2. It can support FULL HD 1920X1200 TFT-LCD panel
3. ALL port can use pin socket
4. One way HD digital multi-media port(HDMI)1.4,HDCP1.2 or DVI 1.0
5 One way VGA input
6. One way video input,can use RCA socket or BNC socket
7. One way audio input,useø3.5 standard earphone socket.
8. 3D video decoding(PAL/NTSC) bright color separation,space noise reducation function
9. Automaticlly detecting Video input
10. support4:3 and 16:9 display mode switch
11. 12V DC input
12. Be used in car display,monitor system
13. One way externer USB port,support updating
Product picture
Feature
TYPE |
TFT-LCD |
RESOLUTION |
Max.:1920X1080 |
INTERFACE |
SINGLE/DUAL LVDS |
Support mode |
DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+, WSXGA |
HORIZONAL SYNC RANGE |
30-94.5KHz |
FIELD SYNC RANGE |
56-75Hz |
panel voltage |
3.3V /5V /12V |
MAX MODE |
1920X1080@60Hz |
IC |
29/39/59 solution can be chosed |
OSD MENU |
Brightness, Contrast, Auto-correction, Horizontal &field position, Function set, Color system, Language, Background, Noise reduction |
OSD LANGUAGE(OPTIONAL) |
Simplified Chinese,English , French , German, Italian, Spanish , Portuguese , Dutch , Turkish, Korean, Japanese, Arabic, Persian, Russian, Thai, Vietnamese , Indonesia |
Audio output |
8Ω 3Wx2 |
Power input |
12V(+/-0.6V)(DC) |
Power management |
Standby consumption<1W |
Size |
108mm(L)×51.3mm(W)×18mm(H) |
PLUG&PLAY FUNCTION:: |
SUPPORT |
Packing
Q: We are using several panel. how to match and change the software?
A: Our software supports MULTI-RESOLUTION choice by changing jumper cat. no need change software for different panel.
Q: What's delivery time? what's the shipping way?
A: General sample order is in stock within 3 days; General order is about 15 days after get deposit; Flexible delivery time can be negotiable.

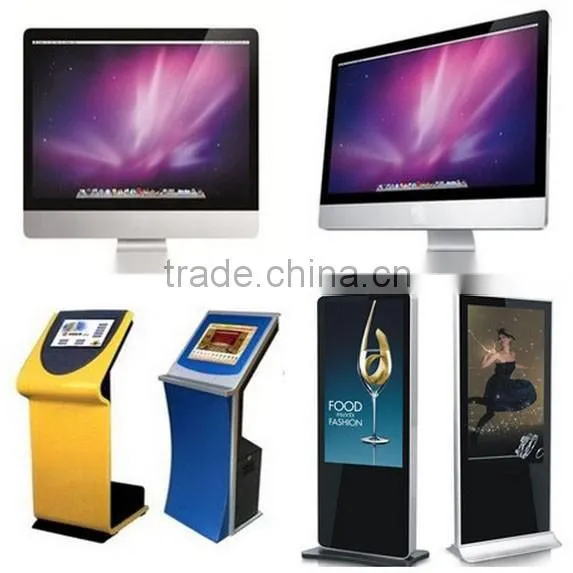

Q: What are our product applied in, and who is our Customer?
A: our AD board solutions have applied in:
1.Domestic rail,like subway, high-speed rail, train.. at least 80% market share in China.
2.Household &civil markets likeTV board, monitor board, QHD&UHD 4k*2k display board. Monitors of some Famous Chinese Brand, for example BOE, HKC, AOC, ViewSonic,Sony... etc.
3.Industrial monitor, The main board for POS and security monitor....
4. With strength of customizing board,like SONY PS4 Monitor board,Janpan Brother printer board....
5. Touch-Screen ATM Display of BOC (Bank of China), ICBC,CBC,ABC, etc
Q: What are our capability and advantages?
A: We've proud that:
1. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
2.Our products follow the standard of UL DI5501, ISO9001,RoHs & REACH.
