Product Details
Voltage: | Other, 36V, 250W | Design: | Brushless | Wattage: | 201 - 300w |
Product Description
wheel set | colour | unit | qty | brand | |

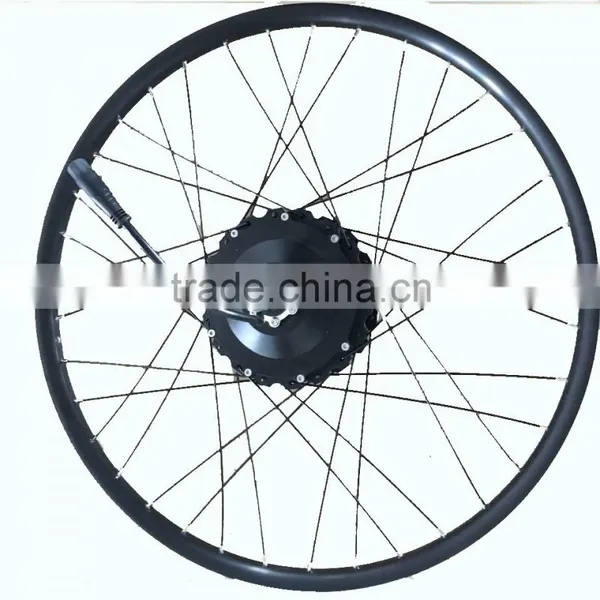

Rim | 20” DA16S 1.5*14G*36H Double wall middle BK ,two sides CNC,safety cable DB L6061 No LOGO | black/CNC | pc | 1 | MingDa |
motor | 20” DGW10,front motor Hall sine wave 36V/250W,On the left side of the line.12*36H*13G*100*140 nut,silver,NO LOGO,water proof cable connector.motor line:200mm+1600mm | light | suit | 1 | ShengYi |
spoke | 13G/14*136*36 UCP extended brass nipple | UCP | stick | 36 | HaiCheng |
battery set | |||||
batteery box | little frog battery box | black | suit | 1 | Greenway |
battery | 36V/9AH Panasonic cell little frog battery ,little frog battery,battery protection voltage 30.5V,the length of battery with line , 100mm<bullet> warning label with english | black | group | 1 | Greenway |
controller set | |||||

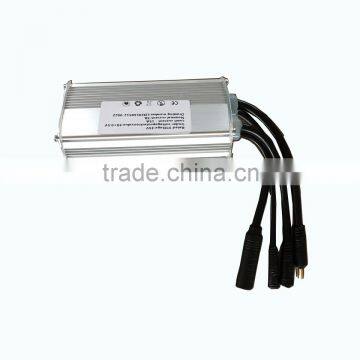

controller | XTKSIN 20" 36V ,low-voltage protection30.5V, four sections woltage:31.5V,34V,36V,38V,the length of every line 100mm,line of light and plug,water proof cable connector ,speed up line and plug.This controller should compatible theJiaTe790 intsrument and XianTong W108 instrument. | silver | pc | 1 | XianTong |
display | 790-36V,four sections woltage:31.5V,34V,36V,38V, light swich,default first gear,NO LOGO ,water proof cable connector<6core> ,the length of line:300mm(outgoing line 250MM),not include the length of plug | black | pc | 1 | JiaTe |
intergrated fast connectors | 1820mm, length not including the plug HF-Y1T3E-262A8 , water proof cable connector BK | black | pc | 1 | Julet |

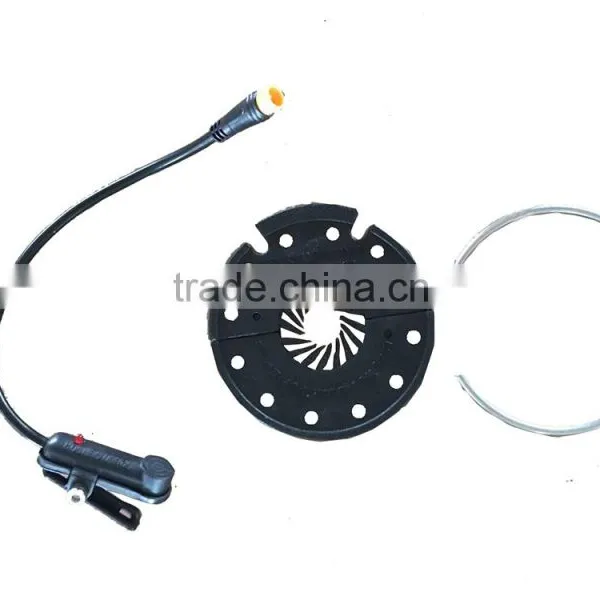

sensor | SPP-DH ,suit ,disk 12 the length of line:800MM ,not include the length of plug ,water proof cable connector<3core> note:need XianTong controller
| black | pc | 1 | JiaTe |
Established in 2000, JIAXING HONGRUI MACHINERY CO., LTD.is specialized in Bikes & E-bike Design, Manufacture and Service. We passed the system of management ISO9001:2008 in 2009. Now we are a technology-based company, integrating Developing, Manufacturing, Sales and Service together. We advocate Safety, Fashion and Green products, bringing riders the joy of cycling.
ONWAY is registered in China, Europe and North America. Our main products are City E-bikes, Folding E-bikes, Mountain E-bikes, Trekking E-bikes and Fat Tire E-bikes with EN15194 certificates. Our customers are from Germany, Netherlands, Belgium, France, Italy, Poland, Norway, Finland, Australia, America and Canada, etc.
With more than 25 years abundant experience and strong R&D ability in E-bike industry, we launch new models each year to meet different customers` needs and offer different E-bike business solutions for customers.
In 2015, we expanded our workshops to 20,000 square meters to enhance production ability and provide better working environment for staff in order to supply customers with high quality products and excellent service.
1. Why choose ONWAY?
We are a professional E-bike manufacturer with experienced engineering team in design & testing. Each bike is inspected and tested by our technicians before packaging. We mainly exported to European market with EN15194 certificates, high quality guaranteed, we have sales agent in Germany and main components (motor, battery) manufacturer have offices in Netherlands to provide customers with better and quicker service.
2. ONWAY E-bike Warranty
Frame: 36 months
Motor System: 24 months (motor and controller)
Lithium Battery & Battery Charger: 24 months
Components: 12 months (excluding tyres, brake pads, grips, chains and cables)
For any Warranty Claim, please contact ONWAY directly for any questions or concerns regarding the warranty.
3. Where is your factory?
ONWAY is based in Jiaxing City between Shanghai and Hangzhou in east coast of China, with convenient transportation, 1 hour from both big cities by car, half an hour by High Speed Train, and also close to Shanghai Port and Ningbo Port.
4. Payment Terms and Lead Time?
30% advance payment, balance payment to be paid against copy of B/L. We will arrange production after order and deposit confirmed. According to customer order quantity, normally lead time is 30-45 days.
5. Can I place a sample order?
Yes, sample order is ok for quality test, customer is supposed to pay the sample cost and delivery freight.
6. Can I get your catalogue and price list?
Catalogue is available upon request. Please list your interested model numbers, specify your order quantity, color, and more detailed requirements, then we will send you quotation with detailed information by e-mail.
7. What is the minimum order quantity (MOQ)?
Normally 50 sets each model, which possibly fits a 20” container. FCL. Different model with different MOQ, so please contact with us before you send us your PO.
Thank you for reading, contact us if you still have other questions or concerns!
