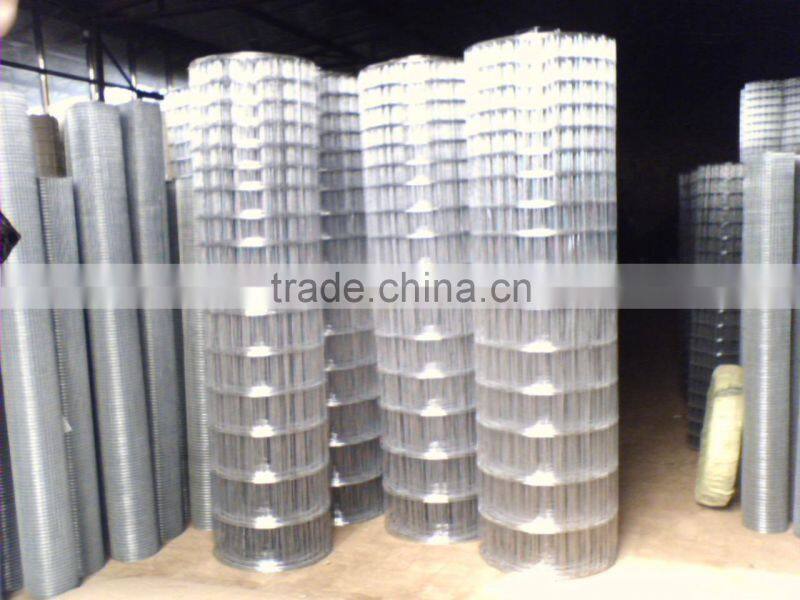

Welded Wire Panel (professional Products)

Hebei Jiuwang Metal Wire Mesh Co., Ltd.
Welded Wire Panel (professional Products) thumbnail-1
Welded Wire Panel (professional Products) photo-1
US$ 12 - 67 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Galvanized Steel Wire
Type:
Welded Mesh
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Material Galvanized Steel Wire
Type Welded Mesh
Application Protecting Mesh
Weave Style Plain Weave
Wire Diameter 0.5mm
Technique Welded Mesh
Model Number 1/4"
Brand Name JW



-------------------------------------------------------------------------------------------------------------------

Jiuwang Welded wire Mesh

welded wire mesh
factory ISO9001
wire dia:0.4-3mm
Mesh: 1/4",1/2",3/4",1",2",1"x2",3"x4"
Finished:galvanized/ PVC coated

-------------------------------------------------------------------------------------------------------------------

Features

Welded Wire Mesh PVC Coated  is made of high quality low carbon steel wire,welded wire mesh  divides into hot dipped galvanized and electro galvanized.The adoption plates the zinc craft after welding,it is made from high-quality iron wire by automatic equipment .The products have smooth mesh surface ,well-proportioned meshes ,strong welded points and bright luster.The mesh does not come loose even if cut in parts or being exerted force on parts .Compared with general iron wire,the products are better in respects of anti-corrosive and anti rust.

Use:used in the industry ,agriculture ,construction,transport and mining .Such as machine protection cover ,ranch fender ,garden fender ,window protection fender ,passage fender ,fowl cage ,egg basket and foodstuffs basket.

surface treated:Galvanized and PVC coated,stainless steel wire

Weaving and characteristics:

  • Hot dipped galvanizing after weaving
    Weaving with hot dipped galvanized iron wire
  • Electric galvanizing after weaving
    Weaving with electric galvanized iron wire
  • PVC coated welded wire mesh

-------------------------------------------------------------------------------------------------------------------

Specification



Specification List of Welded Wire Mesh:

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.





Galvanized Fencing Mesh:

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

2" x 3"

50mm x 75mm

2.0mm,2.5mm,1.65mm

3" x 3"

75mm x 756mm

2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

2" x 4"

50mm x 100mm

2.11mm,2.5mm

4" x 4"

100mm x 100mm

2.0mm,2.5mm

Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.





PVC Coated Welded Mesh:

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21

3/4" x 3/4"

19mm x 19mm

16,17,18,19,20,21

1" x 1"

25.4mm x 25.4mm

15,16,17,18,19,20

Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.2m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.



-------------------------------------------------------------------------------------------------------------------

About us

We are Hebei Jiuwang Metal Wire Mesh Comany.We have been engaged in steel grating and wire mesh since 1992.As one of the leading companies in China,we believe in great product and service every time,all the time.We would be so much grateful if you send us offers.



-------------------------------------------------------------------------------------------------------------------
