Help CenterPVC Coated Gabion Box (used for Retaining Wall)
Related Products
Specifications
PVC coated gabion box:1.Galvanized and PVC coated
2.60X80mm,80x100mm,80x120mm
3.anti rusted,water proof, long life

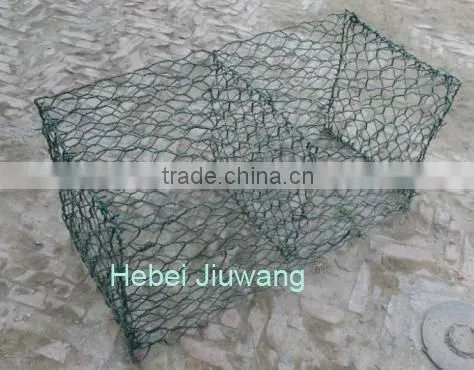

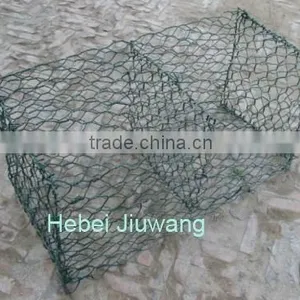

PVC coated gabion box:

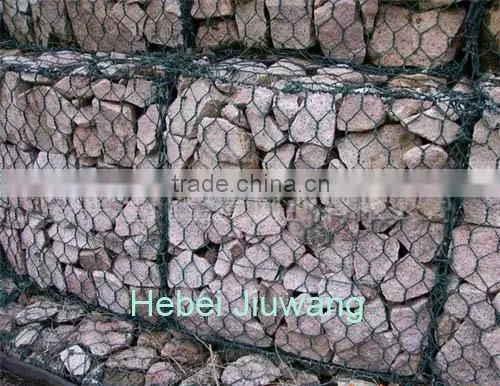

1. Usage: Control and guide of water or flood, Flood bank or guiding bank Preventing of rock breaking Water and soil protection Bridge protection Strengthening structure of soil Protection engineering of seaside area.
Type |
aperture |
main dia |
Selvage wire |
Binding wire |
Max width |
DL60 |
60X80 |
2.0-2.8 |
3.0-4.0 |
2.0-2.2 |
4M |
DL80 |
80X100 |
2.0-3.0 |
3.0-4.0 |
2.0-2.2 |
4M |
DL80W |
80X120 |
2.0-3.0 |
3.0-4.0 |
2.0-2.2 |
4M |
DL100 |
100X120 |
2.0-3.0 |
3.0-4.0 |
2.0-2.2 |
4M |
WL100W |
100X150 |
2.0-3.0 |
3.0-4.0 |
2.0-2.2 |
4M |
DL120 |
120X150 |
2.0-3.0 |
3.0-4.0 |
2.0-2.2 |
4M |
2. All gabions and mattresses are supplied with the baskets and are used to lace together the mesh panels during the erection process.
Mattresses and gabion baskets are also available with a 0.5mm thickness P.V.C. coating to enhance the resistance of the baskets to corrosion. This provides an overall increase in diameter of 1mm to all wires used in the manufacturing process.
3. The river mattress is a structure made of hexagonal double twisted wire mesh. River mattresses are filled with stones at the project site to form flexible and permeable, monolithic structures such as river bank protection and channel linings for erosion control.
