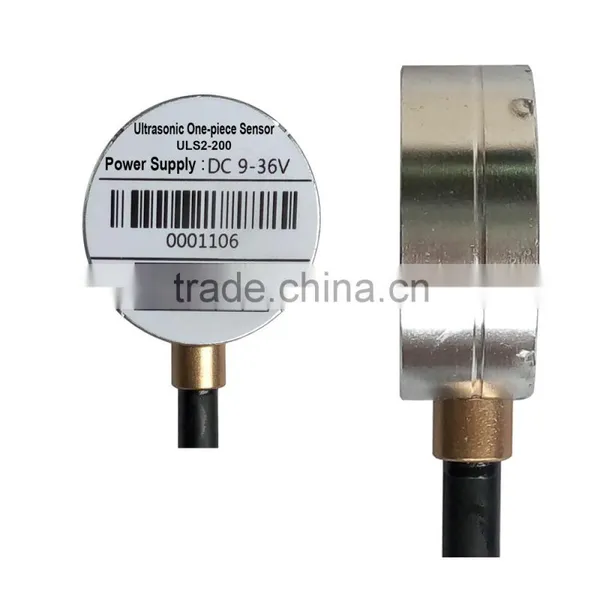

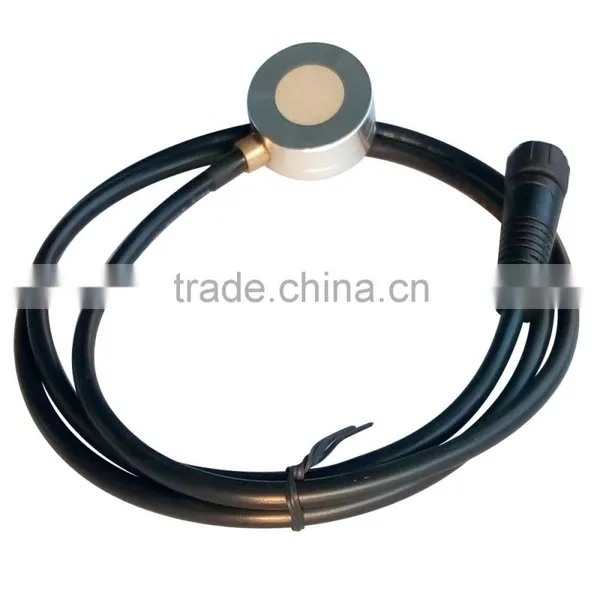

ULS2-200 Built-in Circuit Board External Non-contact All in One Ultrasonic Piezoelectric Transducer

Specifications of ultrasonic fuel level meter for fuel

This is water-proof  one-piece integration ultrasonic level sensor ,probe built-in circuit board . This Product is adopted by non-contact measurement of ultrasonic sensor technology, which is researched and developed by our company and it is initiated in China. It is also widely used in fuel consumption project and all products were sold abroad.

Feature of ultrasonic fuel level meter for fuel

1. High accuracy.
Resolution of sensor’s measurement for fuel height is 0.1mm.And its measurement accuracy is ±0.5%. It keeps higher accuracy even in highest or coldest outside environment.

2. Excellent stability.
Different from direct-contact measurement of float-type, pressure-type, magnetic sliding-type, fuel level sensor uses ultrasonic and non-contact measurement, which can avoid pollution and corrosion from fuel and keep stability in a long period of time.

3. Easy installment and maintenance.
You only need to install the sensor probe on lower surface of fuel tank. You don’t need to change its original measurement system or punch hole for it. Its original fuel meter operates as usual.

4. No pollution and lower consumption.
This non-contact measurement and non-punch hole for fuel tank can keep off pollution from fuel.

5. High reliability.
It can still work in bad environment and it is damp-proof, acid-proof, flame-retardant, anti-interference, intellectualized. This product can be used independently to check data from auxiliary display. It can also use with GPS, which sends data to background for statistics, analysisand query.

6.Application range.

The ultrasonic fuel level sensor is used for digital recording vehicle refueling, to prevent driver stealing oil , avoid the waste of resources, improve operational efficiency, and improve the traffic safety, strengthen the operation and management level.
This sensor is applicable to various types of vehicles such as trailers, concrete mixer truck, engineering machinery, sanitation trucks ,taxi ,bus , logistic truck ,and other.

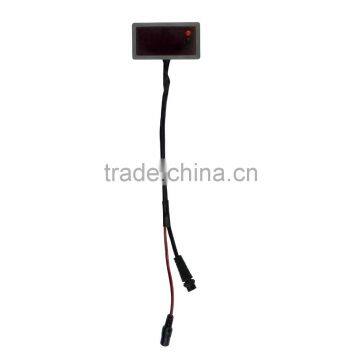

7.Interface for GPS or GPRS

It can be work with kinds of GPS tracker or other terminal date transmission device .

Notice

Notice

Stick the probe tightly on the bottom part where has already been marked.
Make sure there is no air between the film and the probe.

Set Container Material

1. Chose “0” can set tank material to “Iron material ”

2. Chose “1” can set tank material to “stainless steel ” ,”aluminium alloy ”,”Non-ferrous materials”

Others Setting

Set the maximum height of tank is 92cm

3 express echo number ,2 express state code

Final Show

Display screen date is “ 018.9 “ : express liquid level is 18.9cm

Abrasive Paper

Clean the installation point ,if the area is not smooth enough,please make it smooth using polishing paper,and make it clean.
