ULS-200 External Non-contact no Need Drill Hole Ultrasoinc Cheap Ultrasonic Flow Sensor Factory From China

Overview Of cheap ultrasonic flow sensor

This Product is adopted by non-contact measurement of ultrasonic sensor technology, which is researched and developed by our company and it is initiated in China. It is also widely used in fuel consumption project and all products were sold abroad.

Technical Parameters of cheap ultrasonic flow sensor

Features Of car sensor

1. High accuracy.

Resolution of sensor’s measurement for fuel height is 0.1mm.And its measurement accuracy is ±0.5%. It keeps higher accuracy even in highest or coldest outside environment.

2. Excellent stability.

Different from direct-contact measurement of float-type, pressure-type, magnetic sliding-type, fuel level sensor uses ultrasonic and non-contact measurement, which can avoid pollution and corrosion from fuel and keep stability in a long period of time.

3. Easy installment and maintenance.
You only need to install the sensor probe on lower surface of fuel tank. You don’t need to change its original measurement system or punch hole for it. Its original fuel meter operates as usual.

4. No pollution and lower consumption.
This non-contact measurement and non-punch hole for fuel tank can keep off pollution from fuel.

5. High reliability.
It can still work in bad environment and it is damp-proof, acid-proof, flame-retardant, anti-interference, intellectualized. This product can be used independently to check data from auxiliary display. It can also use with GPS, which sends data to background for statistics, analysisand query.

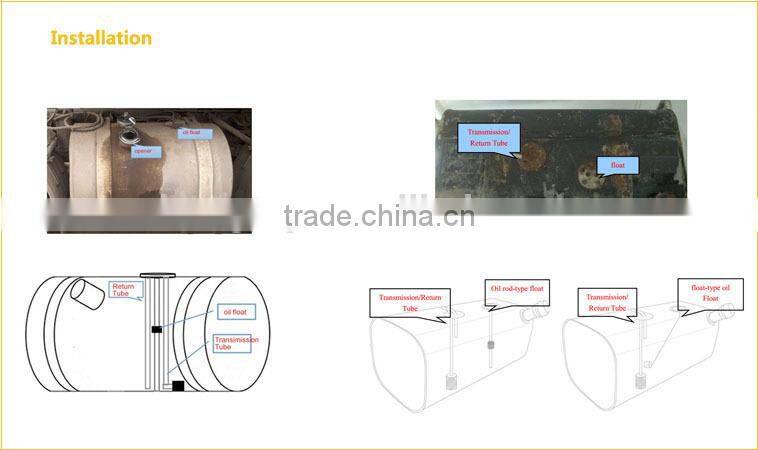

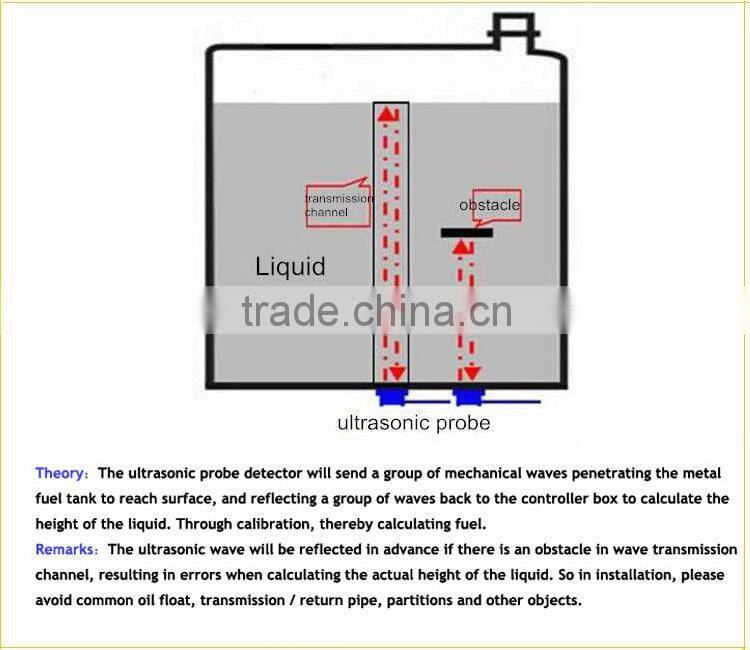

Installation of ultrasonic fuel level sensor

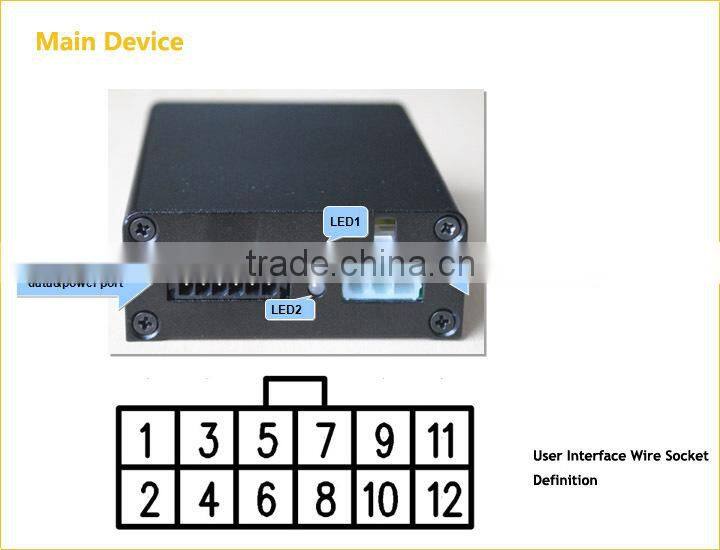

LED light notification

LED1:probe indicator

slow flash of green:normal

slow flash of red:abnormal

LED2:power indicator

slow flash of green:normal

slow flash of red:analog voltage output abnormal(contact with service people)

light not working:power abnormal(check power supply)

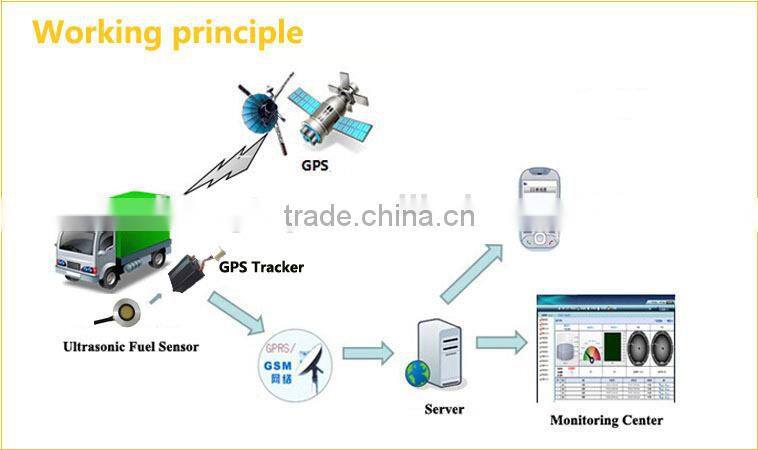

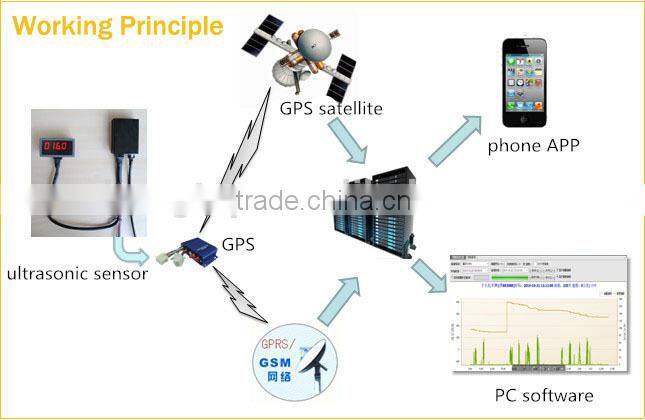

1. Can I use it with gps tracker?

     Yes, it support any gps tracker with 0-    6V analogue input or RS232 input. If RS232 interface, the gps tracker need to do integration with our sensor protocol.

2. Which is the gps tracker list it support?

     Any gps tracker with 0-    5V analogue input and RS232 input. such as A300, VT310, MVT400, MVT600 and etc.

3. What is the resolution?

 0.01mm. If multiple with section area, we can conclude the liter resolution, normally less than 1 liter fo r vehicle tank.

4. Can we measure the liter changing with it?

    Yes, create one map between level and liter, then can draw liter changing.

5. Why is it expensive than other floating sensor?

 Because ultrasonic sensor is more stable and higher resolution than floating sensor. no need drill hole on the tank .So do not compare with different type of sensor. Just compare with other capacitance sensor, our will be the most cost-effective one.

6. Do you have support for integration with our application?

    Yes, we have EE and SW engineers team to support for you with integration of our product.

7. Is it safe for using with gasoline?

    Sure, we have ExtdIIT certification.

8. Can we cut short to adopt our tank?

    No, it does not support user cutting short. We have another model F330 support customer resizing.

9.The most appropriate thick of tank wall ?

   ≤1cm

10.Where is the best place for installation ?

     The bottom of tank .

11.How to test ?

     When you testing , notice no air between the tank and the probe .and sure the tank is smooth .

12.Wire diagram

     Yellow cable : TX (RS232 sender, connect GPS receiver)

     Blue cable :RX (RS232 receiver , connect GPS sender)

     Black cable :GND

     Green cable : Analog voltage 0-5v

13.How to connect RS232/458 output ?

     Put the blue & yellow & black line together .

14.How to connect analog 0-5V output ?

     Put the green & black line together .
