Home > Products > Capacitance Fuel Level Sensor > best quanlity fuel level sensor 4-20ma Level Transmitter with indicator

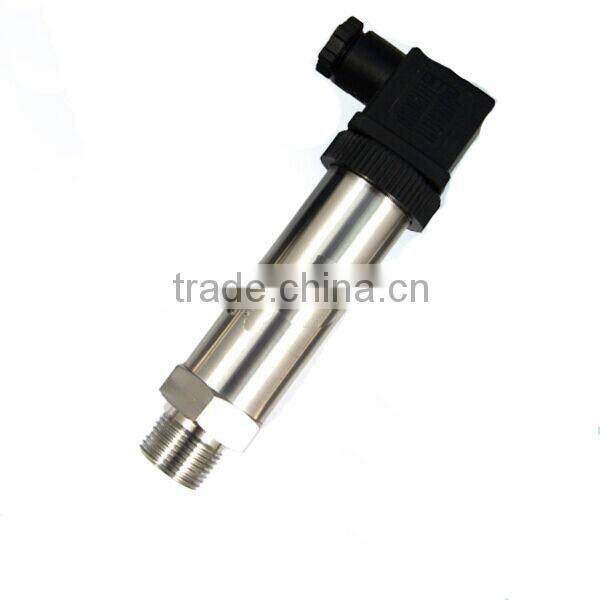

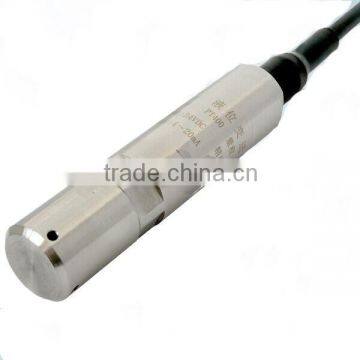

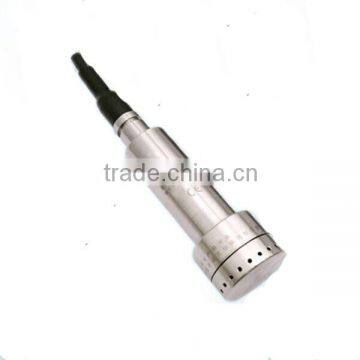

best quanlity fuel level sensor 4-20ma Level Transmitter with indicator
- 1000 Piece / Pieces per Month
- tianjin shanghai qingdao alxn
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Beijing, China | Brand Name: | 4-20ma Level Transmitter | Model Number: | 4-20ma Level Transmitter |
Usage: | Consumption Sensor | Theory: | Capacitance Sensor | Output: | Other, analog and digital |
Product Description
GPT200 GLT510 GLT540 GLT560 GLT570
Description
GLT500 level transmitter has the special structure and applications It has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements. It is widely used in sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.This product has got intrinsic safety certification,explosion proof certification and CE certification. The lead of two-wire circumfluent is no-polarity .
Feature :
pressure range: 0~1mH2O...200mH2O
accuracy:±0.25%FS, ±0.5%FS
flexible submersible measurement
no-polarity two wire current output
Explosion proof certificaiton
CE certification
OEM provided
Applications:
deep well level measurement
hydraulic monitoring in rivers and sea
sewage treatment
muddy liquid level measuremen
liquid reservoir level measurement
water saving irrigationg
water diversion project
Technical data
pressure range | 0~1mH2O...200mH2O | |||
over pressure | 150%FS | |||
burst pressure | 300%FS | |||
output signal | 4~20mA | 0~5Vdc | 1~5Vdc | 0~10Vdc |
power supply | 10~30Vdc | 8~30Vdc | 8~30Vdc | 12~30Vdc |
accuracy | 0.25%FS(min.) | 0.5%FS(typ.) | ||
long-term stability | ≤0.3%FS/year | |||
efficient of zero | ±0.02%FS/°C(typ.) | ±0.05%FS/°C(max.) | ||
efficient of span | ±0.02%FS/°C(typ.) | ±0.05%FS/°C(max.) | ||
compensated temperature range | -10~+70 °C | |||
operating temperature range | -40~+85 °C | |||
storage temperature range | -40~+85 °C | |||
Insulating resistance | ≥100MΩ@100Vdc | |||
load resistance | R≤(U-10)/0.02 (for 4/20mA) | R>100kΩ(for votage output) | ||
electrical interface | waterproof outlet | |||
pressure interface | submersible type | |||
material of pressure membrane | 316LSS | |||
material of housing | 1Cr18Ni9Ti stainless steel | |||
response time(10%~90%) | ≤10ms | |||
shock/impact | 10gRMS,(20~2000)Hz / 100g,11ms | |||
protection | IP68 |
Dimension
