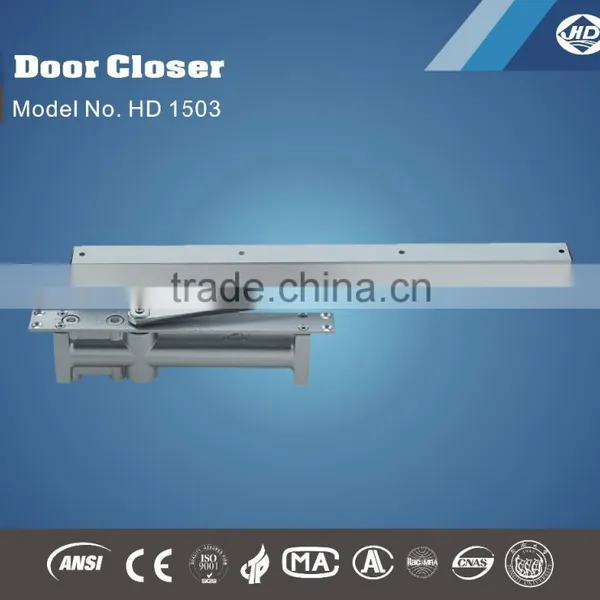

HD1503 hydraulic hidden/concealed Door Closer
- 300000 Piece / Pieces per Month
- shanghai
- T/T
-
Automatic sensor door closer wireless remote control sliding adjust hydraulic door closer types arm automatic
-
Hydraulic heavy duty frameless glass concealed Glass door forcing floor closer floor spring floor hinge
-
Good Quality Small Aluminum Housing Steel Arm Residential Door Closer
-
Heavy Duty Floor Spring,Glass Door Floor Hinges (GD-13)
-
Two speed adjusted stainless steel floor spring / double cylinder hydraulic floor hinge/hydrauic bottom pivot door closer(DL-14)
-
Standalone fingerprint door locks Optical screen resolution 450dpi for home / office
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Haida | Model Number: | HD-1503 |
| Material: | Aluminum Alloy |
Product Description

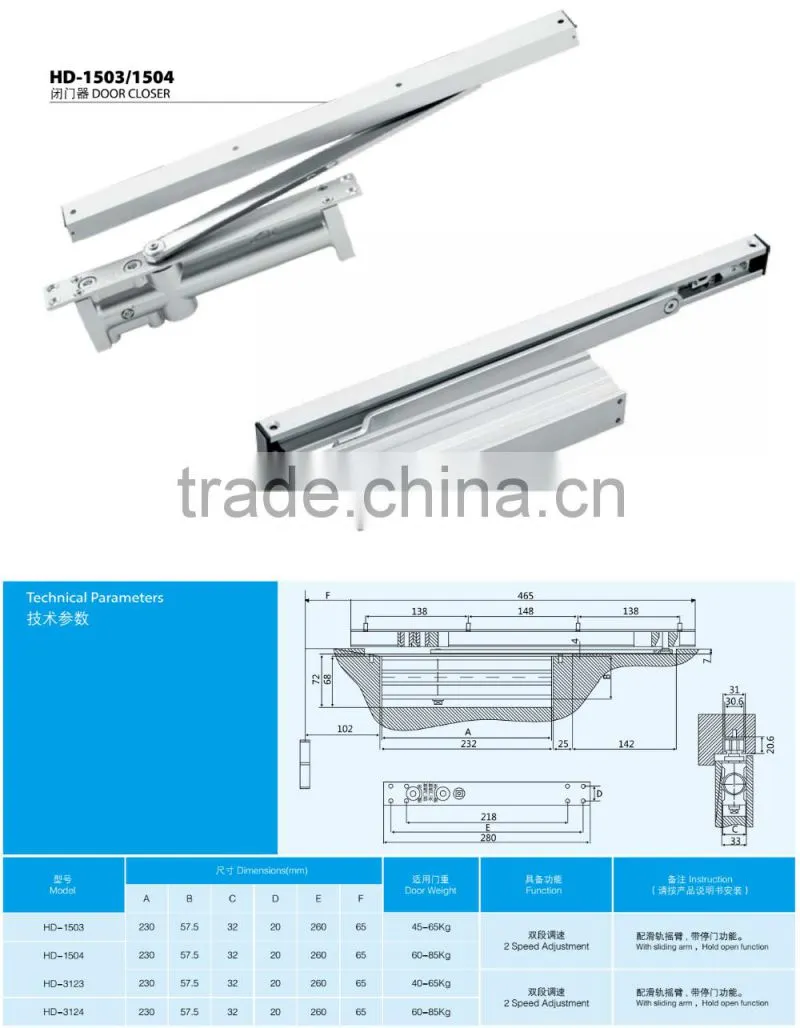

Model:HD-1503 | ||
Applicable Standard | EN1154&ANSI | |
Max Door Width | ≤850mm | |
Max Door Weight | 45kg~65kg | |
Location | optional | |
Back check | × | |
Delay | × | |
Fire-proofing | √ | |
Closing Speed Adjust | 20°-180° | |
Latching Speed Adjust | 0°-20° | |
Application Temperature | -40°to 60° | |
Dimensions | Length | 230mm |
Width | 57.5mm | |
Height | 65mm | |
Dimensions of Installation Hole | mm | |
Finish | Spray paint | |
Color | Silver(other colors for choosing) | |
Warranty | 5years | |
Service Test | Over500,000cycles | |
l Applicable for wooden doors and glass doors of metal frame and wooden frame.
l Door closer comply to EN 1154 and GB standard,and fire-rated EN1634 standard.
l Maximum 500,000 cycles tested without damage or maximum 5 years guarantee.
l Single ways opening with smoothly movement,hold-open optional.
l Closing speed and latching speed adjustable,BC or DA function optional.
l High quality aluminum body with silver painting,or variety colors available.

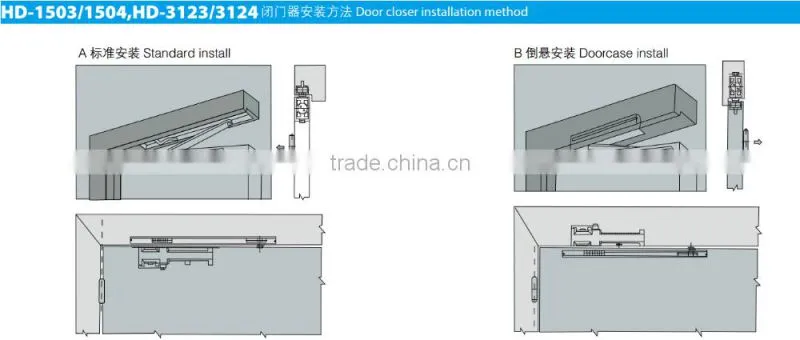

l Different installation methods to make different closing power sizes.
l Germany hydraulic machine oil and sealed rings,keep perfect working in cold temperature.
l Special components through heat treatment to improved it’s hardness.
Any more questions feel free contact me.
- Imported Germany advanced technology and Learn 5S management from Japan.
- Big scale of factory.Generally, 600,000pcs door closer can be produced each year.
- We have more than 28 years experience in this field.
- Rich talent pool.Nowadays,we have more than 680 employees and 15% of them with professional titles.
- Whole automatic production line imported from TAIWAN,always provide excellent quality and reasonable price.
- Each door closer is under strict inspection and door test before painting to make sure they are 100% qualified.
- ISO9001 certification enterprise.Chinese famous brand for many years.
- We take the lead in passing the internation quality certification such as CE/ANSI/ISO9001.
- We have our own international standard test laboratory.
