Help CenterHD1503 High Quality Hydraulic CE Standard Door Closer
Related Products
-
HD206 UL Standard Aluminum Alloy Door Closer for Doors of Great QualityUS$ 12 - 15MOQ: 100 Pieces -
HD165 Door Closer for Glass Door Aluminum Door With CE StandardUS$ 8 - 10MOQ: 200 Pieces
-
Supply Automatic Hydraulic Door Closer With High QualityUS$ 12 - 18MOQ: 100 Pieces
-
Wholesale Automatic Hydraulic Door Closer With Competitive PriceUS$ 6 - 6.5MOQ: 200 Pieces
-
Automatic Hydraulic Door Closer for Glass DoorUS$ 8.8 - 10.8MOQ: 100 Pieces
Model:HD-1503 | ||
Applicable Standard |
EN1154&ANSI |
|
Max Door Width |
≤850mm |
|
Max Door Weight |
25kg~45kg |
|
Location |
optional |
|
Back check |
× |
|
Delay |
× |
|
Fire-proofing |
√ |
|
Closing Speed Adjust |
20°-180° |
|
Latching Speed Adjust |
0°-20° |
|
Application Temperature |
-40°to 60° |
|

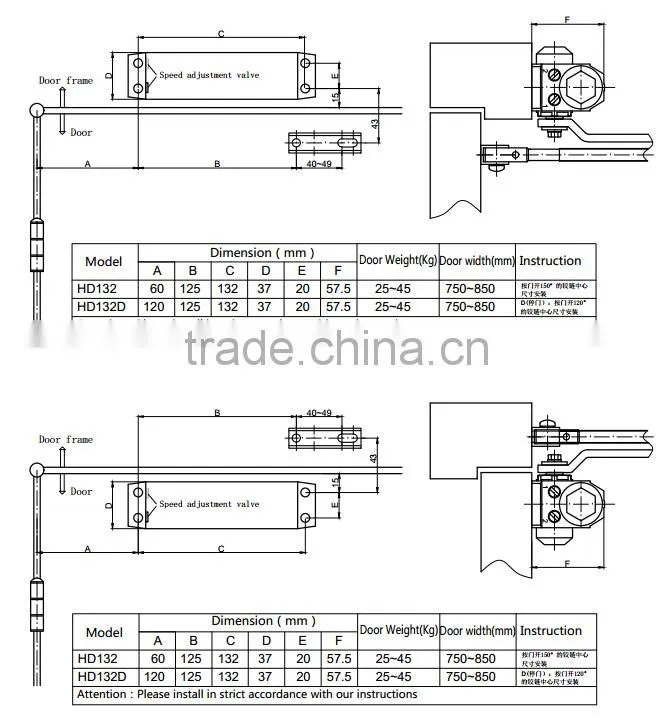

Dimensions |
Length |
148mm |
Width |
37mm |
|
Height |
57.5mm |
|
Dimensions of Installation Hole |
132*20mm |
|
Finish |
Spray paint |
|
Color |
Silver(other colors for choosing) |
|
Warranty |
5years |
|
Service Test |
Over500,000cycles |
|
l Applicable for wooden doors and glass doors of metal frame and wooden frame.
l Door closer comply to EN 1154 and GB standard,and fire-rated EN1634 standard.
l Maximum 500,000 cycles tested without damage or maximum 5 years guarantee.
l Single ways opening with smoothly movement,hold-open optional.
l Closing speed and latching speed adjustable,BC or DA function optional.
l High quality aluminum body with silver painting,or variety colors available.
l Different installation methods to make different closing power sizes.
l Germany hydraulic machine oil and sealed rings,keep perfect working in cold temperature.
l Special components through heat treatment to improved it’s hardness.
- Imported Germany advanced technology and Learn 5S management from Japan.
- Big scale of factory.Generally, 600,000pcs door closer can be produced each year.
- We have more than 28 years experience in this field.
- Rich talent pool.Nowadays,we have more than 680 employees and 15% of them with professional titles.
- Whole automatic production line imported from TAIWAN,always provide excellent quality and reasonable price.
- Each door closer is under strict inspection and door test before painting to make sure they are 100% qualified.
- ISO9001 certification enterprise.Chinese famous brand for many years.
- We take the lead in passing the internation quality certification such as CE/ANSI/ISO9001.
- We have our own international standard test laboratory.
