Mean Well Driver Bridgelux Chip IP65 COB Gas Station LED Canopy Light
The high power explosion proof led lamp provides operator with a powerful and energy efficient alternative to traditional hazardous location luminaires. It is ideal to be used as floodlight or spotlight at the oilfield, metallurgy,refinery, gas station, oil rig, petroleum, petrochemistry and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress environments.
Quality First:
1.CE,IEC,RoHS certificate and test report are available

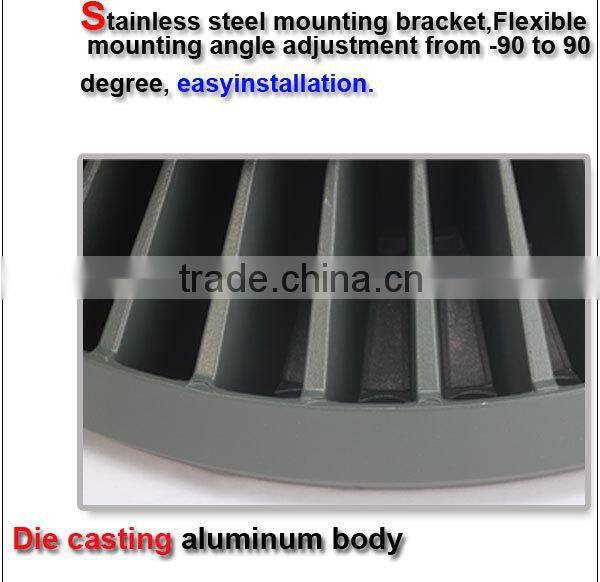

2.6063 aluminum
3.No glare
4.LED chip:

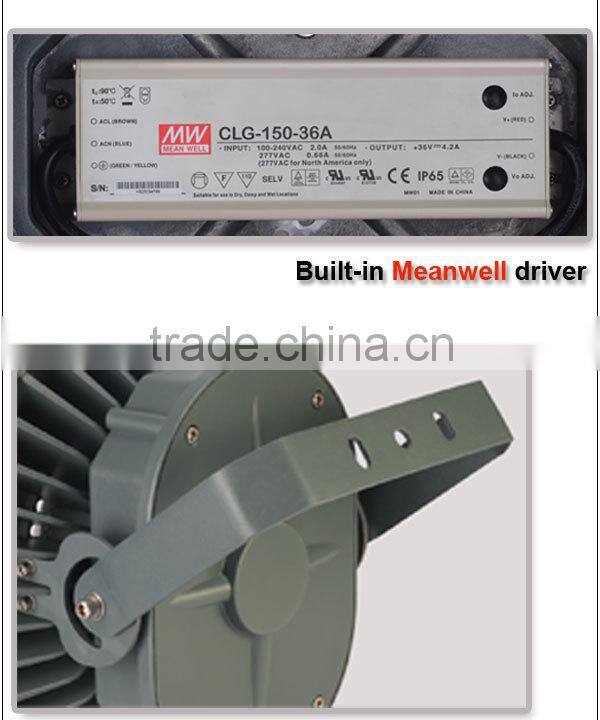

5.LED driver:
Specification:

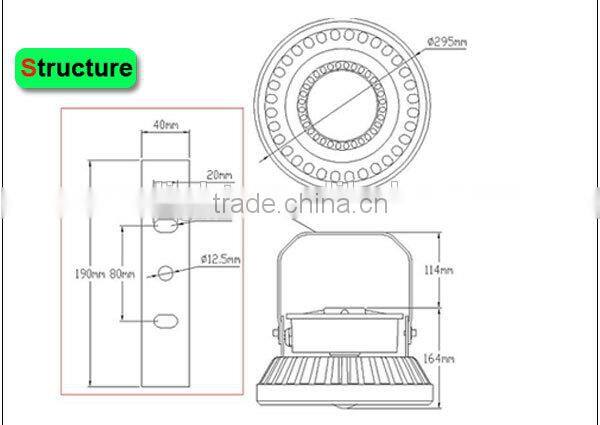

1.Size: ¢310mm x 200mm (H)
2.Input voltage:85-265VAC or 12-24VDC
3.Power:50w-120W
4.Beam angle:120°
5.Power factor>0.95
6.Power Efficiency>89%
7.Procettive level: IP65
8.Certification:CE/RoHS/IEC
9.LED Luminous efficiency:100LM/W
Diagram for parameter:
| Specifications : LED Canopy Light | ||
| Model Number | SEM-HB50-03B | |
| Power | 50W | |
| Input Voltage | 85-265VAC or 12-24VDC | |
| Power Factor(PF) | > 0.95 | |
| Power Efficiency | > 89% | |
| LED Source | COB | |
| LED Luminous Efficiency | 110LM/W | |
| LED Flux(LM) | 5500-6500LM | |
| Color Temperature (K) | Warm White | 3000 - 3500K |
| Natural White | 4000 - 4500K | |
| Pure White | 6000 - 6500K | |
| Color Rendering Inde(CRT) | WW | Ra > 80 |
| PW/CW | Ra > 85 | |
| LED Driver | Mean Well | |
| Beam Angle | 120 ° | |
| LED Junction Temperature | ≤ 60°C | |
| Working Temperature | -40 °C ~+55 °C | |
| Storage Temperature | -25~+65°C | |
| IP Grade | IP65 | |
| Working Life-Span | >50000Hs | |
LED Gas Station Canopy Lights
Packing size:39*39*24CM 1PC/CTN
G.W.:8.5KG/CTN
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models.
Our Factory ,production equipment and testing equipment:
| Questions | Answer |
| 1.What is your payment term? | Usually 50% deposit, balance before shipment. |
| 2.What is the delivery time? | For normal product: samples in one week, large order in 12-18days |
| For customized product: sample in 10-12days, large order in 20-22days | |
| 3.What is your Pirce term? | EXW SHENZHEN; FOB SHENZHEN base on USD25000 per lot |
| 4.What kinds of shipment way you can choose? | by DHL/USP/,FEDEX/TNT,by air or by sea |
| 5.How many years for warranty? | 1~3 years, depends on product series. |
| 6.How to deal with defective goods? | If in warranty: we could repair or replace defective goods in next order |
| If out of warranty: we could repair defective goods but charge some fee on material and labor. | |
| 7.What is your after sale service? | We pay attention to your any feedback, and reply you within 24hours. |
Please contact with us now for:

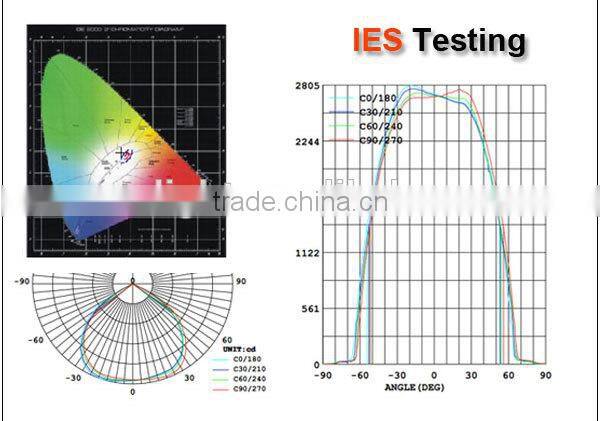

PDF specification data sheet,certificates and IES file.
LED Canopy light, led gas station light,led high bay, led explosion proof light
