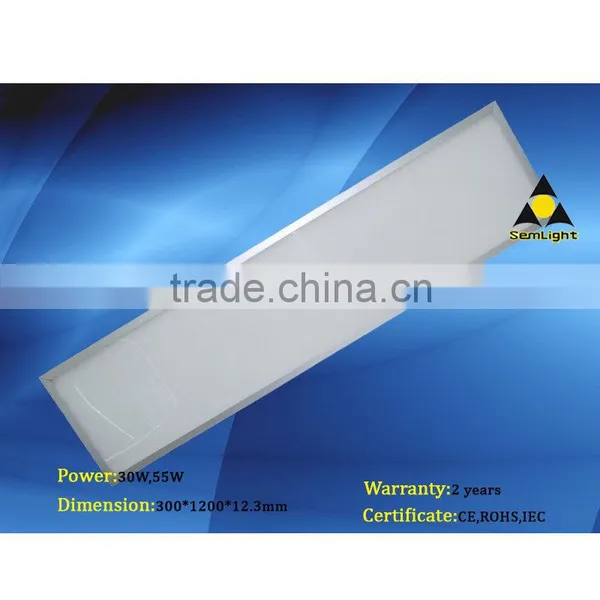

LED Panel Light Surfacemounted 30X30 60X60 30X60 30X120
US$ 50 - 150
MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD
Warranty(Years):
2
Input Voltage(V):
AC85-265V or DC12V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300X300 300X600 600X600 TUV CE RoHS Frameless LED Light PanelUS$ 18 - 30MOQ: 10 Pieces -
Gold Supplier TUV CE RoHS LED Panel Light 300 1200US$ 18 - 30MOQ: 10 Pieces
-
6 Years Gold Supplier TUV CE RoHS LED Backlight PanelUS$ 18 - 30MOQ: 10 Pieces
-
Gold Supplier TUV CE RoHS Small LED Light PanelUS$ 18 - 30MOQ: 10 Pieces
-
Gold Supplier TUV CE RoHS LED Slim PanelUS$ 18 - 30MOQ: 10 Pieces
LED Light Source
SMD
Warranty(Years)
2
Input Voltage(V)
AC85-265V or DC12V
Lamp Power(W)
55
Lamp Luminous Flux(lm)
4400-4950
Lamp Luminous Efficiency(lm/w)
80
Color Temperature(CCT)
Other, Pure White:5500-6000K,Warm White:3000-3500K;Daylight:4000-4500K
Working Temperature(℃)
-30, +60
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum
IP Rating
Other, IP60
Certification
CE, EMC, LVD, CE
Place of Origin
Guangdong, China
Brand Name
SEMLIGHT
Model Number
SEM-P55-02
LED Panel Light Surfacemounted 30X30 60X60 30X60 30X120
300x300 300x600 300x1200 600x600 600x1200 Used for kitchen, toilet, etc wherer have lampblack and water vapor. And other place where need.
Parameter:
| Product | SEM-P15-01 | SEM-P15-02 | SEM-P30-01 | SEM-P30-02 | SEM-P30-03 | SEM-P55-01 |
| LED Parameter Specifications | ||||||
| Power | 15W | 15W | 30W | 30W | 30W | 55W |
| Luminous efficiency | 80-90LM/W | 80-90LM/W | 80-90LM/W | 80-90LM/W | 80-90LM/W | 80-90LM/W |
| Luminous flux | 1200-1350LM | 1200-1350LM | 2400-2700LM | 2400-2700LM | 2400-2700LM | 4400-4950LM |
| Emitting Color | RGB | |||||
| White | Warm white CT(3000-3500K) | |||||
| Daylight CT(4000-4500K) | ||||||
| Pure white CT(5500-6000K) | ||||||
| Cool white CT(6000-6500K) | ||||||
| LED chip | Bridgelux, Epistar | |||||
| LED Type | SMD3528 | |||||
| LED quantity | 186PCS | 186PCS | 372PCS | 372PCS | 372PCS | 756PCS |
| Power source parameters | ||||||
| Input voltage | AC85-265V | |||||
| Frequency Range | 50/60HZ | |||||
| Dimmable | Dimmable or nondimmable | |||||
| Power Factor | >0.94 | |||||
| Power Effiency | >86% | |||||
| Certificate | CE,RoHS,IEC | |||||
| Technical parameters | ||||||
| LED consumption | 12.9W | 12.9W | 25.8W | 25.8W | 25.8W | 47.3W |
| System consumption | 2.1W | 2.1W | 4.2W | 4.2W | 4.2W | 7.7W |
| Dimension(mm) | 300*300*12.3 | 300*600*12.3 | 300*600*12.3 | 300*1200*12.3 | 600*600*12. | 300*1200*12.3 |
| Beam Angle | 120° | |||||
| Material | Aluminum | |||||
| IP Grade | IP54 | |||||
| Working Life Span | >50000hours | |||||
| Color Rendering Index | >80 | |||||
| Working Temperature | -40degree——+50degree | |||||
| Packaging information | ||||||
| Net Weight | 2.05kgs/pc | 3.12kgs/pc | 3.12kgs/pc | 6.79 kgs/pc | 9.83 kgs/pc | 6.79 kgs/pc |
| Gross Weight | 2.38kgs/pc | 3.5kgs/pc | 3.5kgs/pc | 7.00kgs/pc | 10.5 kgs/pc | 7.00kgs/pc |
| Box Size | 50*44*44CM 20PCS/CTN |
50*44*74CM 20PCS/CTN |
50*44*74CM 20PCS/CTN |
40*130*80CM 1PC/CTN |
72*72*10CM 1PC/CTN |
40*130*80CM 1PC/CTN |
Please contact with us now for:
PDF data specification,Certificates and IES file.
