Meanwell LED Explosion-proof Lights Gas Station Products With COB (SEM-EX160-C)
LED Canopy Light For LED Gas Station Light Advantages:
1. Envrionmental Friendly,High shock & vibration resistant.
2. Energy Saving and Long Lifespan
3. Good Heat Dissipation,No UV or RF interference, NO Mercury
4. Easy Installation, High Brightness,Instant start, no noise, no flickering
160W LED Canopy light Specifications:
1.Power:160W
2.Input Voltage:AC100-290V
3.Led Chip:Bridgelux
4.Power Supply:Meanwell
5.Luminous efficiency:100-110lm/w
6.Lamp Size:510*460*110mm
7.Back hole size:480*430mm
8.Fixture Size:480*430mm
9.Beam Angle:60 deg.
10.CRI>70
11.IP44
12. LED driver: meanwell
13..Power factor>0.95
14.Power Efficiency>86%
15.Certification:CE/RoHS/IEC
Diagram for parameter:
| Specifications : Gas Station Products | ||
| Model Number | SEM-EX160-C | |
| LED Consumption | 160W | |
| Input Voltage | AC100-290V | |
| Power Factor(PF) | > 0.95 | |
| Power Efficiency | > 86% | |
| LED Source | COB | |
| LED Luminous Efficiency | 100LM/W | |
| LED Flux(LM) | 16000-17600 | |
| Color Temperature (K) | Warm White | 3000 - 3500K |
| Natural White | 4000 - 4500K | |
| Pure White | 6000 - 6500K | |
| Color Rendering Inde(CRT) | WW | Ra > 80 |
| PW/CW | Ra > 85 | |
| Lamp Size | 510(L)*460(W)*110(H) | |
| Beam Angle | 60 ° | |
| Back hole size | 480*430mm | |
| Working Temperature | -30 °C ~+60 °C | |
| Fixture Size | 480*430mm | |
| IP Grade | IP44 | |
| Working Life-Span | >50000H | |
Main features:
Diver:Mean Well
1.The light source is integrated high power LED with high luminous efficacy. Low light decay and long service life.
2.The light body is composed of electrical box, radiator and lampshade.There is built-in driver and wide input voltage ( AC100-290V ). Constant output current, high power factor, avoid harmonic pollution to the power system.
3.It is excellent in stability and has passed CE certification.
4.There is waterproof washer at the junction of the fittings.

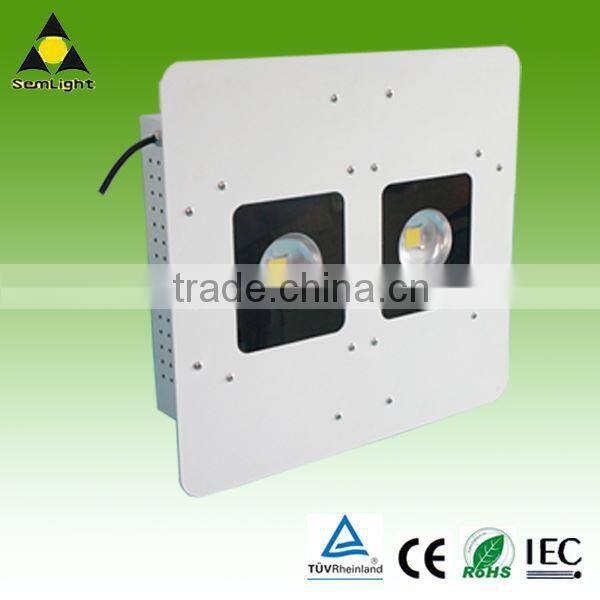

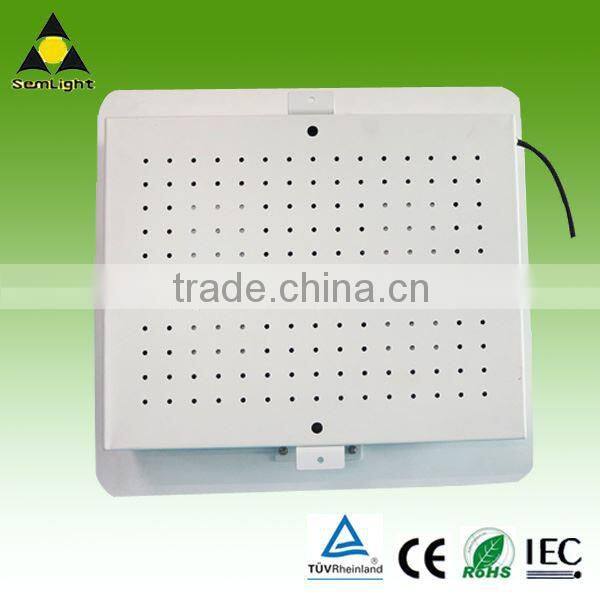

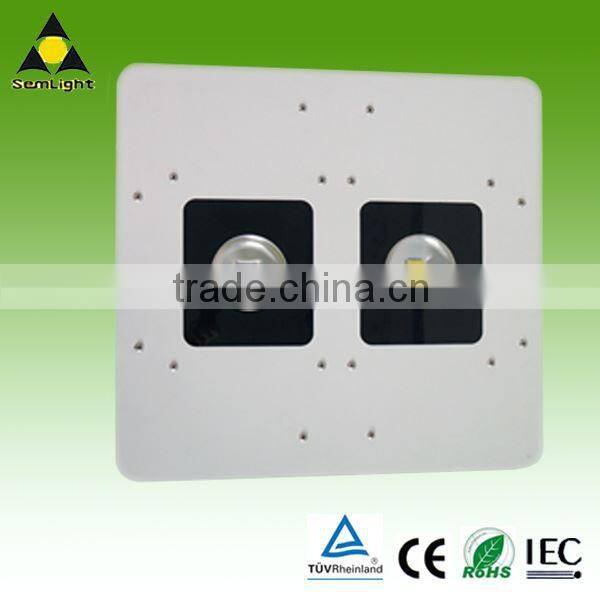

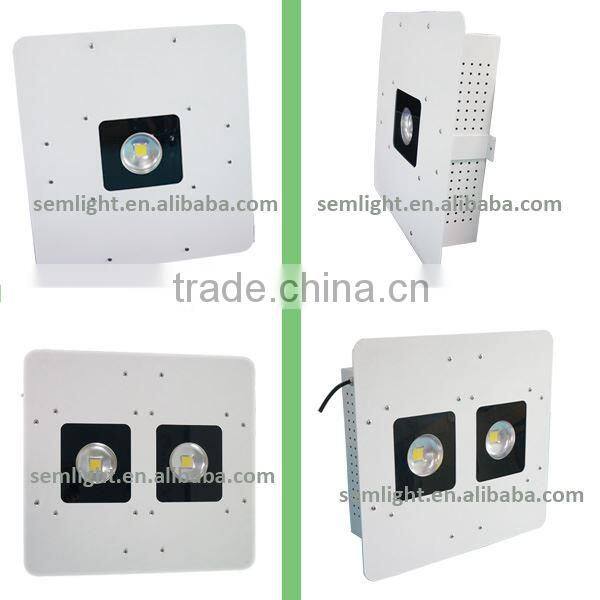

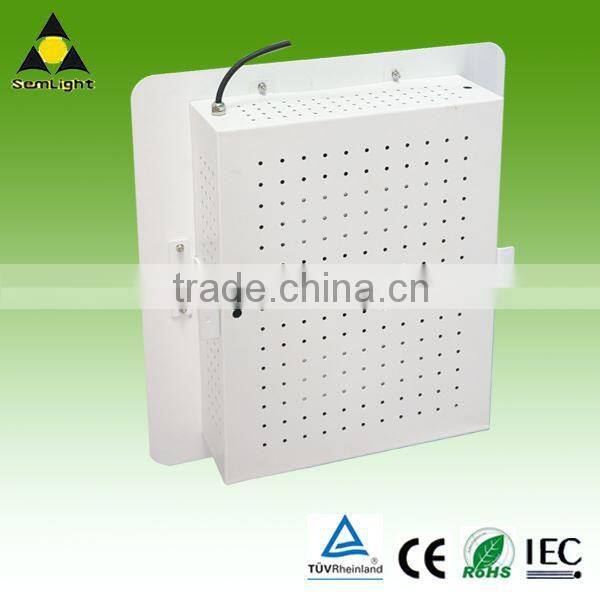

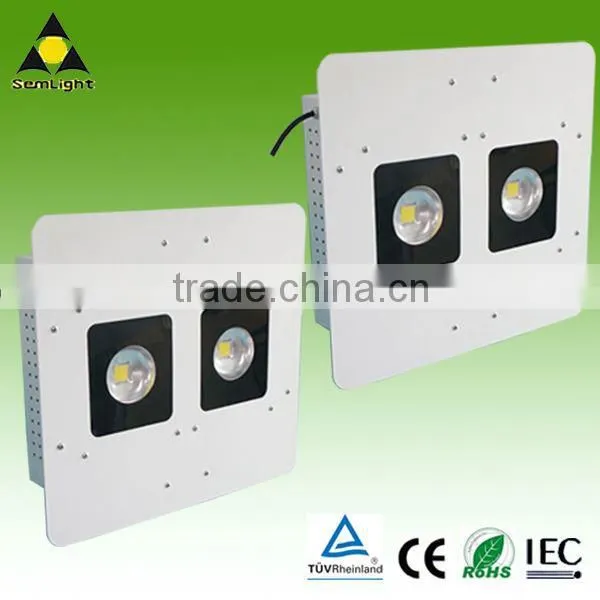

LED Canopy Light Photos:
Our LED gas station light series:
| Item No. | SEM-EX70-C | SEM-EX80-C | SEM-EX100-C | SEM-EX120-C | SEM-EX140-C | SEM-EX160-C |
| Power | 70w | 80w | 100w | 120w | 140w | 160w |
| LED quantity | 1 piece COB | 1 piece COB | 2 piece COB | 2 piece COB | 2 piece COB | 2 piece COB |
| Input Voltage | AC100-290V | AC100-290V | AC100-290V | AC100-290V | AC100-290V | AC100-290V |
| beam angle | 60° | 60° | 60° | 60° | 60° | 60° |
| protective level | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 |
| CRI | >70 | >70 | >70 | >70 | >70 | >70 |
| Lumen | 7000-7700 | 8000-8800 | 10000-11000 | 12000-13200 | 14000-15400 | 16000-17600 |
| Luminous efficiency | 100-110lm/w | 100-110lm/w | 100-110lm/w | 100-110lm/w | 100-110lm/w | 100-110lm/w |
| Lamp Size | 510(L)*460(W)*110(H) | 510(L)*460(W)*110(H) | 510(L)*460(W)*110(H) | 510(L)*460(W)*110(H) | 510(L)*460(W)*110(H) | 510(L)*460(W)*110(H) |
| Back hole size | 480(L)*430(W) | 480(L)*430(W) | 480(L)*430(W) | 480(L)*430(W) | 480(L)*430(W) | 480(L)*430(W) |
| Fixture Size | 480(L)*430(W) | 480(L)*430(W) | 480(L)*430(W) | 480(L)*430(W) | 480(L)*430(W) | 480(L)*430(W) |
| Casing color | White | White | White | White | White | White |
Application:
LED Gas Station Lights are applicable to gas station. It gets high CRI >70 which show better visible light and healthy lighting for the environment. With new technology of led lighting, LED gas station light can save 50% or more of energy costs.
Gas Station Products
Certifications:
Gas Station Products
About us:
Shenzhen Semlight Semiconductor Lighting Co., Limited was established in 2006. Located in Shenzhen City, we are professional manufacturer of LED lights. We have our excellent team of engineers and R&D strength.
Gas Station Products
Trade terms
1. Price term: EXW SHENZHEN; FOB SHENZHEN base on USD15000 per lot
2. Payment term : 50% deposit, balance before shipment
3. Delivery time : usually 5-15days after payment, which is subject to your order quantity
4. Mini order quantities: 10PCS
5. Price validity: 30days
6. Warranty:we can repair or replace defective goods in next order within three years.
7. Color temperature:pure white:5500-6000K,natural white:4000-4500k,warm white:3000-3500K, or customizing
Our service
(1)Your inquiry for our products will be replied in 24 hours
(2)Well-trained and experienced staffs to answer all your enquires in fluent English
(3)OEM and ODM are welcomed
(4)Make the products as your requirement.
(5)Protection of your sales area, ideas of design and all your private information
Please contact with us now for:
PDF specification data sheet,certificates and IES file.
