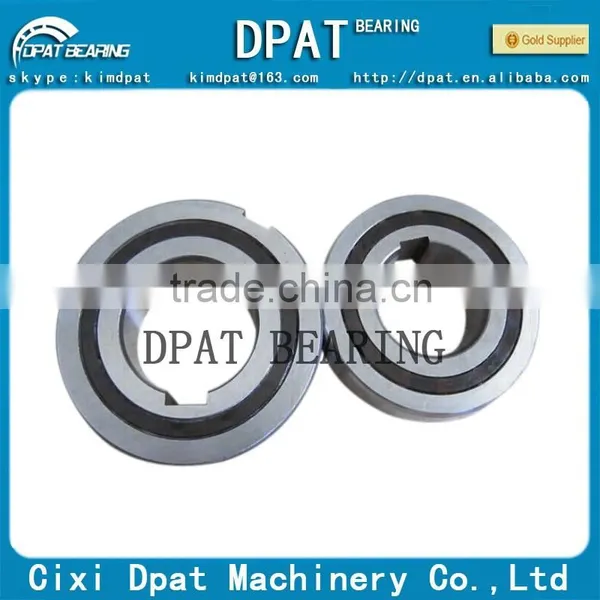

40x80x22 CSK one way sprag bearing CSK40 with high torque and long life
One way (clutch) Bearing .The CSK series is a one way (clutch) ball bearing.One way Bearing Sprag/Clutch Freewheel and also called as Backstops.It is a sprag type freewheel integrated into a 62 series ball bearing(except sizes 8 and 40).
CSK series one way clutch bearings are equipped with chrome formed sprags that increases the over-run life several times. Torque transmission is ensured by a press fit assembly into a rigid outer housing and onto a shaft with an N6 tolerance. Initial bearing clearance is set at C5 and is reduced if using the press fit as specified.

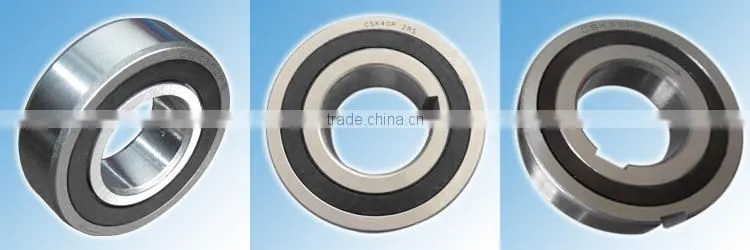

The CSK one way bearing series has a small radial section height and is also commonly known as a one way bearing or anti reverse bearing. One way bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction. In addition to the basic CSK model, type CSK..P features a keyway on the inner race and CSK..PP features a keyway on both the inner and outer race. For this reason it can be keyed to a shaft.The one way bearings are used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
1) T max = 2 × T KN
*) One Z seal on the bearing side only. Looking from this
side, the outer race runs free in the counterclockwise
direction
**) Only one RS seal on the ball bearing side looking from
this side, the outer race runs free in the counterclock-
wise direction
Applications Of Sprag Type One Way Clutch Bearings
If you need products as follows, you can "click"the related pictures.
Cixi Dpat Machinery Co.,Ltd is an experienced professional manufacturer and exporter. Our product including: Roller bearing, Ball bearing, One Way Clutch Bearing, Auto Bearing and Auto parts.
We follow the market trend, focus on better quality and better service, exchange experience with domestic and foreign enterprises, and make effort to explore overseas markets, so that Dpat bearings sold overseas.
