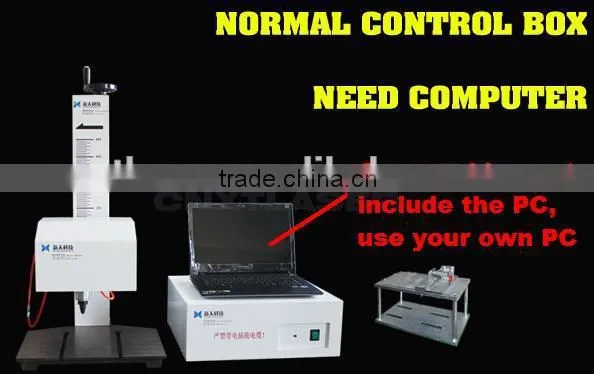

Help Center2014 Hot Selling Possible Brand Pneumatic Marking Machine Vin Code Dot Peen Marking
Related Products
-
Mini Portable Style Pneumatic Marking Machine for VIN,chassis Number,2D Codes,logo EctUS$ 3,500 - 5,000MOQ: 1 Set -
Line or Dot Peen Pneumatic Mini Portable Pneumatic Marking Machine for VIN CodeUS$ 3,500 - 5,000MOQ: 1 Set
-
Favorites Compare CNC Portable Pneumatic Marking Machine With CEUS$ 3,500 - 5,000MOQ: 1 Set
-
Flexible Portable Dot Peen Type, Hand Carry Pneumatic Metal Stylus Dot Peen Engraving Machine,small Dot Pin Marking DeviceUS$ 3,500 - 5,000MOQ: 1 Set
-
Sales Promotion!!! Nameplate Motorcycle Chassis Number Portable Pneumatic Marking MachineUS$ 3,500 - 5,000MOQ: 1 Set
| Dot peen pneumatic marking machine Product Features |
desktop pneumatic marking machine is the most popular pneumatic marker which produced by XT lASER,which is being popular by its extremely lightweight, portable, hand-held, use friendly. the features of portable marker you can seeing the detail as following
Basic principles
Computer controls marking-needle to move on traces of pre-edited characters and graphs, meanwhile, to strike materials at a high frequency under the application of compressed air, thereby, to form needed characters and graphs.
Major functions
Software applicable on Windows 98/2000/XP/Vista platform, has strong editing functions, and easy to use, capable to mark Chinese and English characters, Arabic numbers and graphs, automatic printing serial number, international standard VIN codes. The marking head could move 90 degree, suit for different marking requirement.
Main Features
- The Portable Marker machine is automatically incremented and the value optional.
- Marking automatically with whatever characters,such as Chinese,English,graphic,serial number,VIN code,etc
- Marking clearly with the specially made alloy pin
- Marking effect is available from the system before marking
- Numerous option for fonts,supporting edit fonts
- Marking depth is adjustable by controlling the marking pin
- Save the marking contents,date and quantity automatically
- Stable quality and can work continuous for 24hours
- Used for marking on big or round workpiece such as flange,flywheel,brake flange,etc
- The software can read the data direct from the text file.
- There is external routine interface in the software. Through the SQL script, it can connect the external database.
- Automatically marking function after start without human intervention.
-
2. Technical Parameter : Dot Peen Marking Machine
Dot peen pneumatic marking machine
Technology parameter -
Technical parameters
.Operation System:
Windows98/2000/XP
Marking Area:
90×110mm φ3-φ400mm (or customized)
Min Character:
1×1mm (character size controlled by software)
Marking Speed:
3-6 characters/second
Marking Depth:
0.01 - 2mm (according to the material)
Marking Pin Hardness:
HRC95
Impact Frequency:
300-400times/second
Marking Material:
All kinds of materials up to a hardness of HRC65
Multiple Fonts:
Numerous fonds up to more than 100,supporting edit fonts
Weight Endurance:
Rotator holds up to 100KG workpiece,diameter 600mm(or customized)
Graphics:
Compatible with AutoCAD,CorelDRAW, CAXA
Accuracy Guarantee:
Character marking accuracy≤0.01 after 5years working
Rating Power:
500W
Compressed Air Supply:
0.2Mpa~0.5Mpa Airflow:0.25L/S
Weight
30KG
Dot peen pneumatic marking machine Marking contents |
Lot numbers, Arabic numerals, Common symbols, Chinese character, English letters,graphic ,Roman alphabets,VIN codes,Automatic date printing ,automatic production Numbers and other designated languages on any metal material.
Marking Content of Mini Metal plates engraving machine
- Any character size 0.5 mm to 100 mm
- Serial number (value, tee, elbow, batch, shift)
- Arabic numerals Alphanumeric (Figure& Letter)
- Graphics
- VIN code
- Time variables (year, month, week, day, shift)
- Date& Time
- Barcodes & Reading
- Ticket number
- Date Matrix/2D codes/ Matrix size: 5 x 7, 9 x 13 and continuous line
- Logos marking
- Special symbols
- Database connection marking
| Dot peen pneumatic marking machine Application |
It's applicable for the fields of automobile motorcycle parts, merchanism,petroleum,aeronautical
and space,electric apparatus,steel,metal,nonmetal and hard plastic materials.It mainly used for marking logos,characters,serial numbers and VIN codes on bodywork of motorcycles,nameplates,connecting rods,engines,mechanical parts,machine tools,metal pipe,gear,pump,valve,fastening pieces,cylinder and various hardware.
1. Applying the most widely used up-down lifting structure to realize multi-functions.
2. It can use under various working conditions.
3. It can support logos and graphs designed in DXF format from AutoCAD, CorelDraw.
4. Marking contents could be saved automatically and not be destroyed during power-off of the machine.
5. It can be used online to share the database and data transmission with other equipment, such as match with electronic scales, bar code machines, leak detectors and other equipment.
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Dot Peen Marking Machines For Metal Marker
Hot sale Dot Peen Marking Machine With(Certification CE,SGS,FDA)
Fiber Laser Marking Machine

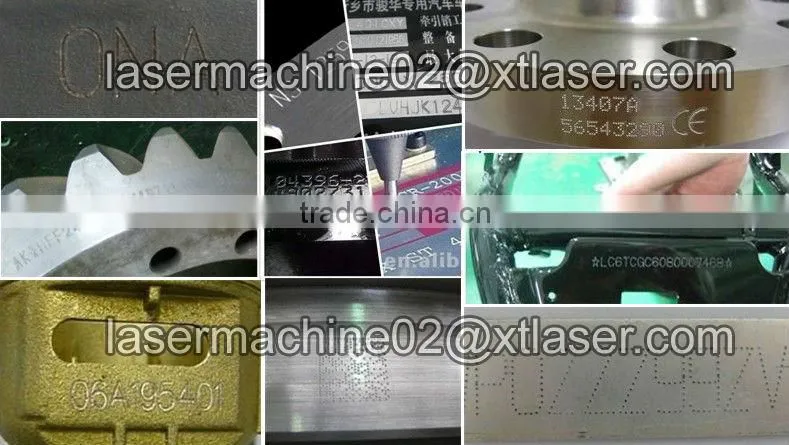

sample of dot peen marking machine
service of our dot peen marking machine
1. 24/7 service is available to each customer. And if any technical questions or problems, our engineers
will help you and give you solutions on the phone or by face-to-face communication online.
2. One-year warranty is provided. (The detailed reference will be written into the final contract.)
3. Professional staff for installation and training if needed.
4. Spare parts are supplying on time or doing some inventory if promising certain sales volume.
5. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient
and helpful.
6. If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and
give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD,
manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise
the final delivery is the same as displayed prototype.
XT dot peen Marking Machine
