Specifications
plastic housing enclosure laser marking machineMetal RF CO2 laser tube-gas can be recharged
USA RF metal Laser tube
CE ISO
Promotion!!! plastic housing enclosure 50w/75w/100w yag laser marking machine
plastic housing enclosure 50w/75w/100w yag laser marking machine is one of our best-sellers of our company.
Key Features:
1*.Imported high quality semiconductor laser diode pumped Nd: YAG
2*.High quality laser beam mode(10000 hours), high lightning conversion efficiency.
3*.Low power consumption, cost effective and long lifespan, convenient to maintenance.
4*.Sturdy and compact structure. HP-26 running stability with high safety. Mainly used for metal, alloy and oxide, ABS resin, ink ,electronic components, jewelry, auto parts, telecommunication products, plastic keys, integrated circuit (IC) industry.
5*.Easy to install and operation, marking accuracy is good.
6*.Integrated marking software with user-friendly design.
7*.Various connection mode for optimzing to achieve automaically marking.
8*.Versatile marking software is compatible with Coreldraw,AutoCAD,Photoshop.
9*.Support PLT, DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking supporting, serial number, bar code, 2D code, incrementing serial No., automatic jump codes, etc.
10*.Excellent for long-lasting operation.
Technology Parameters
| Model | plastic housing enclosure laser marking machine XTL-DP75 |
| Laser power | 75W |
| Laser wavelength | 1064nm |
| Cooling way | Water cooling |
| Beam quality | m2<6 |
| Laser repetition frequency | ≤50KHz |
| Standard marking area | 110mm x 110mm |
| Optional marking area | 150mm x 150mm |
| Marking depth | ≤0.3mm |
| The depth is adjustable according to different materials | |
| Linear speed | ≤7000mm/s |
| Min. Line width | 0.02mm |
| Min. letter | 0.25mm |
| Repeatable accuracy | ±0.001mm |
| Software supported | CorelDraw, AutoCAD, Photoshop etc |
| Gross power | ≤2.5KW |
| Electricity source | 220V/50Hz /15A |
Guarantee
1.One year quality guaranty, the semiconductor laser marking machine with main parts shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery , operation disk was included.
Application Field
Electronic component, IC chips , panels, measuring tools, all kinds of mechanicao parts,hardware tools, dials and other carbide materials

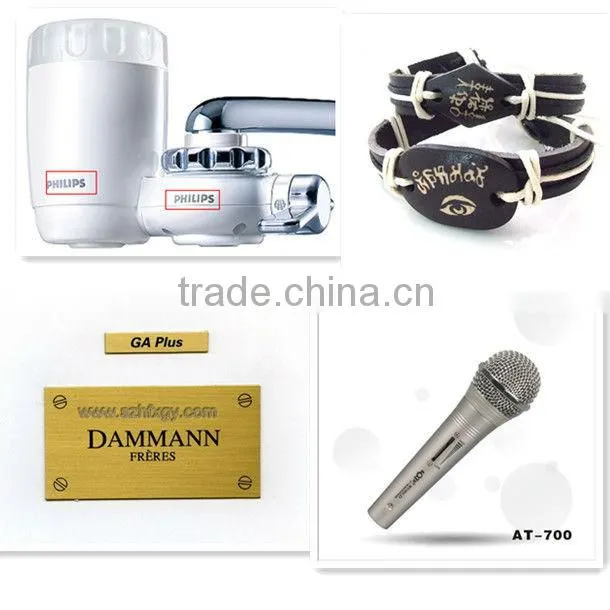

plastic housing enclosure laser marking machine samples

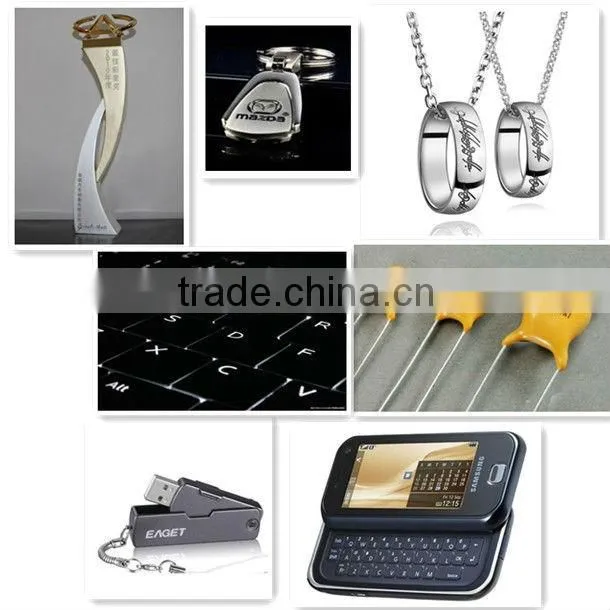

plastic housing enclosure laser marking machine marking photos
Certifications
plastic housing enclosure laser marking machine has been approved by CE/ISO
About Us
Other Types of Laser Marking Machine
Except for plastic housing enclosure laser marking machine, we also offer you : Fiber laser making machine, Pneumatic marking machine, CO2 RF laser marking machine
Packaging and Delivery
