Specifications
cable tube yag laser printerHigh scanning speed and precision.
Imported core parts
Woking for a long time
CE ISO FDA
cable tube yag laser printer
cable tube yag laser printer is one of our best-sellers of our company.
Key Features:
1*.Imported high quality semiconductor laser diode pumped Nd: YAG
2*.High quality laser beam mode(10000 hours), high lightning conversion efficiency.
3*.Low power consumption, cost effective and long lifespan, convenient to maintenance.
4*.Sturdy and compact structure. HP-26 running stability with high safety. Mainly used for metal, alloy and oxide, ABS resin, ink ,electronic components, jewelry, auto parts, telecommunication products, plastic keys, integrated circuit (IC) industry.
5*.Easy to install and operation, marking accuracy is good.
6*.Integrated marking software with user-friendly design.
7*.Various connection mode for optimzing to achieve automaically marking.
8*.Versatile marking software is compatible with Coreldraw,AutoCAD,Photoshop.
9*.Support PLT, DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking supporting, serial number, bar code, 2D code, incrementing serial No., automatic jump codes, etc.
10*.Excellent for long-lasting operation.
Technology Parameters
| Model | cable tube yag laser printer XTL-DP50 |
| Laser power | 50W |
| Laser wavelength | 1064nm |
| Cooling way | Water cooling |
| Beam quality | m2<6 |
| Laser repetition frequency | ≤50KHz |
| Standard marking area | 110mm x 110mm |
| Optional marking area | 150mm x 150mm |
| Marking depth | ≤0.3mm |
| The depth is adjustable according to different materials | |
| Linear speed | ≤7000mm/s |
| Min. Line width | 0.02mm |
| Min. letter | 0.25mm |
| Repeatable accuracy | ±0.001mm |
| Software supported | CorelDraw, AutoCAD, Photoshop etc |
| Gross power | ≤2.5KW |
| Electricity source | 220V/50Hz /15A |
Guarantee
1.One year quality guaranty, the semiconductor laser marking machine with main parts shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery , operation disk was included.
Application Field
Electronic component, IC chips , panels, measuring tools, all kinds of mechanicao parts,hardware tools, dials and other carbide materials

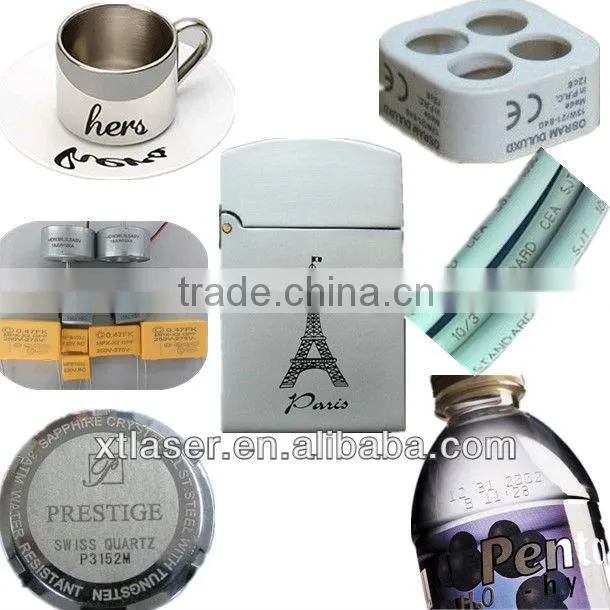

cable tube yag laser printer samples
YAG Laser Printing on iron pipes machine marking photos
Certifications
cable tube yag laser printer has been approved by CE/ISO
About Us
Jinan Xintian Technology Co.,Ltd is professional manufacturer of laser equipment, established in 2004.
It is a professional manufacturer engaged in the research,development, production and service of
Diode pumped Laser marking machine, Fiber laser marking machine,CO2 laser marking machine,Pneumatic marking machine,Laser engraving machine,Laser welding machine, Laser cutting machine and Laser trimming machine
Other Types of Laser Marking Machine
Except for cable tube yag laser printer , we also offer you : Fiber laser making machine, Pneumatic marking machine, CO2 RF laser marking machine
