Specifications
hose, pipe 100w semiconductor laser marking machine1.Marking Scope:100*100mm(Optional)
2.Small laser spot
3.CE/ISO

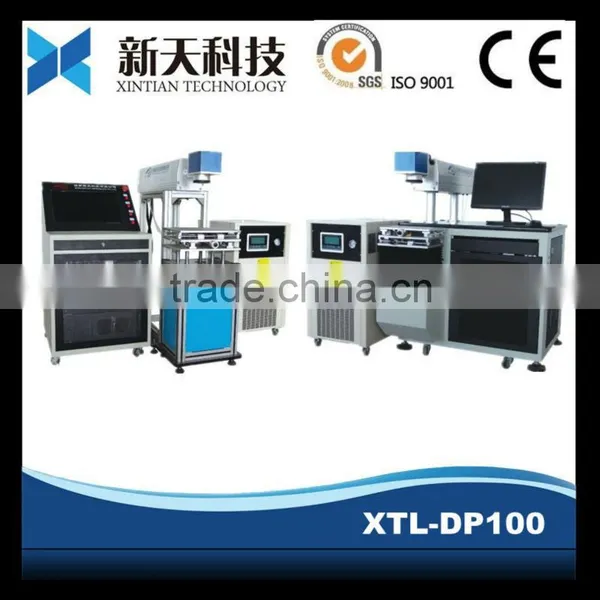

Promotion!!! hose, pipe 100w semiconductor laser marking machine
hose, pipe 100w semiconductor laser marking machine is one of our best-sellers of our company.
Key Features:
1.Saving lights. the life time of semiconductor diode is as long as 10000 hours, while life time of krypton lamp is only several hundred hours.
2.Saving electricity. the power dissipation of semiconductor marking mahine is only around 2KW, and lamp pumping needs around 6KW,
3.Better marking effect. the semiconductor laser marking machine can achieve braw function which lamp puming marking machine can not make it.
4.Small, fine and high marking speed. marking good effect, and low power consumption, low processing costs.
5. Using Windows interface, compatible with Coreldraw, AutoCAD, Photoshop software output and other documents.
Technology Parameters
| Model | Aluminum Sheet Laser Engraving Machine XTL-DP50 |
| Laser power | 50w /75W/100W |
| Laser wavelength | 1064nm |
| Cooling way | Water cooling |
| Beam quality | m2<6 |
| Laser repetition frequency | ≤50KHz |
| Standard marking area | 110mm x 110mm |
| Optional marking area | 150mm x 150mm |
| Marking depth | ≤0.3mm |
| The depth is adjustable according to different materials | |
| Linear speed | ≤7000mm/s |
| Min. Line width | 0.02mm |
| Min. letter | 0.25mm |
| Repeatable accuracy | ±0.001mm |
| Software supported | CorelDraw, AutoCAD, Photoshop etc |
| Gross power | ≤2.5KW |
| Electricity source | 220V/50Hz /15A |
Guarantee
1.One year quality guaranty, the semiconductor laser marking machine with main parts shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery , operation disk was included.
Application Field
Electronic component, IC chips , panels, measuring tools, all kinds of mechanical parts,hardware tools, dials and other carbide materials
hose, pipe 100w semiconductor laser marking machine

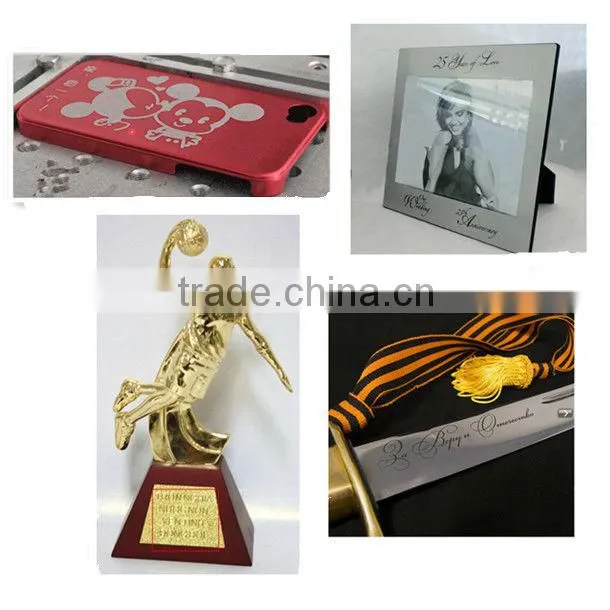

samples
hose, pipe 100w semiconductor laser marking machine marking photos
Certifications
hose, pipe 100w semiconductor laser marking machine has been approved by CE/ISO
About Us
Other Types of Laser Marking Machine
Except for hose, pipe 100w semiconductor laser marking machine , we also offer you : Fiber laser making machine, Pneumatic marking machine, CO2 RF laser marking machine
