Hot sale!! dot pin markers

Wooden case

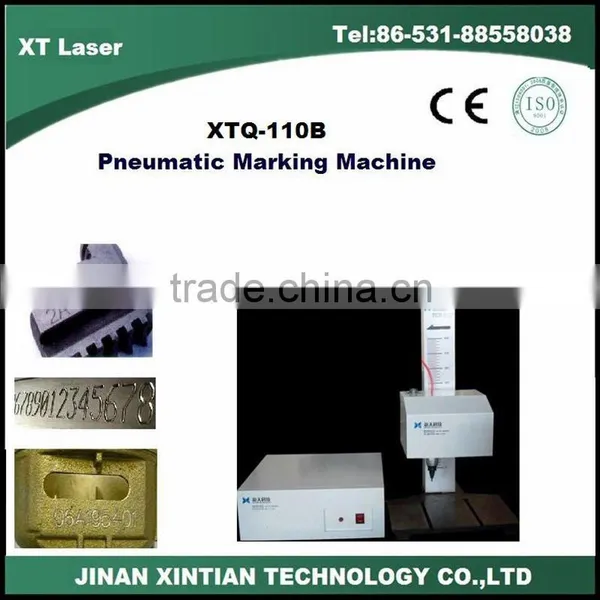

dot pin markers  is the most popular pneumatic marker which produced by XT LASER,which is popular as its extremely lightweight, portable, hand-held, use friendly. the features of portable marker you can see the detail as following

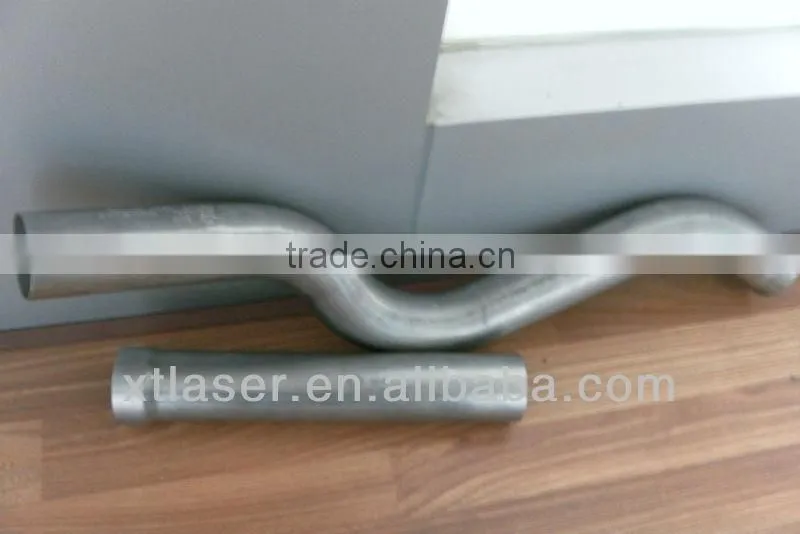

This type of Pin Marking  Machines,marking on flat and cylindrical surface of work pieces with a rotary fixture, like steel tubes, metal pipes and ring flanges, also to mark on mechanical parts without the fixture.

marking on flat &cylindrical surface, marking text,figure,special sign and logo, pin marking machine
metal marking machine

Basic principles

Computer controls marking-needle to move on traces of pre-edited characters and graphs, meanwhile, to strike materials at a high frequency under the application of compressed air, thereby, to form needed characters and graphs.

 Major functions

 Software applicable on Windows 98/2000/XP/Vista platform, has strong editing functions, and easy to use, capable to mark Chinese and English characters, Arabic numbers and graphs, automatic printing serial number, international standard VIN codes. The marking head could move 90 degree, suit for different marking requirement.

Main Features

• The Portable Marker machine is automatically incremented and the value optional.
• Marking automatically with whatever characters,such as Chinese,English,graphic,serial number,VIN code,etc
• Marking clearly with the specially made alloy pin
• Marking effect is available from the system before marking
• Numerous option for fonts,supporting edit fonts
• Marking depth is adjustable by controlling the marking pin
• Save the marking contents,date and quantity automatically
• Stable quality and can work continuous for 24hours
• Used for marking on big or round workpiece such as flange,flywheel,brake flange,etc
• The software can read the data direct from the text file.
• There is external routine interface in the software. Through the SQL script, it can connect the external database.
• Automatically marking function after start without human intervention.

Marking Content of Frame Marking Machine

• Any character size 0.5 mm to 100 mm
• Serial number (value, tee, elbow, batch, shift)
• Arabic numerals Alphanumeric (Figure& Letter)
• Graphics
• VIN code
• Time variables (year, month, week, day, shift)
• Date& Time
• Barcodes & Reading
• Ticket number
• Date Matrix/2D codes/ Matrix size: 5 x 7, 9 x 13 and continuous line
• Logos marking
• Special symbols
• Database connection marking

Application:

It's applicable for the fields of automobile motorcycle parts, petroleum, aeronautical and space, electric apparatus, steel, metal, non-metal and hard plastic materials. It mainly used for marking logos, characters, serials numbers and VIN codes on bodywork of motorcycles, nameplates ,connecting rods ,engines ,mechanical parts ,machine tools, metal pipe, gear, pump, valve, fastening pieces, cylinder and various hardware.

Technical parameters

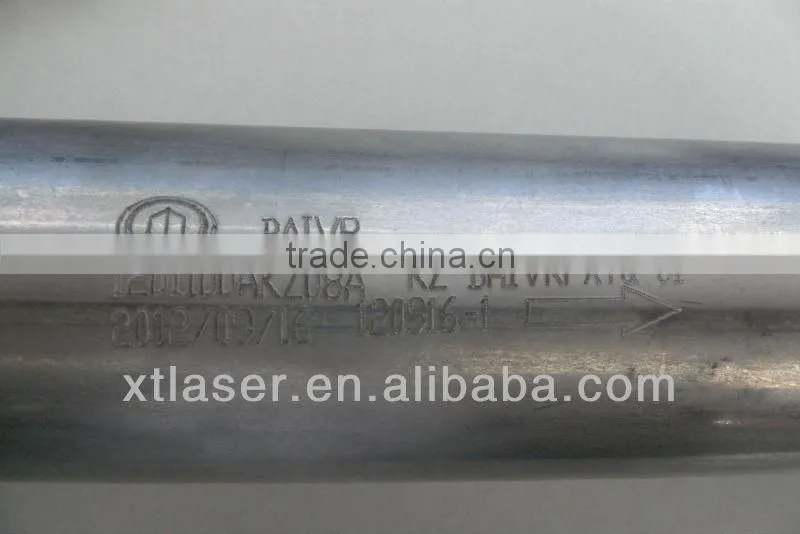

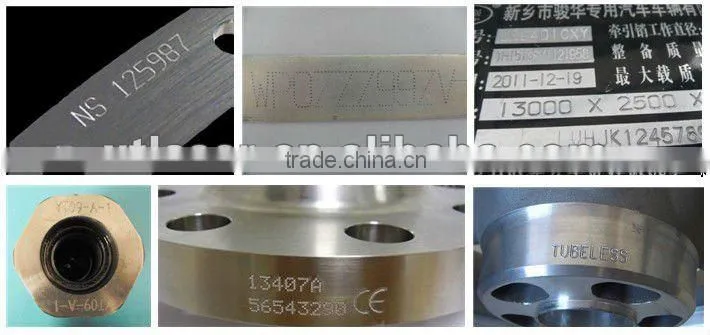

 Samples by pin marking system

Attend the exhibition

About us

Jinan XinTian Technology Co., Ltd was established in 2004, It is a professional manufacturer engaged in the research,development, production and service of Diode pumped Laser marking machine, Fiber laser marking machine,CO2 laser marking machine,Pneumatic marking machine,Laser engraving machine,Laser welding machine, Laser cutting machine and Laser trimming machine.

Certification

After-sales Service

• 1 years guarantee for product quality. (People damaged is charged).
• Lifelong maintenance and spare parts supply.
• Free design of fixtures as customers required.
• Free training for machines installation and operation of the staffs.
• Free samples marking of customer provided.
